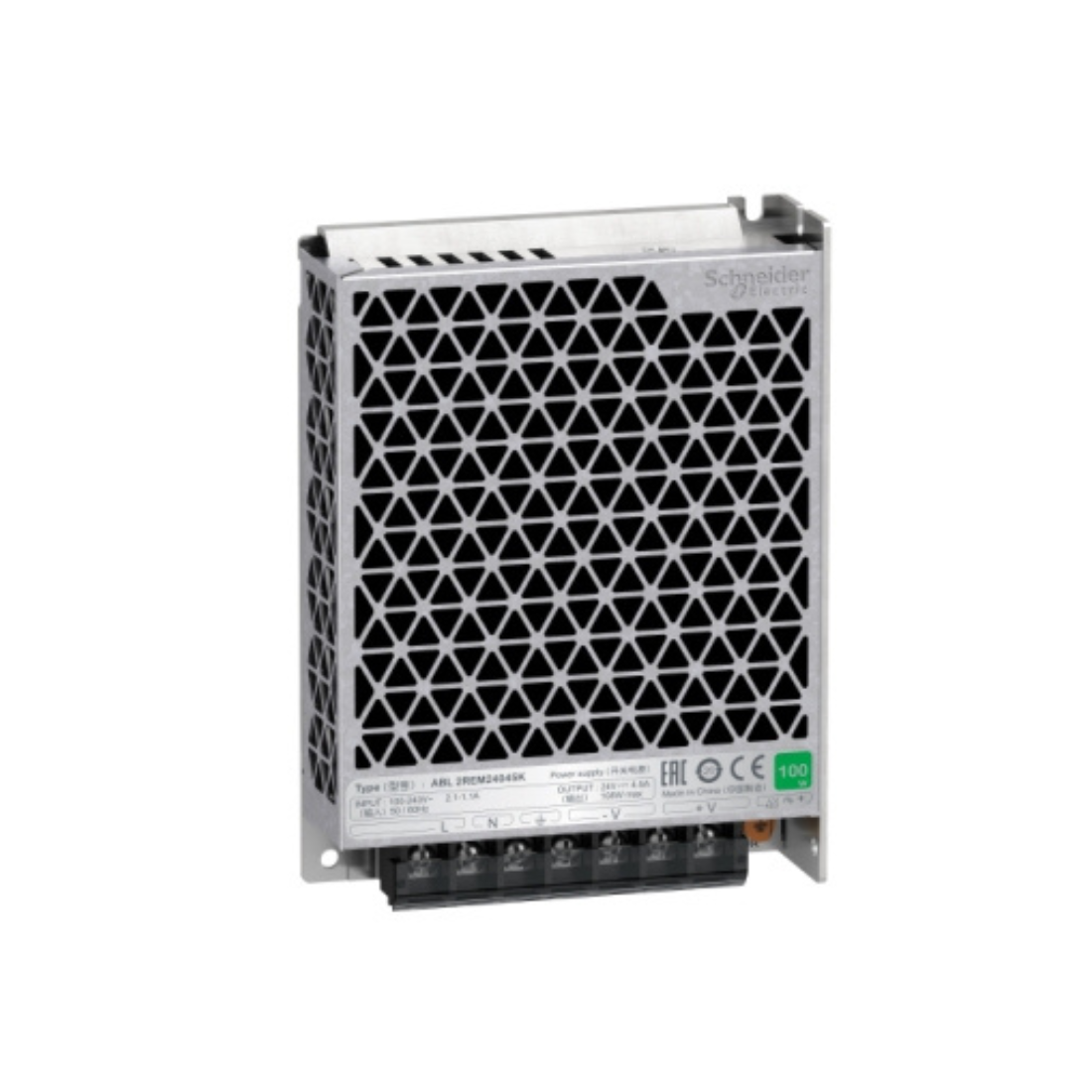

Schneider Electric Easy Modicon ABL2 Single Phase Power Supply 108W 4.5A ABL2REM24045K
Schneider Electric Easy Modicon ABL2 Single Phase Power Supply 108W 4.5A ABL2REM24045K

Schneider Electric Easy Modicon ABL2 Single Phase Power Supply 108W 4.5A ABL2REM24045K

Regular price AED 191.10
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Single Phase Power Supply
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ABL2REM24045K Single Phase Power Supply belongs to the Modicon Easy (formerly known as Phaseo Easy) range of power supplies. This is a 24V DC-regulated switching power supply, 100W model, with an output voltage of 100V to 240V AC and a nominal power of 108W. Its output current is 4.5A. It offers better performance with profitability.

    Schneider Electric ABL2REM24045K Easy Modicon ABL2 Single Phase Power Supply cooling is based on natural convection. It has automatic voltage switching. Overload protection is 110-160%. Measures 129mm wide x 97mm high x 30mm deep. This power supply is suitable for repetitive machines. ABL2 ps are certified according to CE, EAC, KC, RCM, EN62368-1 (safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 Class B, RoHS. This power supply has mounting holes for panel mounting or 4-corner bracket mounting. Better performance with profitability. Smart design.

    Features
    • 24V DC-regulated switching power supply, 100W model, with an output voltage of 100V to 240V AC and a nominal power of 108W.
    • Automatic voltage switching
    • It offers better performance with profitability.
    • Cooling is based on natural convection
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Single Phase Power Supply

    Model : ABL2REM24045K

    Country Of Manufacturing : China

    Package1 Length*Width*Height : 13.8 cm x 10.4 cm x 3.6 cm

    Connections - Terminals : For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12

    Anti-harmonic Filter : Low frequency harmonic currents

    Compatibility Code : ABL2

    Cos phi : 0.45-0.45

    Current Consumption : 1.1 A at 240 V

    Depth : 30 mm

    Dielectric Strength : 2000 V between input and ground

    Efficiency : 89 %

    Electromagnetic Compatibility : Immunity to electromagnetic interference conforming to EN 55022 class B

    Height : 87 mm

    Holding Time : >= 10 ms at 115 V

    Input Protection Type : Integrated fuse (not interchangeable)

    Input Voltage : 100...240 V AC single phase

    Input Voltage Limits : 85...264 V

    Inrush Current : 50 A at 100...240 V AC

    IP Degree Of Protection : IP20 conforming to IEC 62368-1

    Line And Load Regulation : +/- 1 %

    Marking : CE

    Range Of Product : Easy Modicon ABL2

    MTBF : 600000 h at 25 °C

    Mounting Support : DIN rail with accessory, panel mounting with accessory

    Name Of Test : Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

    Network Frequency : 47...63 Hz

    Operating Altitude : 5000 m

    Operating Position : Any position

    Output Coupling : Series

    Output Protection : Against overload, protection technology: 1.1...1.5 x In, against short-circuits, protection technology: 1.1...1.5 x In, against overvoltage, protection technology: 28.8...33.6 V

    Output Voltage : 24 V DC

    Output Voltage Limits : 20.4...27.6 V

    Overvoltage Category : Class I conforming to IEC 62368-1

    Pollution Degree : 2

    Power Dissipation in W : 13.3 W

    Power Supply Output Current : 4.5 A

    Power Supply Type : Regulated switch mode

    Certifications : EAC, IC, RoHS, KC, RCM

    Rated Power in W : 108 W

    Relative Humidity : 10-95 %

    Width : 129 mm

    Main Input Voltage : 100...240 V AC single phase

    Vibration Resistance : 4 gn (f= 10-500 Hz) conforming to EN/IEC 61131-2

    Output Protection Type : Against overload, protection technology: 1.1...1.5 x In, against short-circuits, protection technology: 1.1...1.5 x In, against overvoltage, protection technology: 28.8...33.6 V

    Status LED : 1 LED (green) output voltage

    Electric Compatibility : Immunity to electromagnetic interference conforming to EN 55022 class B

    Ambient Air Temperature For Operation : -30-70 °C (with power derating of 2.5 % per °C)

    Ambient Air Temperature For Storage : -40-85 °C

    Name Of Test : Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A

    Weight : 400 g
