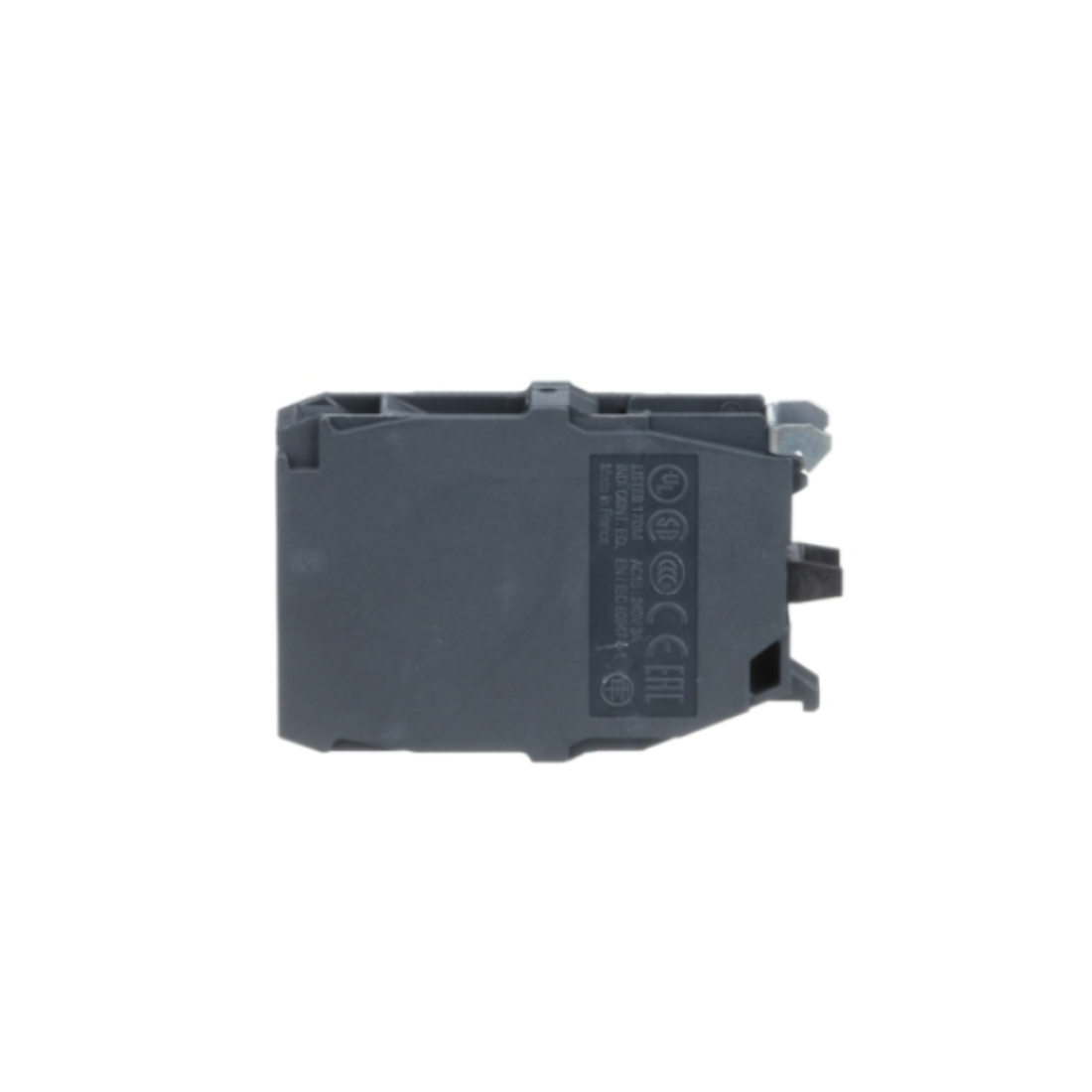

Brand : Schneider Electric
Item Name : Contact Block
Model : ZBE205
Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1
Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1
Rated Impulse Withstand Voltage : 6 kV conforming to EN 60947-1
Compatibility Code : ZBE

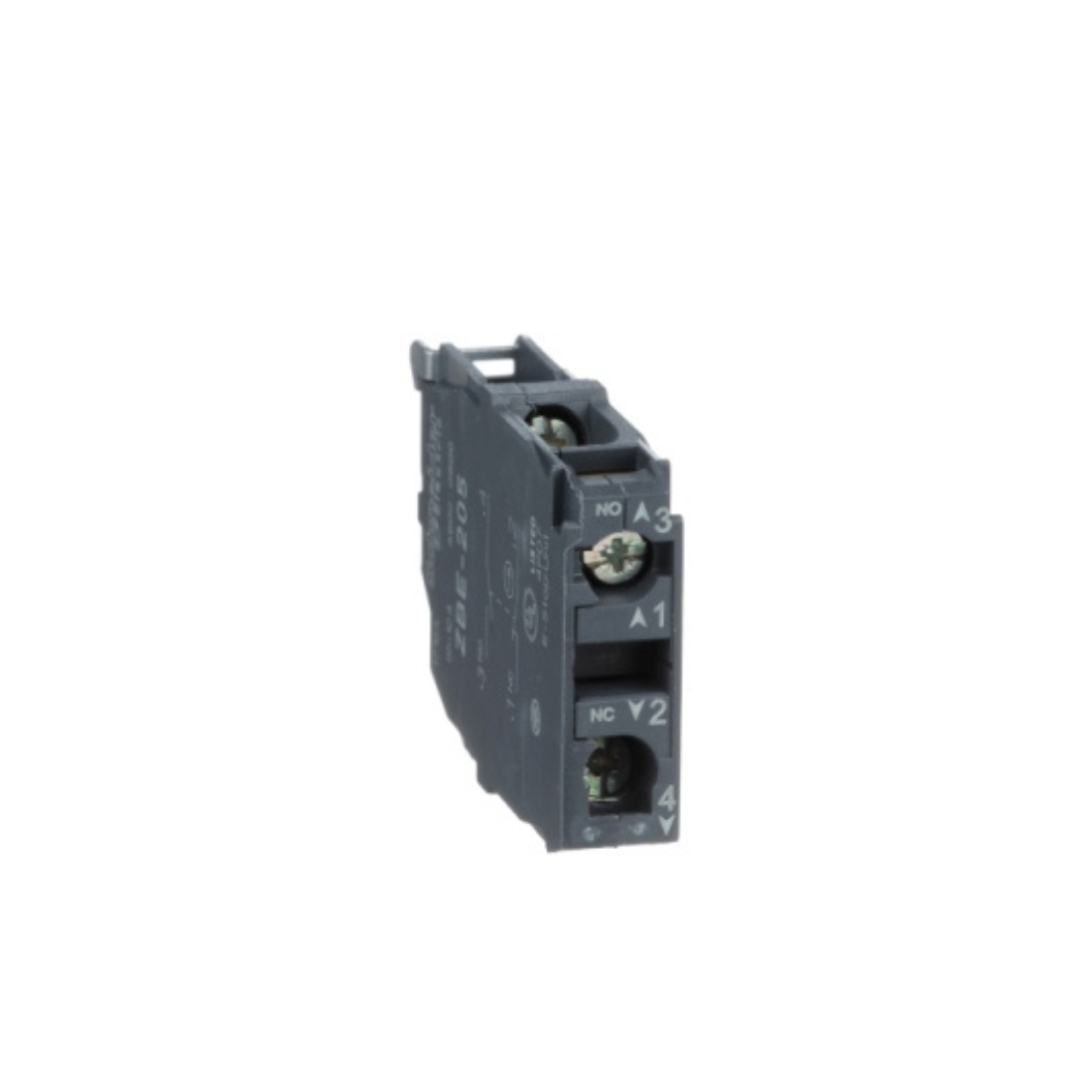

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
Contact Operation :Slow-break
Contacts Material : Silver alloy (Ag/Ni)
IP Degree Of Protection : IP20 conforming to IEC 60529
Mechanical Durability : 10000000 cycles
Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K
Certifications : DNV, CSA, LROS (Lloyds register of shipping), BV, GL, GOST, UL, CCC
Protective Treatment : TH
Range Of Product : Harmony XB4, Harmony XB5
Sale Per Indivisible Quantity : 5
Shape Of Screw Head : Cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver
Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

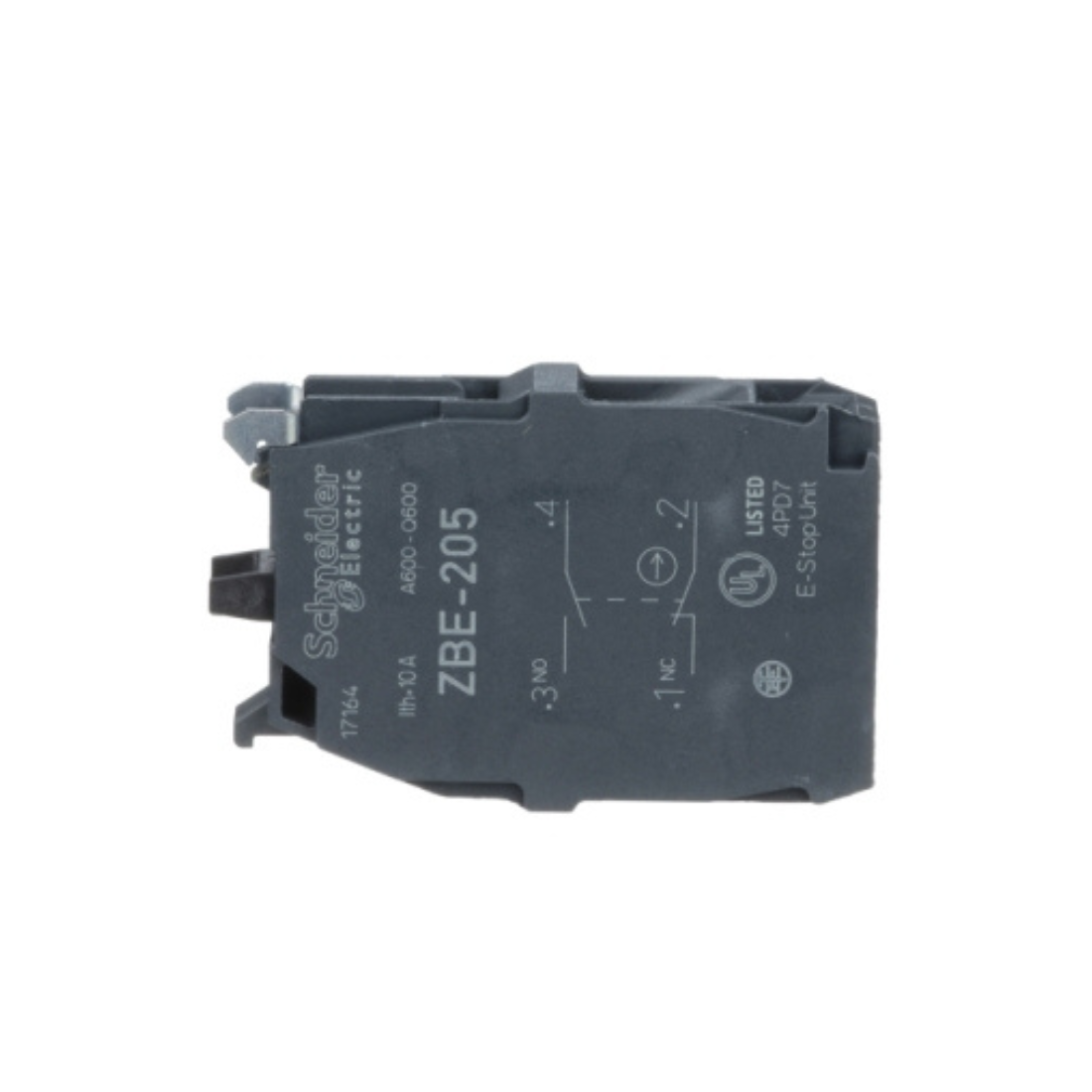

Contacts Type And Composition : 1 NO + 1 NC
Contacts Usage : Standard contacts
Operating Force : 4.6 N NC + NO changing electrical state
Operating Travel : 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)
Contact Block Type : Double
Electrical Composition Code : C2 (quantity <= 3 ), C4 (quantity <= 2 ), C6 (quantity <= 2 ), C8 (quantity <= 1 ), C10 (quantity <= 2 ), C13 (quantity <= 3 ), M2 (quantity <= 2 ), M4 (quantity <= 2 ), M8 (quantity <= 2 )
Mounting Of Block : Front mounting
Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ambient Air Temperature For Operation : -40-70 °C
Ambient Air Temperature For Storage : -40-70 °C
Standards : EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, JIS C8201-1
Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Device Presentation : Basic element
Electrical Durability : 1000000 cycles, AC-15, 1 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 1.5 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
