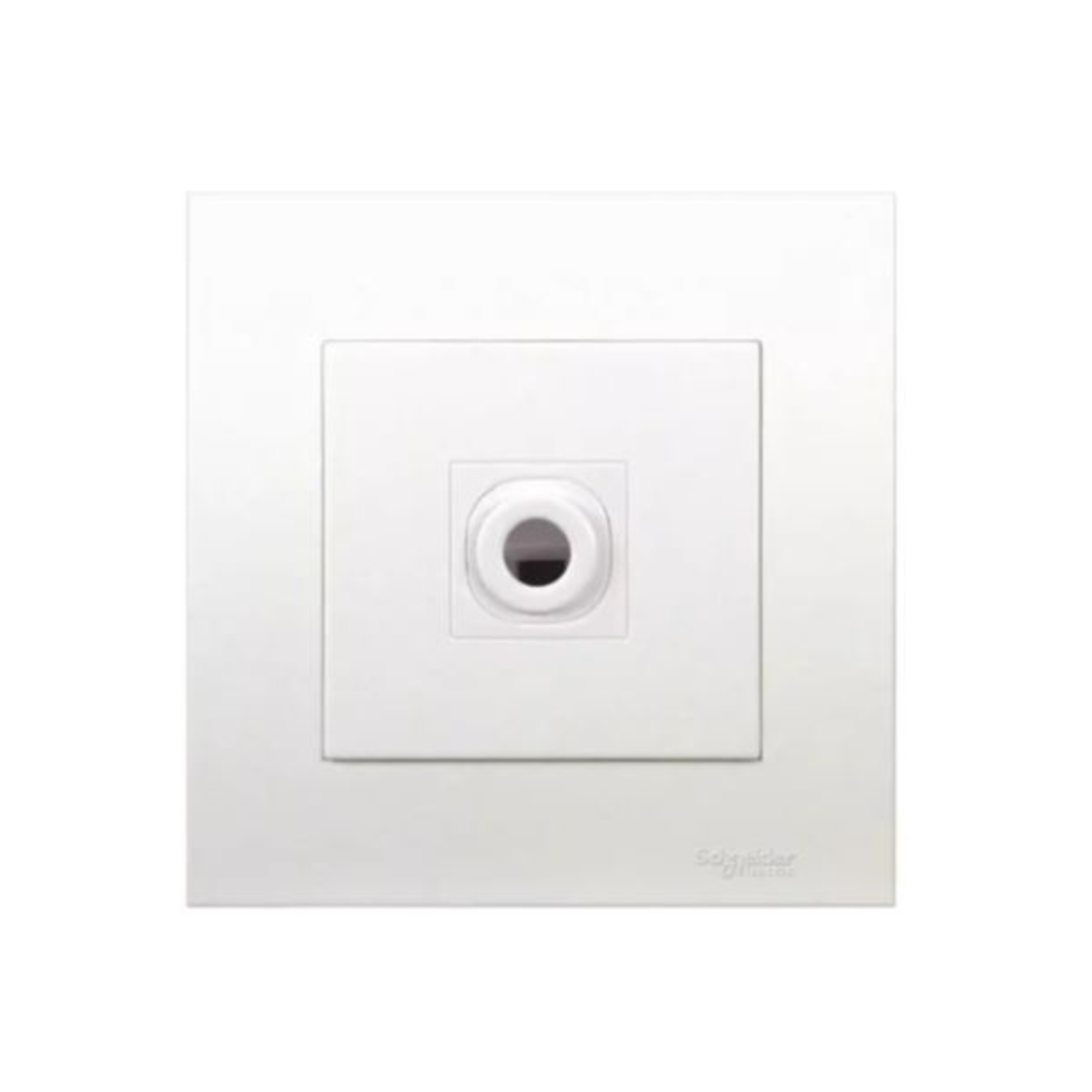

Schneider Electric Connection Unit 25A 250V KB31TB - White

Name: Schneider Electric Connection Unit 25A 250V KB31TB - White
Brand: Schneider Electric
Price: 12.5 AED
Availability: InStock

AED 12.50

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Fuse Connection Unit

Description

Schneider Electric KB31TB Connection Unit a type of electrical outlet or socket. It is commonly used in electrical engineering and refers to a device that provides a point of connection for electrical circuits. It's essentially an outlet or socket. 25A is the amperage rating of the connection unit. It can handle up to 25 amperes of electrical current. 250V is the voltage rating. It is designed to handle a maximum voltage of 250 volts. White is the color of the connection unit.

Overall, Schneider Electric KB31TB Connection Unit is an electrical outlet that can handle up to 25 amperes of current at a maximum voltage of 250 volts, and it is white in color. This type of unit might be used for various electrical appliances or devices in a residential or commercial setting.

Features

Clean, geometrically balanced design
Screwless Design
Long cycle-life
All sockets are inserted with shutter doors for safety
Thin: 8mm slim

Specifications

Brand : Schneider Electric

Item Name : Connection Unit

Model : KB31TB

Color : White

Rated Current : 25 A at 250 V AC, Resistive

Package1 Length*Width*Height : 1.000 mm x 1.000 mm x 1.000 mm

Ambient Air Temperature For Operation : -5-40 °C

Ambient Air Temperature For Storage : 0-60 °C

Clamping Connection Capacity : 4 mm², 2.5 mm²

Contacts Material : Brass And Phosphor Bronze

Depth : 35mm

Device Application : Power Supply

Device Mounting : Flush

Embedding Depth : 30 mm

Height : 87mm

Fixing Center : 60.3 mm

Fixing Mode By Screw : M3.5

IP Degree Of Protection : IP20

Mounting Support : Wall Mounted

Range : Vivace

Material : Polycarbonate: grid plate, polycarbonate: surround, polycarbonate: base

Network Frequency : 50 Hz

Operating Altitude : 0...2000 m

Projecting Depth : 8 mm

Number of Gangs : 1 Gang

relative humidity 0-95 %

Width : 87mm

Standards : BS 5733

Tightening Torque : 0.4 N.m

connections - Terminals : Pillar Terminals

Environmental Characteristic : Indoor Use

Weight : 76.230g
