Schneider Electric Connection Sub-base ABE7 for Distribution of 8 Analog Channels ABE7CPA03
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Connection Sub-base
Description

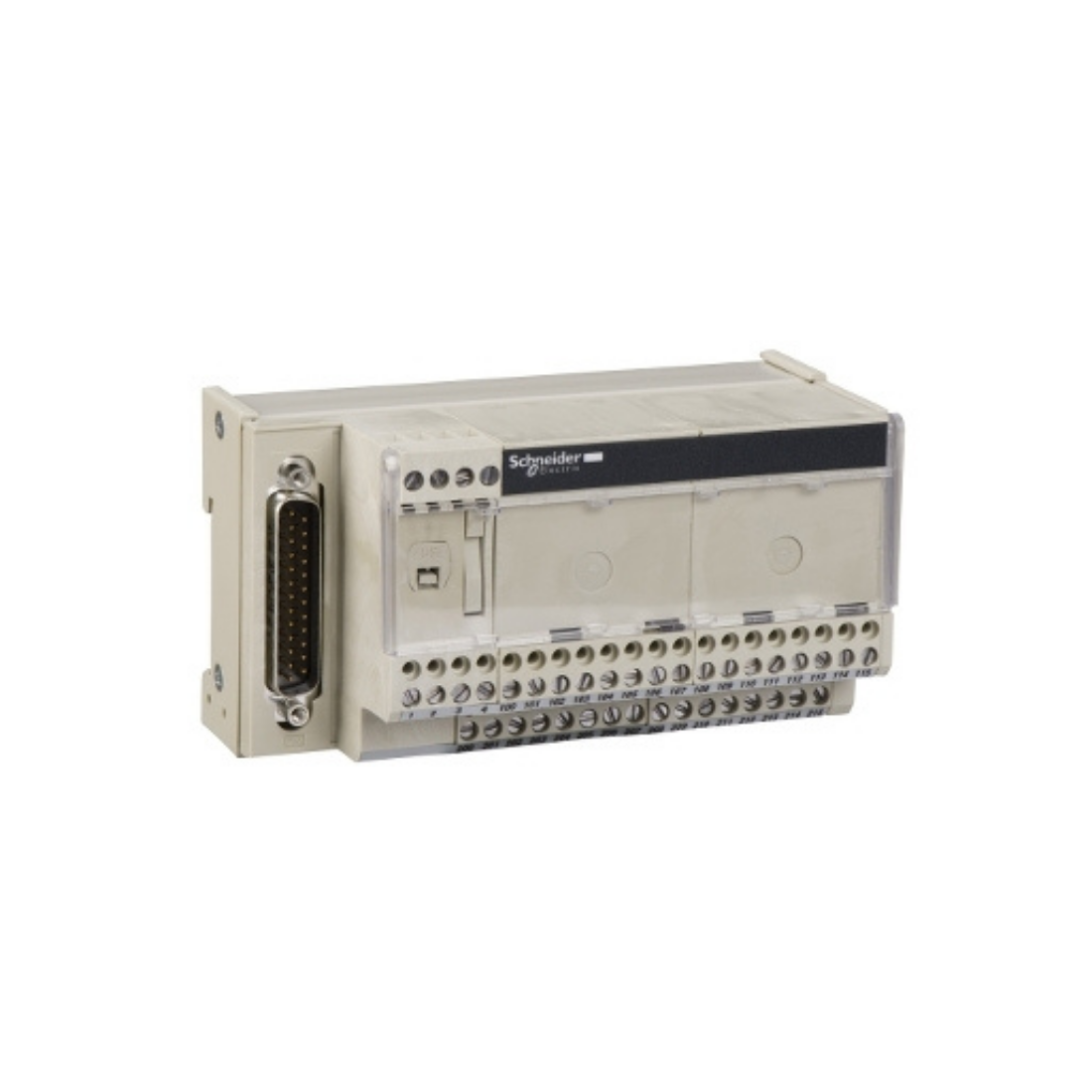

Schneider Electric ABE7CPA03 Connection Sub-base is part of the Modicon ABE7 range, a range of IP20 terminal blocks for the Telefast pre-wired system. This connection base is used to distribute 8 analog channels. It is a substructure with a control voltage of 24V DC. The distributed analog input channels are isolated from each other. It is equipped with screw terminals for electrical connection and a 25-pin SUB-D connection to programmable logic controllers (PLC). It has an IP20 certification. It is suitable for all types of industrial applications.
Connection Sub-base is certified by LROS, DNV, UL, GL, BV, and CSA. Complies with CSA C22.2, IEC 61131, and UL 508 standards. This connector base is suitable for use with the Modicon X80 BMXAM0800 IO module. Delivery is made in a single package (PCE type). Fixing can be done using clips (symmetrical 35mm DIN rail) and screws (solid plate with fixing kit).
Modicon ABE7 means easier simplification of wiring in automation system devices. A pre-wired system that allows the connection and adjustment of control signals from PLC cards with HE10 connectors.
Features
- Used to distribute 8 analog channels.
- IP20 certification
- Equipped with screw terminals for electrical connection and a 25-pin SUB-D connection to programmable logic controllers
| Brand | Schneider Electric |
| Item Name | Connection Sub-base |
| Model | ABE7CPA03 |
| Resistance To Electrostatic Discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Control Circuit Voltage | 24 V DC |
| Rated Insulation Voltage | 2000 V terminals/mounting rails |
| Ambient Air Temperature For Storage | -40-80 °C conforming to IEC 61131-2 |
| Connections - Terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Fixing Mode | By clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit) |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 2 conforming to IEC 60664-1 |
| Certifications | DNV, UL, GL, CSA |
| Protective Treatment | TC |
| Range Of Product | Modicon ABE7 |
| Shock Resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Tightening Torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Resistance To Fast Transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Function Of Module | Analogue input current, compatible with Premium, analogue input voltage, compatible with Premium, Pt 100, compatible with Premium |
| Number Of Channels | 8 |
| Resistance To Radiated Fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Installation Category | II Conforming to IEC 60664-1 |
| Resistance To Incandescent Wire | 750 °C, extinction time <30 s conforming to IEC 60695-2-11 |
| Connection to PLC | SUB-D 25 |
| Vibration Resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | 0-60 °C conforming to IEC 61131-2 |
| Standards | CSA C22.2, IEC 61131, UL 508 |
| Weight | 0.33 kg |
