Schneider Electric AvatarOn Telephone Socket E8331RJS4_GH Metal Gold Hairline in Dubai, UAE
Schneider Electric AvatarOn Telephone Socket E8331RJS4_GH Metal Gold Hairline in Dubai, UAE

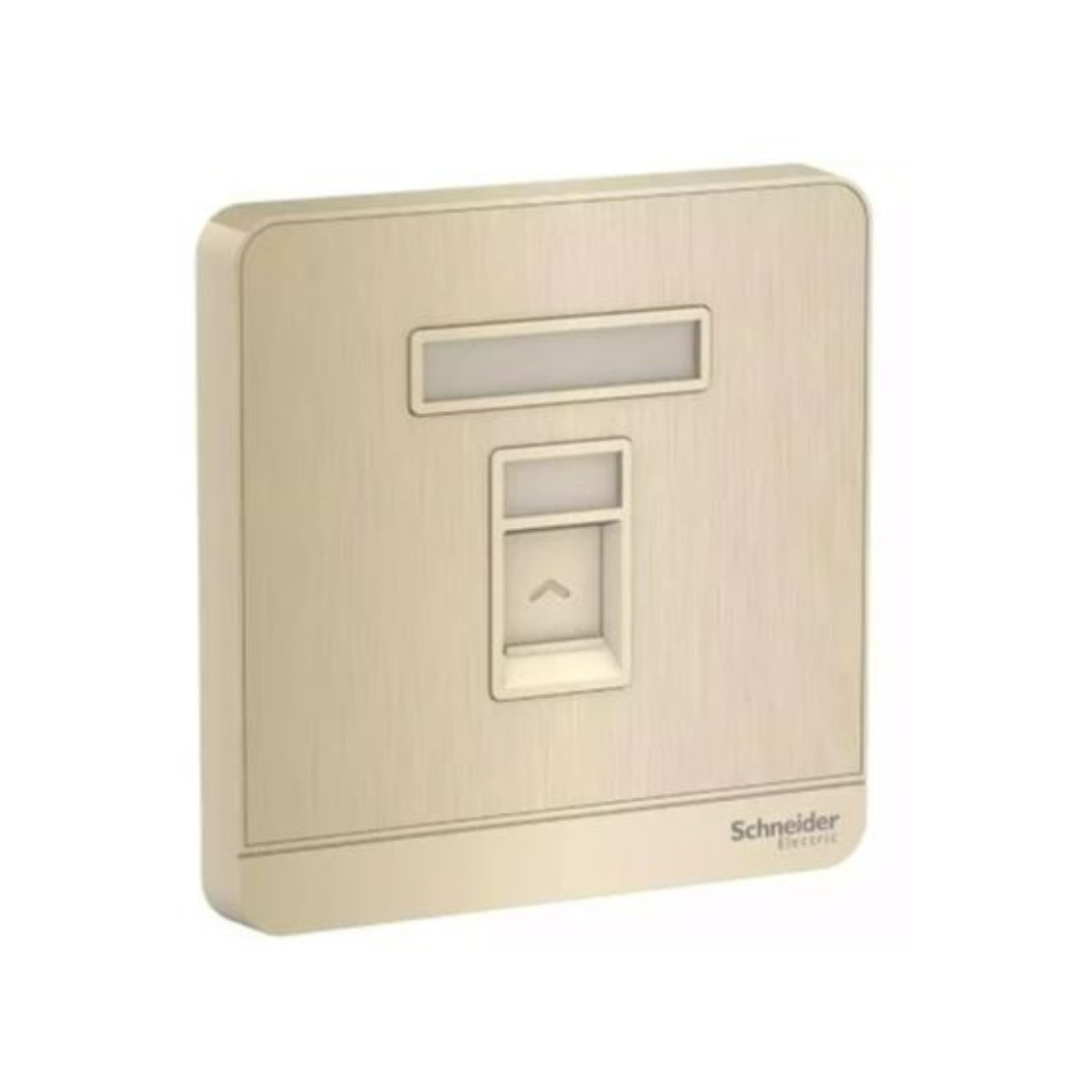

Schneider Electric AvatarOn Telephone Socket E8331RJS4_GH - Metal Gold Hairline

Regular price AED 14.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Telephone & Data Socket
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8331RJS4_GH Telephone Socket is a connector used to connect a telephone or other telecommunications device to a network. Metal Gold Hairline is the color of the socket. This suggests that the socket may have a gold-toned metallic surface with a hairline texture or finish. This finish could provide a more elegant or premium look compared to standard finishes.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Telephone Socket

    Model : E8331RJS4_GH

    Color : Metal Gold Hairline

    Rated Current : 1.5 A

    Package1 Length*Width*Height : 8.6 cm x 8.6 cm x 3.1 cm

    Awg Gauge : AWG 26...AWG 22 (4 twisted pair cables)

    Communication Network Category : Voice : 3

    Data Socket Type : RJ45

    Contacts Material : Contact: phosphor bronze with gold plating, IDC contact: phosphor bronze with nickel plating

    Contact Resistance : 1 µOhm

    Device Application : Communication

    Device Mounting : Flush, Surface

    Depth : 40.7mm

    IP Degree Of Protection : IP20

    Dielectric Strength : 1000 V for 60 s at 60 Hz

    Number Of Gangs : 1 Gang

    Height : 86mm

    Material : PC (polycarbonate): housing, polycarbonate: plastic part

    Maximum Ambient Air Temperature For Operation : 45 °C

    Minimum Return Loss : 23 dB

    Relative Humidity : 0-95 %

    Range : AvatarOn

    Socket Additional Information : Shuttered

    Standards : ASTMD4566-98, TIA/EIA-568-B.2-1

    Environmental Characteristic : No UV Resistant

    Insulation Resistance : >= 200 mOhm

    Width : 86mm

    Weight : 62.0g
