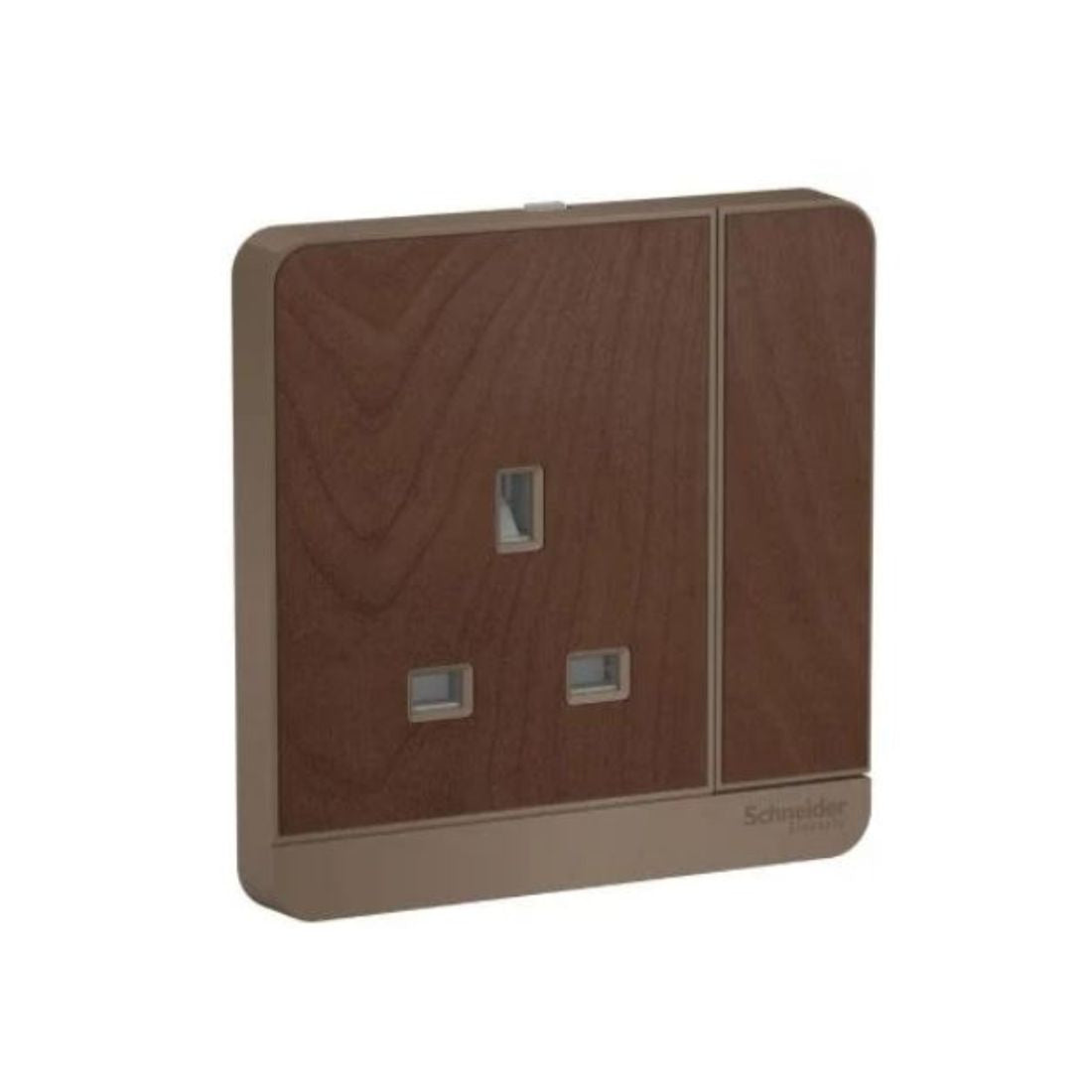

Schneider Electric AvatarOn Switched Socket 3P 13A 250V LED E8315N_WD_G12 Wood in Dubai, UAE
Schneider Electric AvatarOn Switched Socket 3P 13A 250V LED E8315N_WD_G12 Wood in Dubai, UAE

Schneider Electric AvatarOn Switched Socket 3P 13A 250V LED E8315N_WD_G12 - Wood

Regular price AED 109.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switched Socket
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8315N_WD_G12 Switched Socket is an electrical socket that has a built-in switch. It can turn the power on or off to the connected device by flipping the switch. The socket has three electrical connections or terminals. It's commonly used for three-phase electrical systems. 13A is the maximum current rating for the socket. It can handle a maximum current of 13 amperes (A).

    250V is the voltage rating of the socket, indicating it can handle voltages up to 250 volts (V). This is a standard voltage rating for household and commercial electrical systems. The presence of an LED likely indicates that there is an LED indicator built into the socket. The socket may have a wooden finish or be designed to match wooden interiors.

    Features
    • Ideally suited for new construction and refurbishment projects
    • Unique Full Flat Design
    • It has a 3-pole socket
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Switched Socket

    Model : E8315N_WD_G12

    Rated Current : 13 A Socket-Outlet

    Color : Wood

    Depth : 31.7mm

    Ambient Air Temperature For Storage : -5-60 °C

    Device Application : Power Supply

    Device Mounting : Surface

    Device Presentation : Complete Product

    Fixing Mode : Screws

    Height : 86mm

    IP Degree Of Protection : IP20

    Material : Polycarbonate : Grid Plate, Polycarbonate: Surround

    Number Of Gangs : 1 Gang

    Outlet Poles Configuration : 3P With Sutter

    Outlet Standard Description : With Earthing Contact

    Range : AvatarOn

    Pilot Light : LED

    Certifications : SIRIM

    Relative Humidity : 0-95 %

    Service Life in Cycles : 20000 Cycles

    Surface Treatment : Painted Cover Plate

    Ambient Air Temperature For Operation : -5-45 °C

    Standards : MS 589, SS 145, BS 1363

    Connections - Terminals : Screw Terminal

    Socket Number : 1

    Surface Finish : Glossy

    Width : 86 mm

    Outlet Standard Deviation : British BS 1363A
