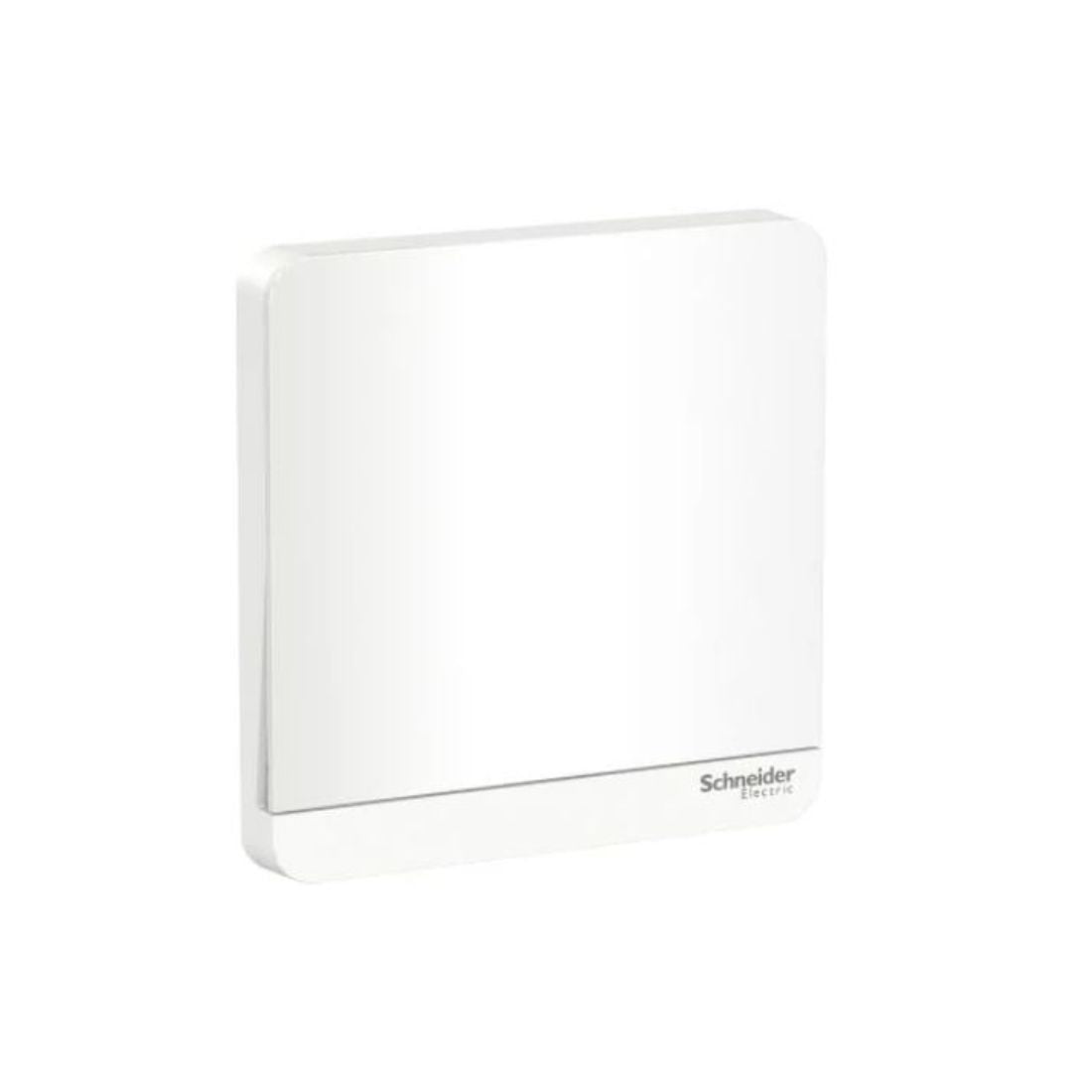

Schneider Electric AvatarOn Switch with LED 16AX 250V 2 Way 1 Gang E8331L2LED_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8331L2LED_WE 2-Way Switch is an electrical switch commonly used in building wiring. A 2-way switch is a type of electrical switch used in a two-way lighting circuit. In such a circuit, two switches control a single light fixture, to turn the light on or off from two different locations. These switches are often used in hallways or stairwells. 16AX is the current rating of the switch. It can handle a maximum current of 16 amperes (A).
250V is the voltage rating of the switch. It is designed to handle a maximum voltage of 250 volts (V). This is a common voltage rating for electrical switches used in residential and commercial applications. It has an LED light indicator. The LED may serve as a visual indicator to show whether the switch is in the on or off position. It can be helpful in locating the switch in the dark or indicating the status of the connected device.
In summary, Schneider Electric E8331L2LED_WE 2-Way Switch is an electrical switch designed for controlling electrical circuits with a maximum current of 16 amperes and a maximum voltage of 250 volts. It includes an LED indicator and has a white cover or plate. This type of switch is commonly used for lighting control in buildings.
Features
- Used in a two-way lighting circuit
- It has an LED light indicator
| Brand | Schneider Electric |
| Item Name | 2 Way Switch |
| Model | E8331L2LED_WE |
| Color | White |
| Load Type | Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Number Of Gangs | 1 Gangs |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Local Signalling | Off : Light Indicator, LED (Amber) |
| Connections - Terminals | Brass Terminal |
| Standards | BS EN 60669-1, IEC 60669-1, SS 227-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
