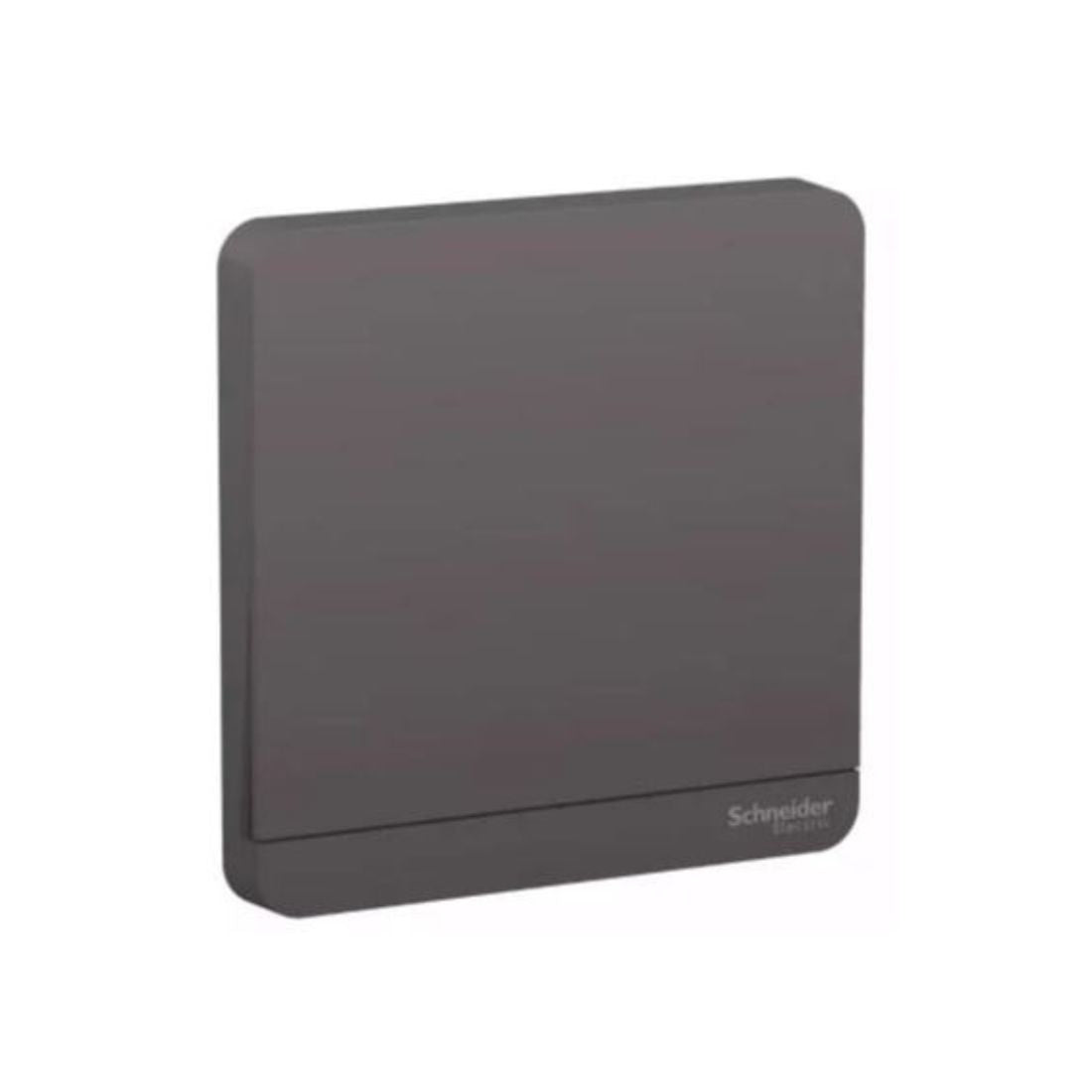

Schneider Electric AvatarOn Switch Intermediate 16AX 250V E8331M_DG - Dark Grey
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331M_DG Intermediate Switch is a type of electrical switch commonly used in lighting systems. It's used in conjunction with two other switches, typically a one-way switch and a two-way switch, to control a single light or set of lights from multiple locations.
Schneider Electric E8331M_DG Intermediate Switch is an intermediate switch, which means it's designed to be used in a three-way switch setup. 16AX is the current rating of the switch. 250V is the maximum voltage the switch is rated for. Dark Grey is the color of the switch. This type of switch is commonly used in situations that are able to control a single light or set of lights from multiple locations, such as in hallways or staircases.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8331M_DG |
| Color | Dark Grey |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.5 cm x 8.5 cm x 4.5 cm |
| Clamping Connection Capacity | 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s), 3 x 1.5 mm² for solid cable(s), 3 x 1.5 mm² for stranded cable(s) |
| Depth | 29.95 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 20.25mm |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 35 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | Intermediate |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | GB 16915.1 |
| Environmental Characteristic | UV Resistant |
| Weight | 109.0g |
