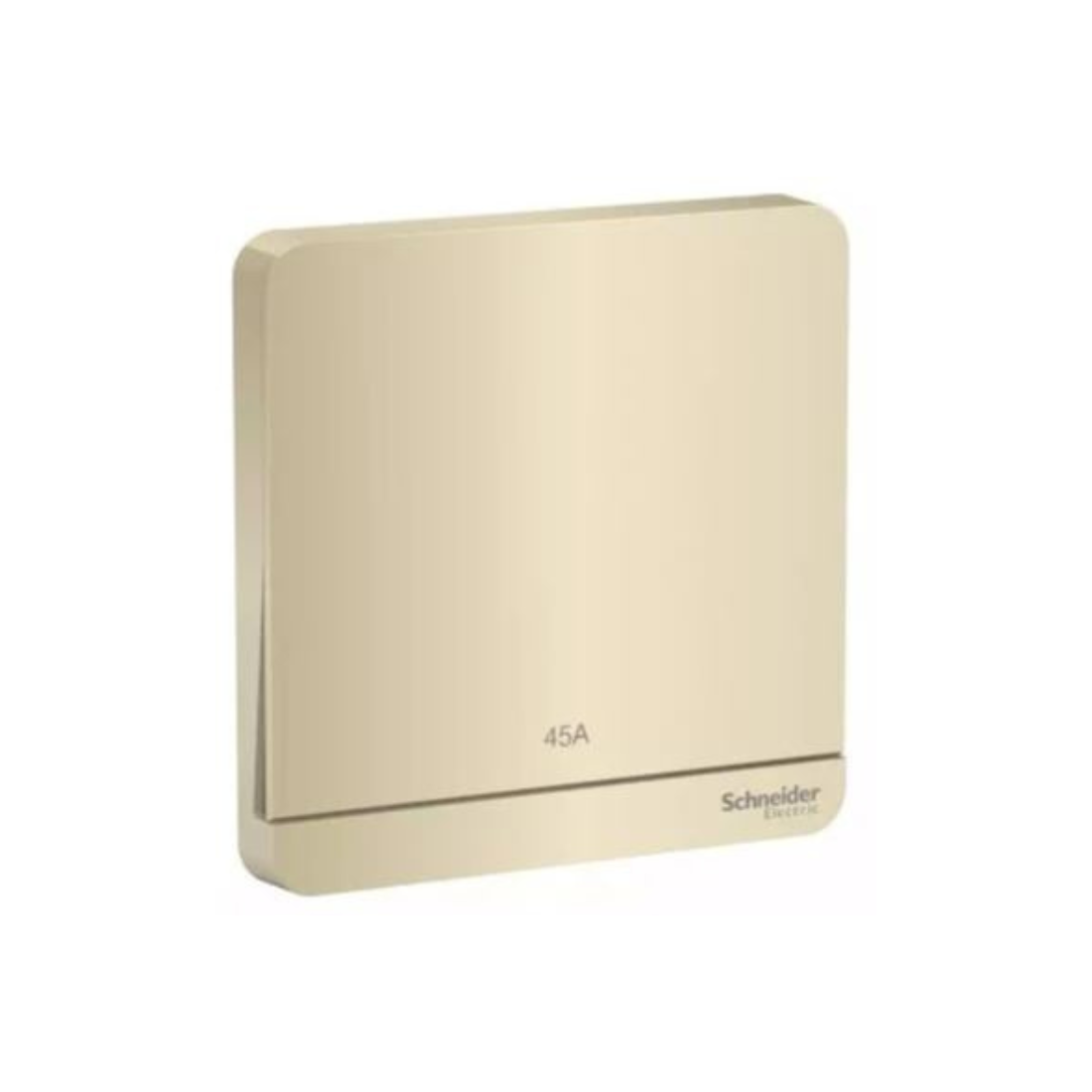

Schneider Electric AvatarOn Switch 45A 250V 2P LED E8331D45N_WG - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D45N_WG Switch is an electrical switch used to interrupt or divert the flow of electric current. 45A is the current rating of the switch. It is designed to handle a maximum current of 45 amps. 250V is the voltage rating of the switch. This means it's designed to handle a maximum voltage of 250 volts. The switch has two separate circuits that it can control. The switch has an LED indicator. This LED may indicate whether the switch is on or off. Wine Gold is the color or finish option for the switch.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D45N_WG |
| Color | Wine Gold |
| Load Type | Resistive, Fluorescent Lamps, Small Motor Load, Incandescent Lamp, Serial Boost Load (SBL) |
| Rated Current | 45 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.2 cm |
| Clamping Connection Capacity | 4 x 4 mm² for stranded cable(s), 1 x 10 mm² for stranded cable(s), 1 x 16 mm² for stranded cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | BS EN 60669-1, SS 227-1, IEC 60669-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 162.0 g |
