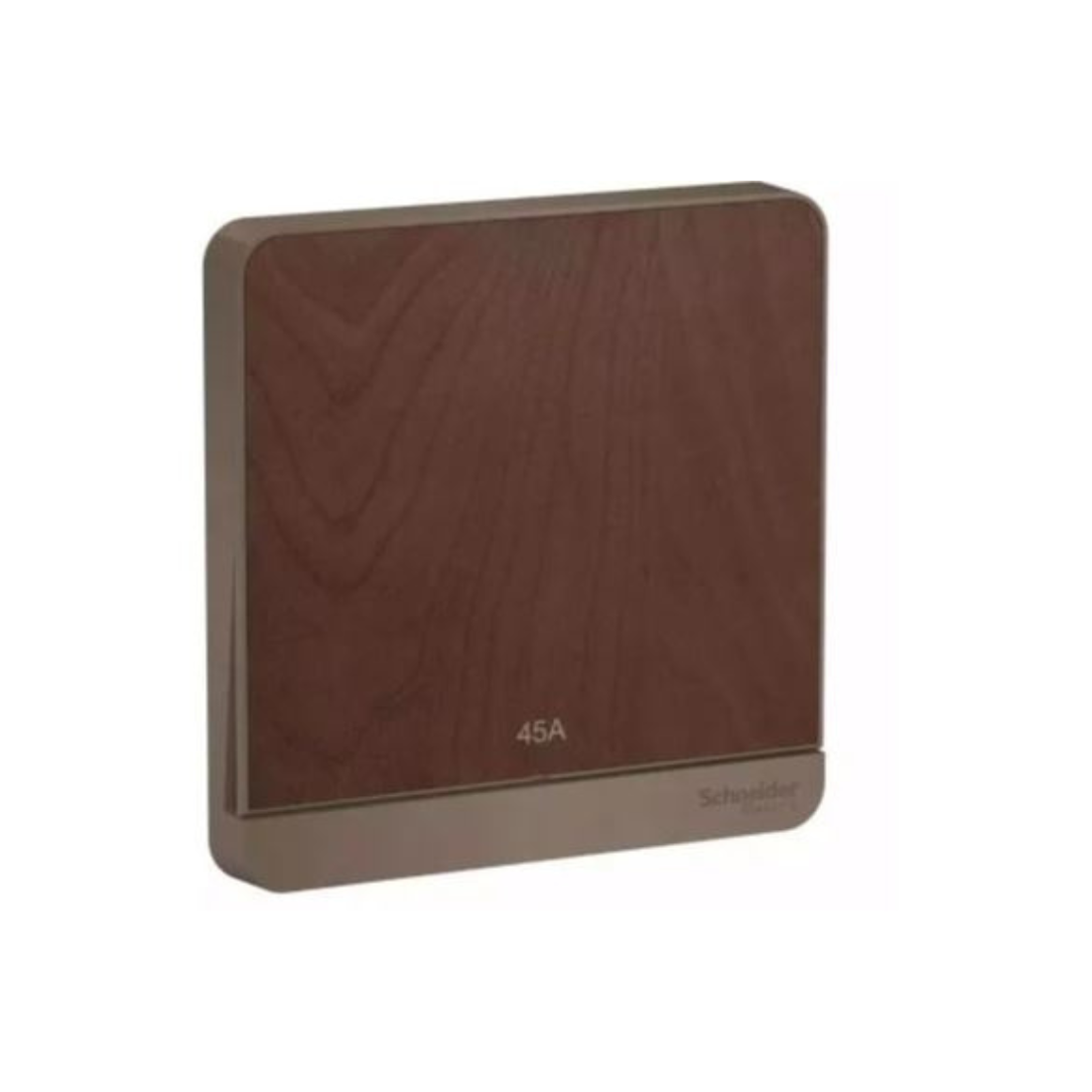

Schneider Electric AvatarOn Switch 45A 250V 2P LED E8331D45N_WD - Wood
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D20N_WD Switch is a device used to control the flow of electricity in a circuit. 45A is the rating of maximum current. This is a relatively high current rating and suggests that it might be used for heavier-duty applications. 250V is the rating of maximum voltage. This is a standard voltage for household electrical systems.
Schneider Electric E8331D45N_WD Switch is a two-pole switch. A two-pole switch can control two separate circuits or devices at the same time. It has a wooden finish. It is equipped with an LED indicator, which usually serves as a visual indicator to show whether the switch is in the on or off position.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D45N_WD |
| Color | Wood |
| Load Type | Resistive, Fluorescent Lamps, Small Motor Load, Incandescent Lamp, Serial Boost Load (SBL) |
| Rated Current | 45 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.2 cm |
| Clamping Connection Capacity | 4 x 4 mm² for stranded cable(s), 1 x 10 mm² for stranded cable(s), 1 x 16 mm² for stranded cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | SS 227-1, IEC 60669-1, BS EN 60669-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 162.0 g |
