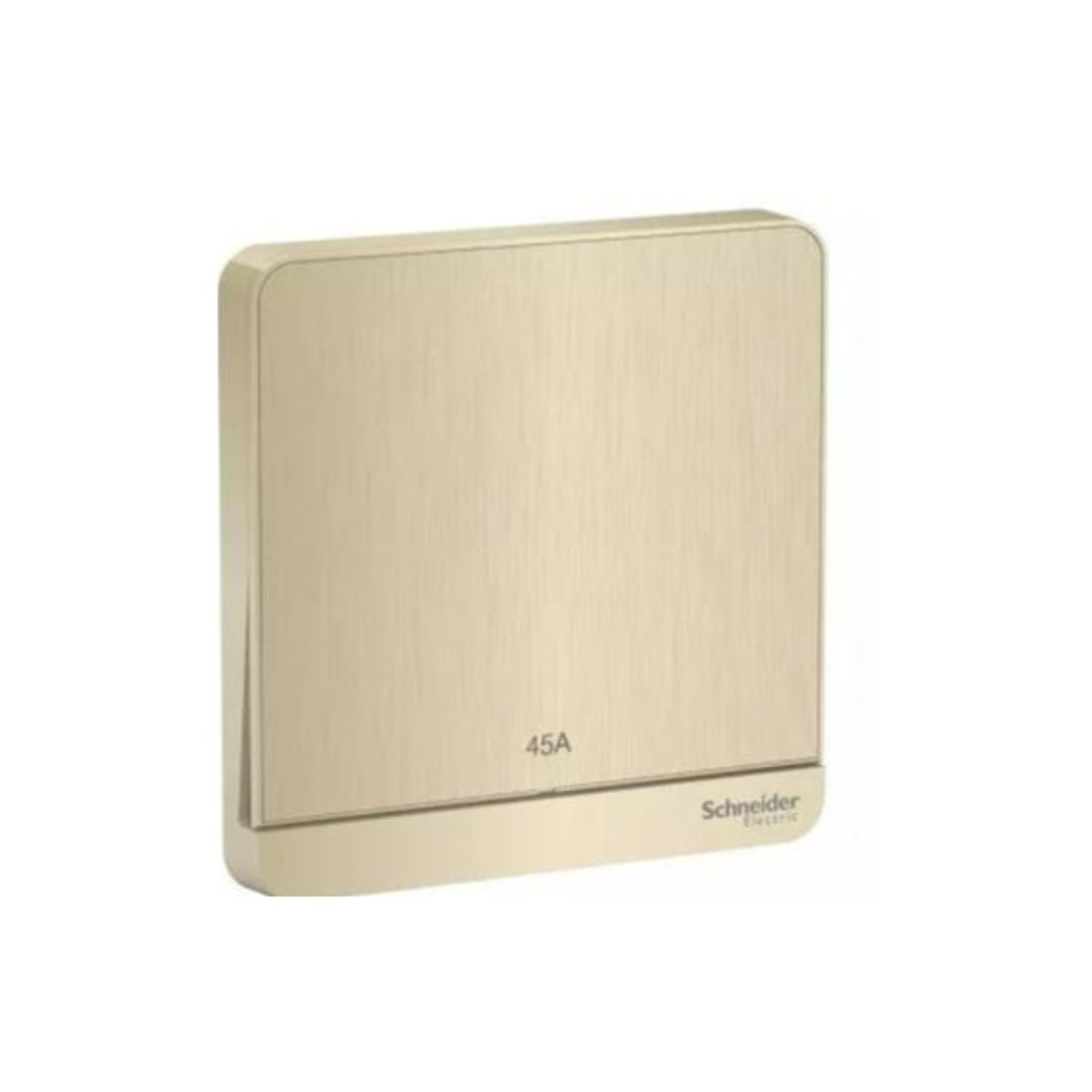

Schneider Electric AvatarOn Switch 45A 250V 2P LED E8331D45N_GH - Metal Gold Hairline
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D45N_DG Switch is an electrical device designed to interrupt the flow of current in a circuit. 45A switch can handle a maximum current of 45 Amperes. The switch is rated for a maximum voltage of 250V.
The switch has two separate circuits that it can control. This switch is equipped with an LED indicator. It has a small light that illuminates when the switch is in the ON position. This can be helpful for quickly identifying whether the switch is on or off. The switch has a Metal Gold Hairline finish.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D45N_GH |
| Color | Metal Gold Hairline |
| Load Type | Resistive, incandescent lamp, small motor load, serial boost load (SBL), fluorescent lamps |
| Rated Current | 45 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.2 cm |
| Clamping Connection Capacity | 4 x 4 mm² for stranded cable(s), 1 x 10 mm² for stranded cable(s), 1 x 16 mm² for stranded cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | SS 227-1, BS EN 60669-1, MS IEC 60669-1, IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
