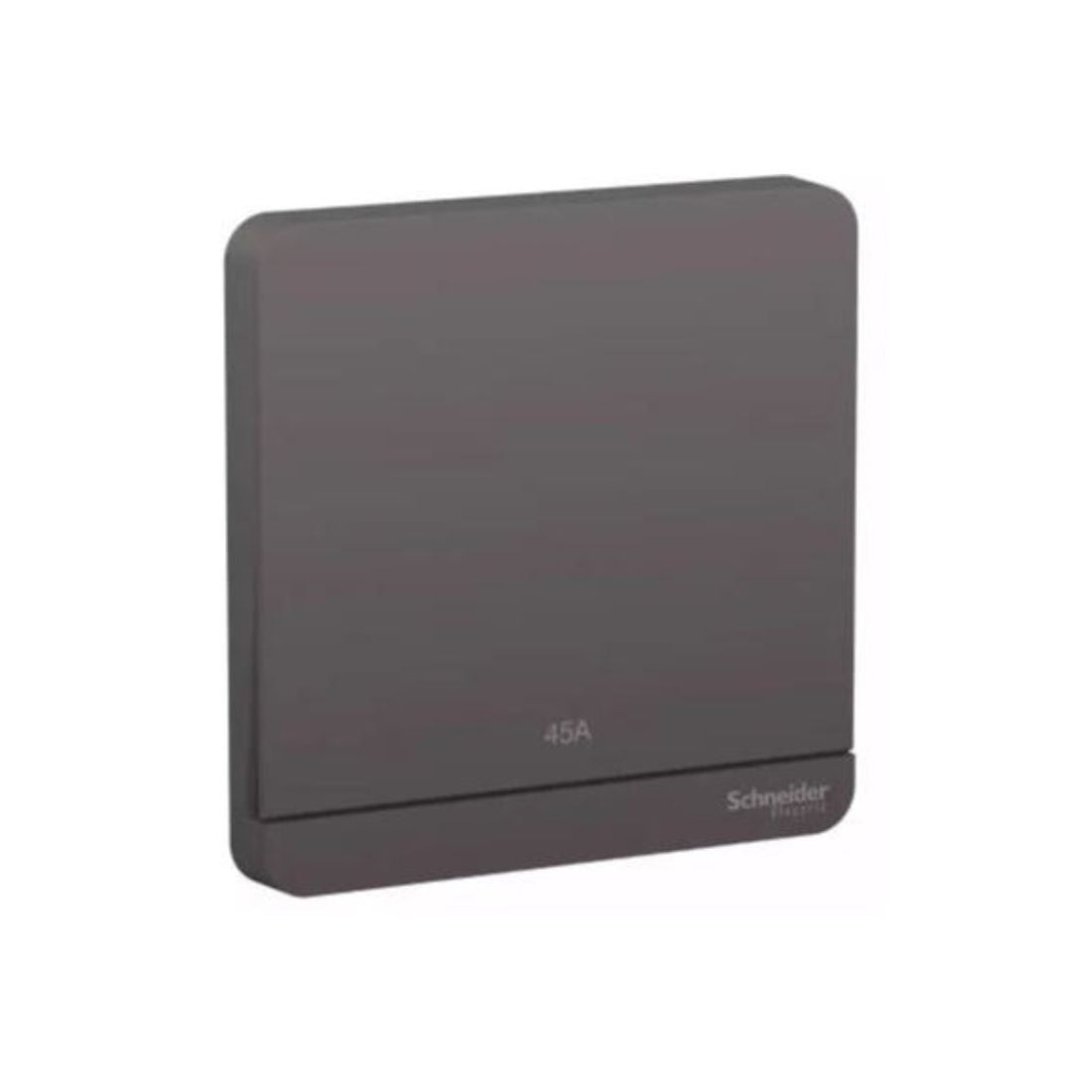

Schneider Electric AvatarOn Switch 45A 250V 2P LED E8331D45N_DG - Dark Grey
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D45N_DG Switch is an electrical device designed to interrupt the flow of current in a circuit. 45A is the amperage rating of the switch. It means that this switch is designed to handle a maximum current of 45 amperes. 250V is the voltage rating. It means that the switch is rated to work with a maximum voltage of 250 volts.
A pole in a switch refers to the number of separate circuits that can be controlled by a single switch. A 2-pole switch can control two separate circuits. The switch includes an LED light, which can be used to indicate the status of the switch (on or off).
Schneider Electric E8331D45N_DG Switch is a 2-pole switch with a maximum current rating of 45A and a maximum voltage rating of 250V. It includes an LED light and is finished in a dark grey color. This type of switch might be used in applications where higher amperage and voltage are required, such as in industrial settings or for specific types of equipment.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D45N_DG |
| Color | Dark Grey |
| Load Type | Resistive, incandescent lamp, small motor load, serial boost load (SBL), fluorescent lamps |
| Rated Current | 45 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.5 cm x 8.5 cm x 3.2 cm |
| Clamping Connection Capacity | 4 x 4 mm² for stranded cable(s), 1 x 10 mm² for stranded cable(s), 1 x 16 mm² for stranded cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, BS EN 60669-1, IEC 60669-1, SS 227-1 |
| Environmental Characteristic | UV Resistant |
