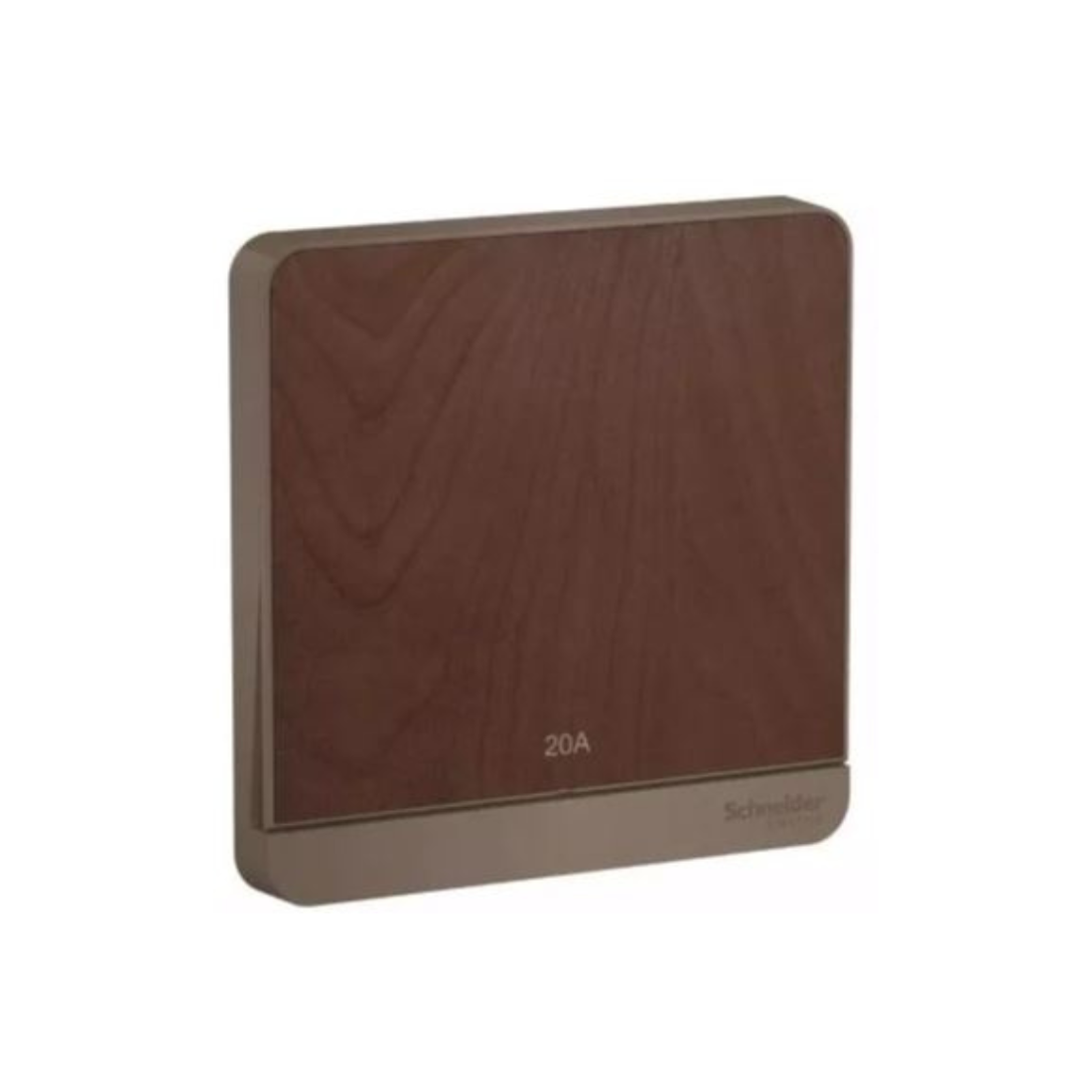

Schneider Electric AvatarOn Switch 20A 250V 2P LED E8331D20N_WD - Wood
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D20N_WD Switch is a device used to make or break an electrical circuit. It's used to control the flow of electricity in a circuit. 20A is the amperage rating of the switch. It means that the switch is designed to handle a maximum current of 20 amperes. 250V is the voltage rating of the switch. It means that the switch is designed to handle a maximum voltage of 250 volts.
A 2-pole switch has two sets of contacts that open or close together. This is often used for controlling a single circuit. The switch has a Light Emitting Diode (LED) indicator. The LED provides visual feedback about the status of the switch (whether it's on or off). Wood is the color of the switch plate or housing.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D20N_WD |
| Color | Wood |
| Load Type | Resistive, Fluorescent Lamps, Small Motor Load, Incandescent Lamp, Serial Boost Load (SBL) |
| Rated Current | 20 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.2 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | BS EN 60669-1, SS 227-1, MS IEC 60669-1, IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
