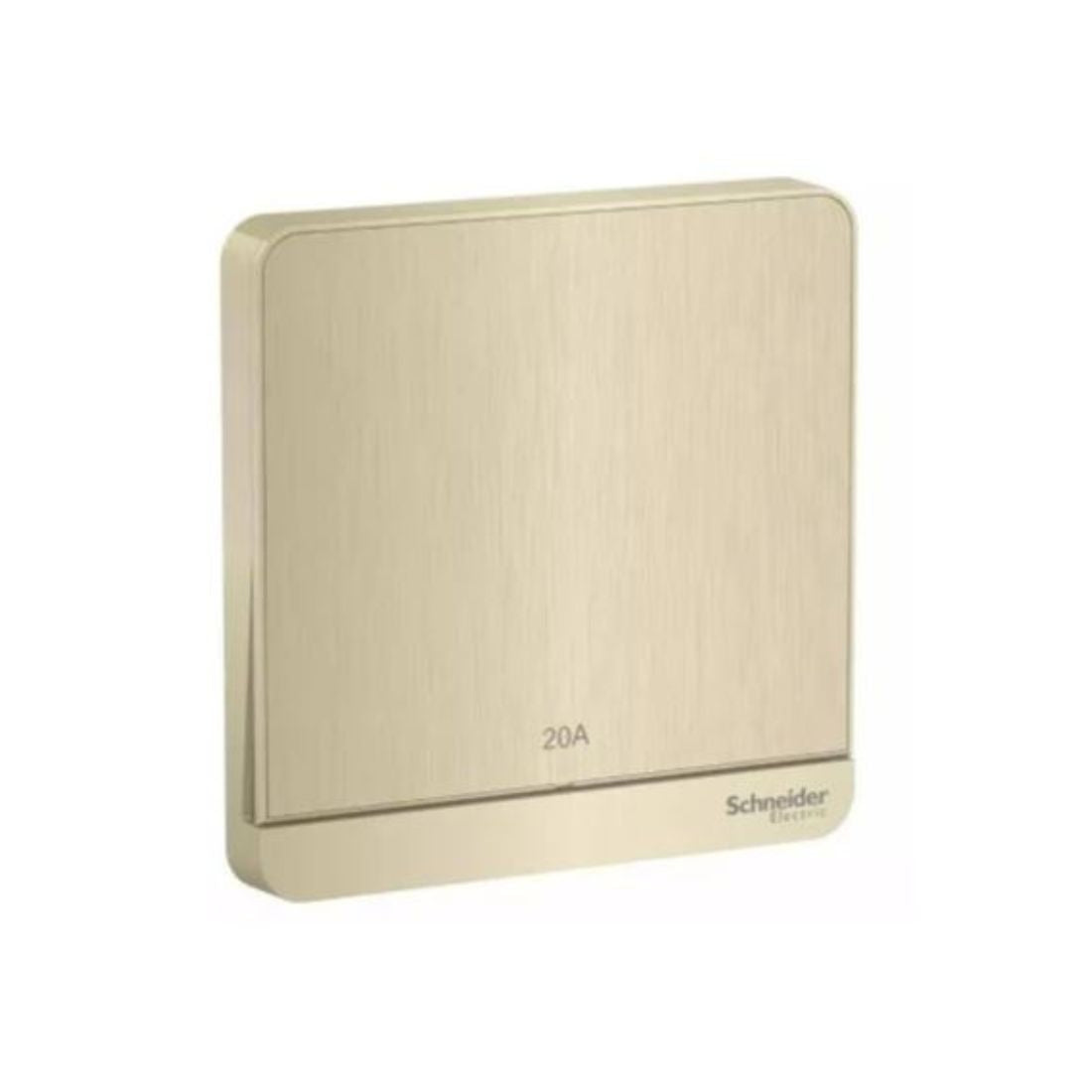

Schneider Electric AvatarOn Switch, 20A, 250V, 2P, LED E8331D20N_GH - Metal Gold Hairline
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D20N_GH Switch is a device used to make or break an electrical circuit. It can be either a physical toggle or a button-like device. 20A is the current rating of the switch, which is 20 amperes. It means that the switch can handle a maximum current of 20 amps without becoming damaged.
250V is the voltage rating of the switch, which is 250 volts. It signifies the maximum voltage the switch can handle safely. A 2-pole switch has two separate circuits that can be controlled by the switch independently. It can control two separate wires or conductors. The switch has an integrated Light Emitting Diode. This LED is likely an indicator, showing whether the switch is in the ON or OFF position.
In summary, the Schneider Electric E8331D20N_GH Switch is a 20 amp, 250 volt, 2-pole switch with an integrated LED indicator, and it has a metal gold hairline finish for its appearance. This switch would likely be used in electrical installations where these specifications are appropriate.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D20N_GH |
| Color | Metal Gold Hairline |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 20 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.2 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, SS 227-1, BS EN 60669-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
