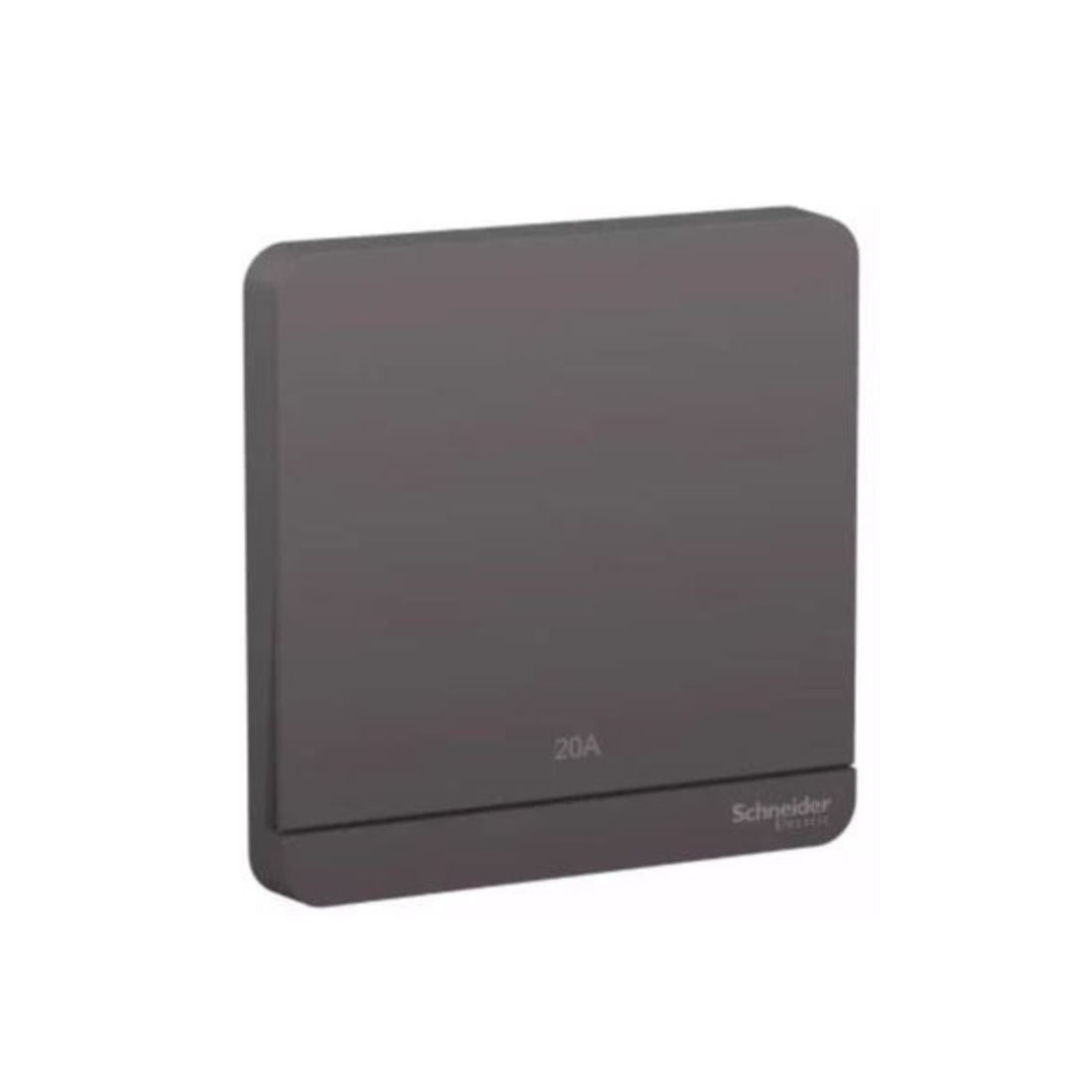

Schneider Electric AvatarOn Switch 20A 250V 2P LED E8331D20N_DG - Dark Grey
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331D20N_DG Switch is an electrical device designed to interrupt the current flow in a circuit. 20A is the amperage rating of the switch, which means it can handle a maximum current of 20 amperes. 250V is the voltage rating of the switch, indicating that it is designed to handle a maximum voltage of 250 volts.
A pole in a switch refers to a set of contacts that open or close simultaneously. A switch with 2 poles means it has two sets of contacts that operate together. The switch has an LED indicator. This could be used to show whether the switch is in the on or off position. Dark Grey is the color of the switch, indicating that it is a shade of gray, likely on the darker end of the spectrum.
Schneider Electric E8331D20N_DG Switch is suitable for applications where a 20A, 250V rating is required, and it includes an LED indicator. The dark grey color might be chosen for aesthetic or functional reasons.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331D20N_DG |
| Color | Dark Grey |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 20 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.2 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for stranded cable(s), 1 x 4 mm² for stranded cable(s), 1 x 6 mm² for stranded cable(s) |
| Depth | 32mm |
| Device Application | Control |
| Device Mounting | Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 2-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | SS 227-1, BS EN 60669-1, IEC 60669-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 117.0 g |
