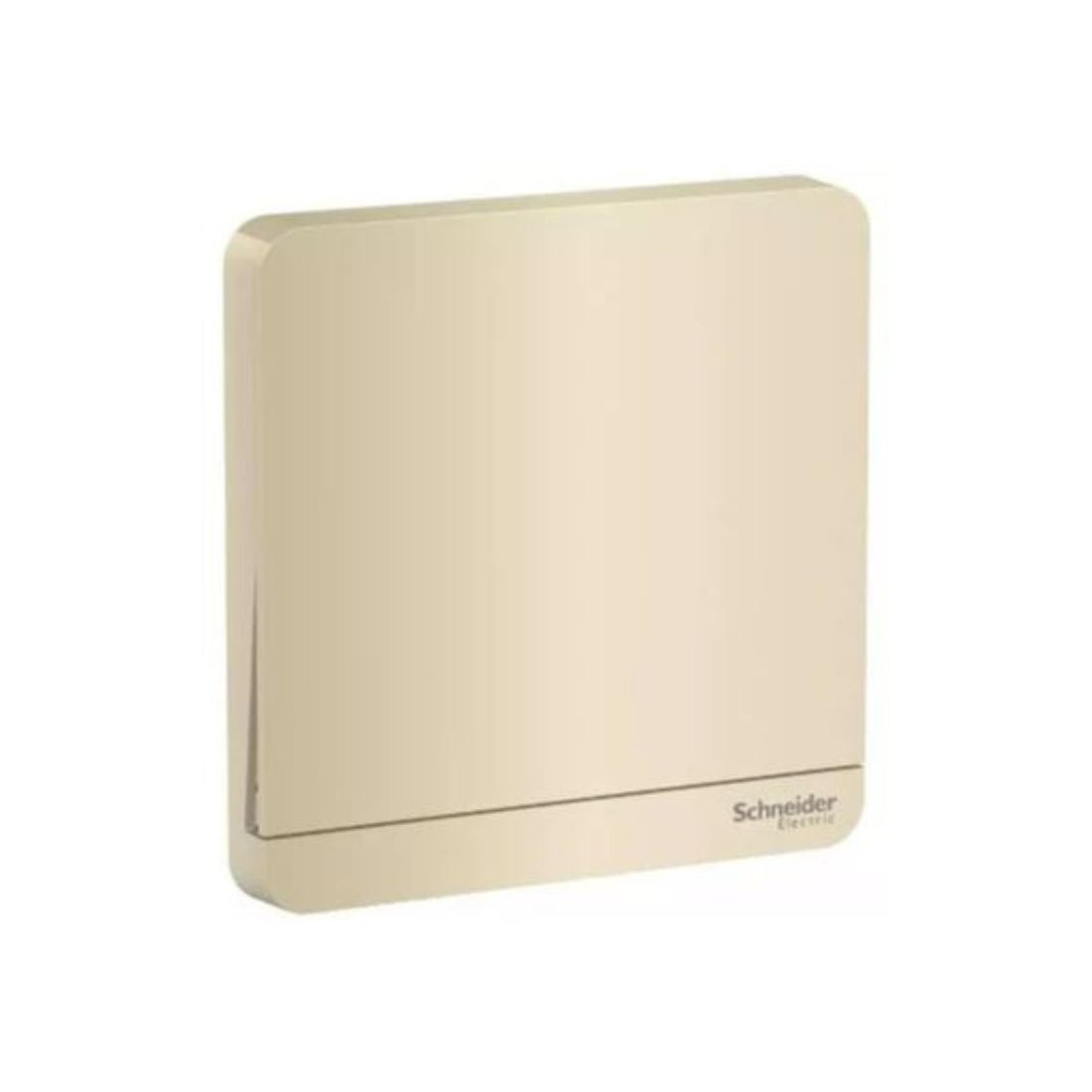

Schneider Electric AvatarOn Switch 16AX 250V Intermediate E8331M_WG - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331M_WG Intermediate Switch is a type of light switch commonly used in a three-way lighting circuit. It controls a single light fixture from multiple locations. 16AX is the current rating of the switch. 250V is the maximum voltage that the switch is rated for. Wine Gold is the color of the switch.
Schneider Electric E8331M_WG Intermediate Switch is typically used in homes and commercial buildings to control a single light fixture from multiple locations, such as at the top and bottom of a staircase.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8331M_WG |
| Color | Wine Gold |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.0 cm |
| Clamping Connection Capacity | 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s), 3 x 1.5 mm² for solid cable(s), 3 x 1.5 mm² for stranded cable(s) |
| Depth | 29.95 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 20.25mm |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 35 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | Intermediate |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | GB 16915.1 |
| Environmental Characteristic | UV Resistant |
