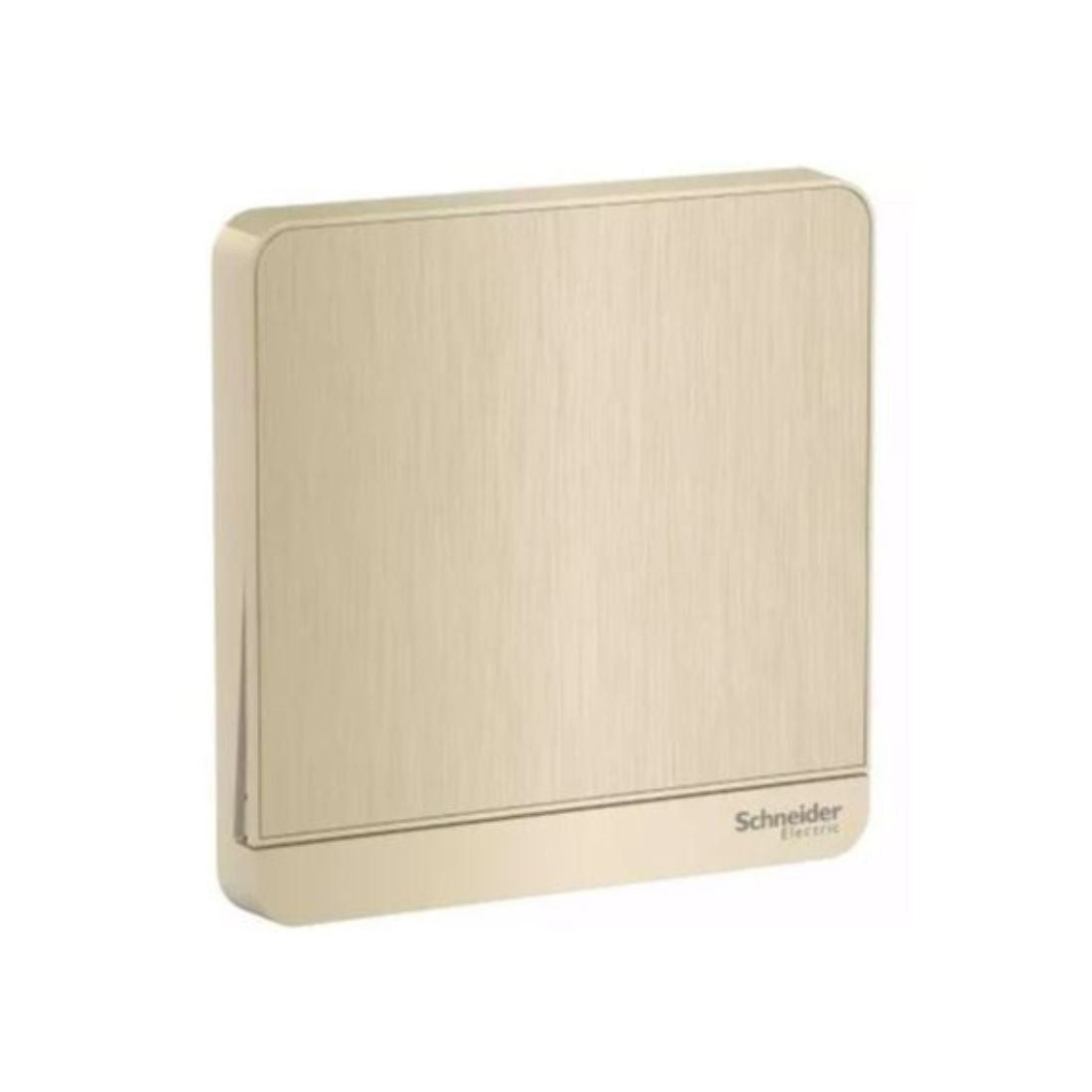

Schneider Electric AvatarOn Switch 16AX 250V Intermediate E8331M_GH - Metal Gold Hairline
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331M_GH Intermediate Switch is a type of electrical switch used in conjunction with two-way switches to control a light or a group of lights from multiple locations. It turns the lights on or off from three or more different places. 16AX is a rating for the switch. It is the maximum current the switch is designed to handle. 250V is the voltage rating, which is the maximum voltage the switch is designed to handle safely.
In summary, the Schneider Electric E8331M_GH Intermediate Switch is designed to handle up to 16 Amperes of current at voltages up to 250V. It has a distinctive gold-colored finish with a textured surface, likely made from metal. This type of switch is commonly used in electrical installations to control a single light or a set of lights from three or more different locations.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8331M_GH |
| Color | Metal Gold Hairline |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.0 cm |
| Clamping Connection Capacity | 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s), 3 x 1.5 mm² for solid cable(s), 3 x 1.5 mm² for stranded cable(s) |
| Depth | 29.95 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 20.25mm |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Local Signalling On | LED Indicator, LED (amber) |
| Maximum Ambient Air Temperature for Operation | 35 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | Intermediate |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | GB 16915.1 |
| Environmental Characteristic | UV Resistant |
| Weight | 109.0g |
