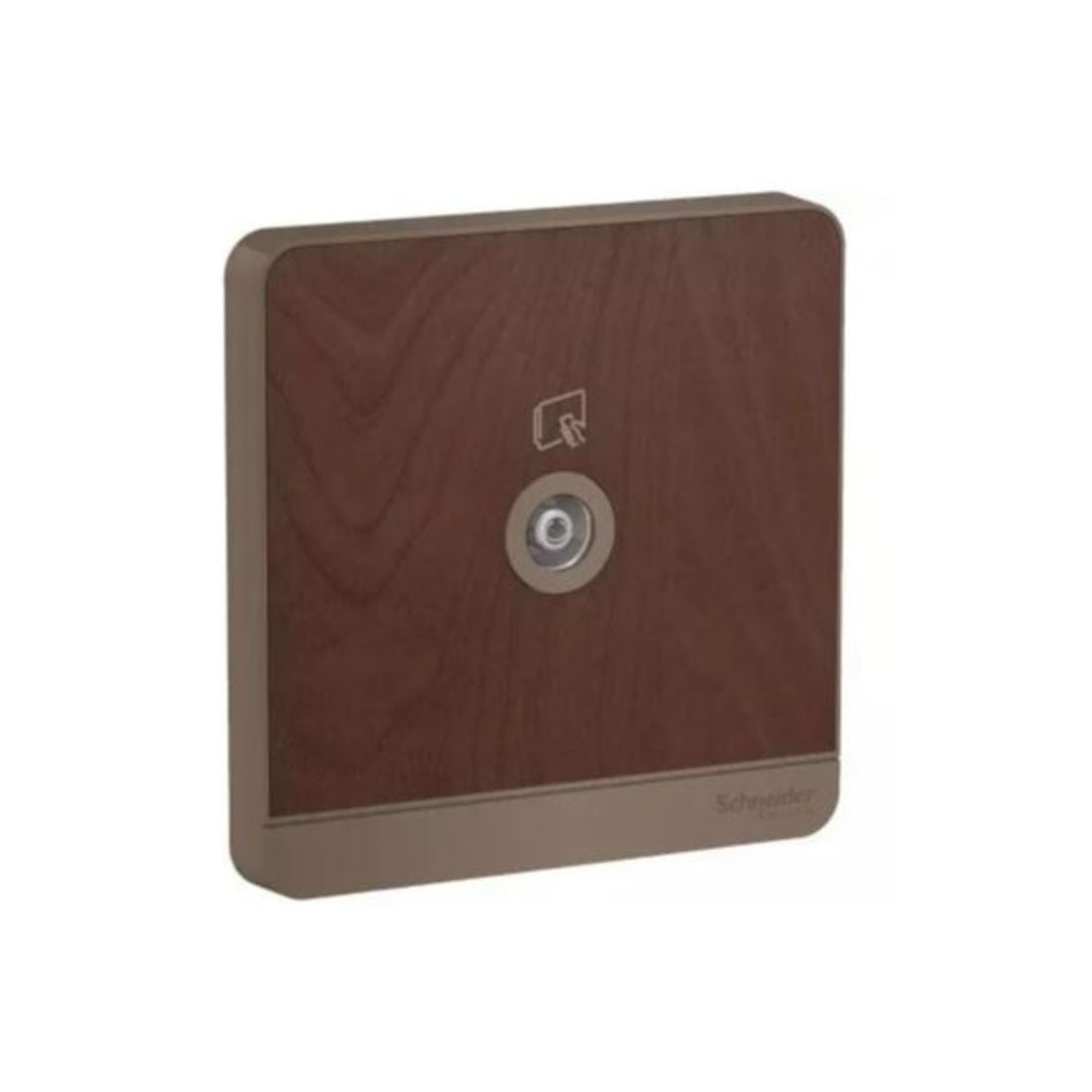

Schneider Electric AvatarOn Socket TV 75Ohm E8331TV_WD - Wood
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : TV/FM Socket
Description
Schneider Electric E8331TV_WD TV Socket is a connector used to connect a television to an antenna or a cable network. It allows the TV to receive signals for broadcasting. 75 Ohm is the impedance of the cable or connection. It is a standard impedance for coaxial cables used for transmitting signals. It's important to match the impedance of cables and connectors to ensure minimal signal loss. TV Socket has a Wooden color.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | TV Socket |
| Model | E8331TV_WD |
| Color | Wood |
| Average Impedance | 75 Ohm |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 2.6 cm |
| Average Impedance | 75Ohm |
| Bandwidth | 5-860 MHz |
| Depth | 26mm |
| Device Application | Communication |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| IP Degree Of Protection | IP20 |
| Number Of Gangs | 1 Gang |
| Material | Polycarbonate: Surround, Polycarbonate: Grid Plate |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Width | 86mm |
| Ambient Air Temperature For Operation | -5-45 °C |
| Standards | BS 5733, IEC 60670 |
| Weight | 58.0g |
