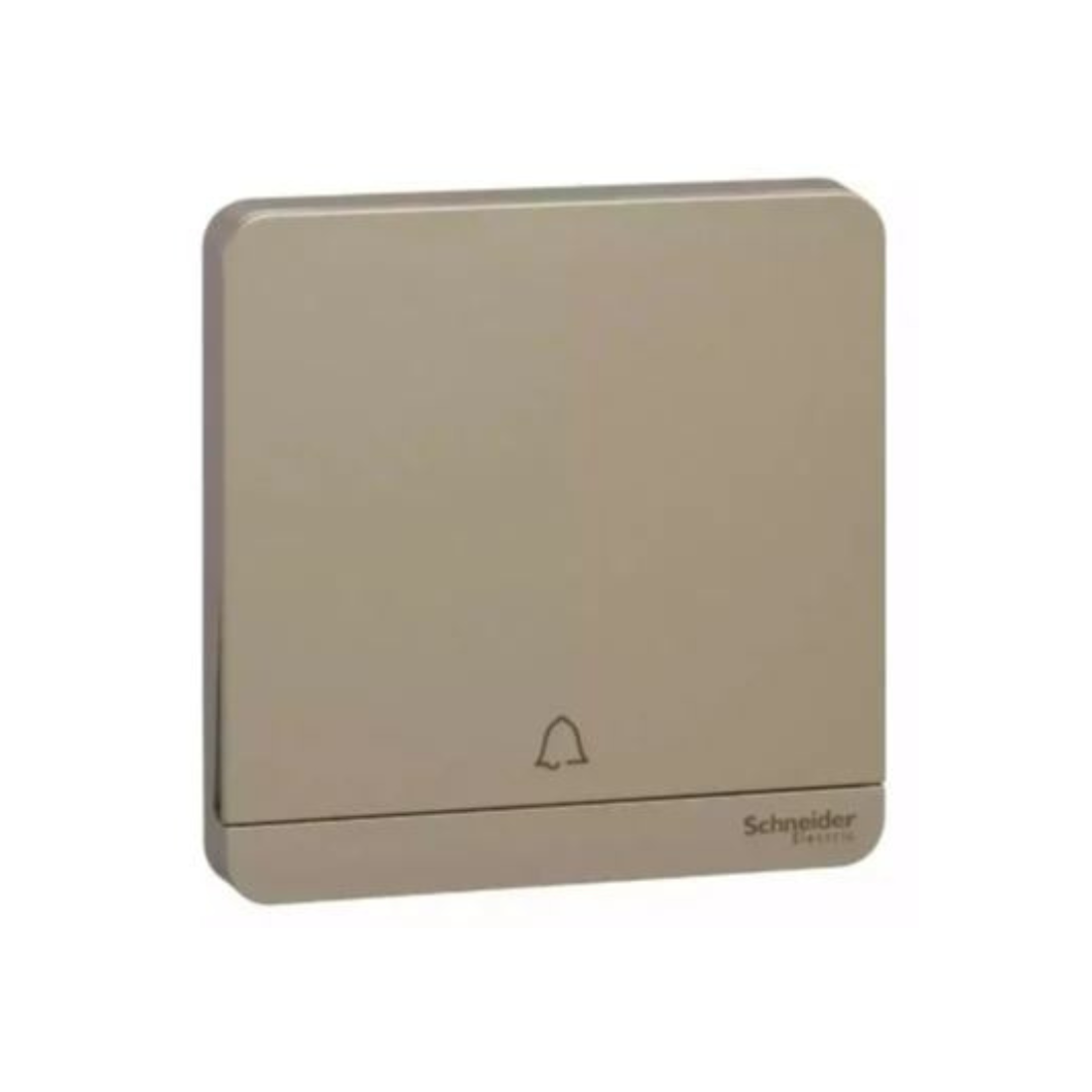

Schneider Electric AvatarOn Push Button for Doorbell 10A 250V E8331BPL1_WG - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Push Button
Description
Schneider Electric E8331BPL1_WG Push Button For Doorbell is a type of switch used for the doorbell. When press switch, it completes an electrical circuit, which in turn rings the doorbell. It can handle a maximum current of 10 amperes and a maximum voltage of 250 volts. This is important for safety and for ensuring the push button can handle the electrical load it will be connected to. Wine Gold is the color or finish of the push button.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Push Button For Doorbell |
| Model | E8331BPL1_WG |
| Color | Wine Gold |
| Rated Current | 10 A at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Device Application | Doorbell |
| Device Mounting | Flush, Surface |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Depth | 34.2 mm |
| Height | 86 mm |
| Marking | Bell Symbol |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Number Of Rocker | 1 |
| Operating Altitude | 2000 m |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, SS 227-1, BS EN 60669-1, IEC 60669-1 |
| Width | 86mm |
| Weight | 81.0 g |
