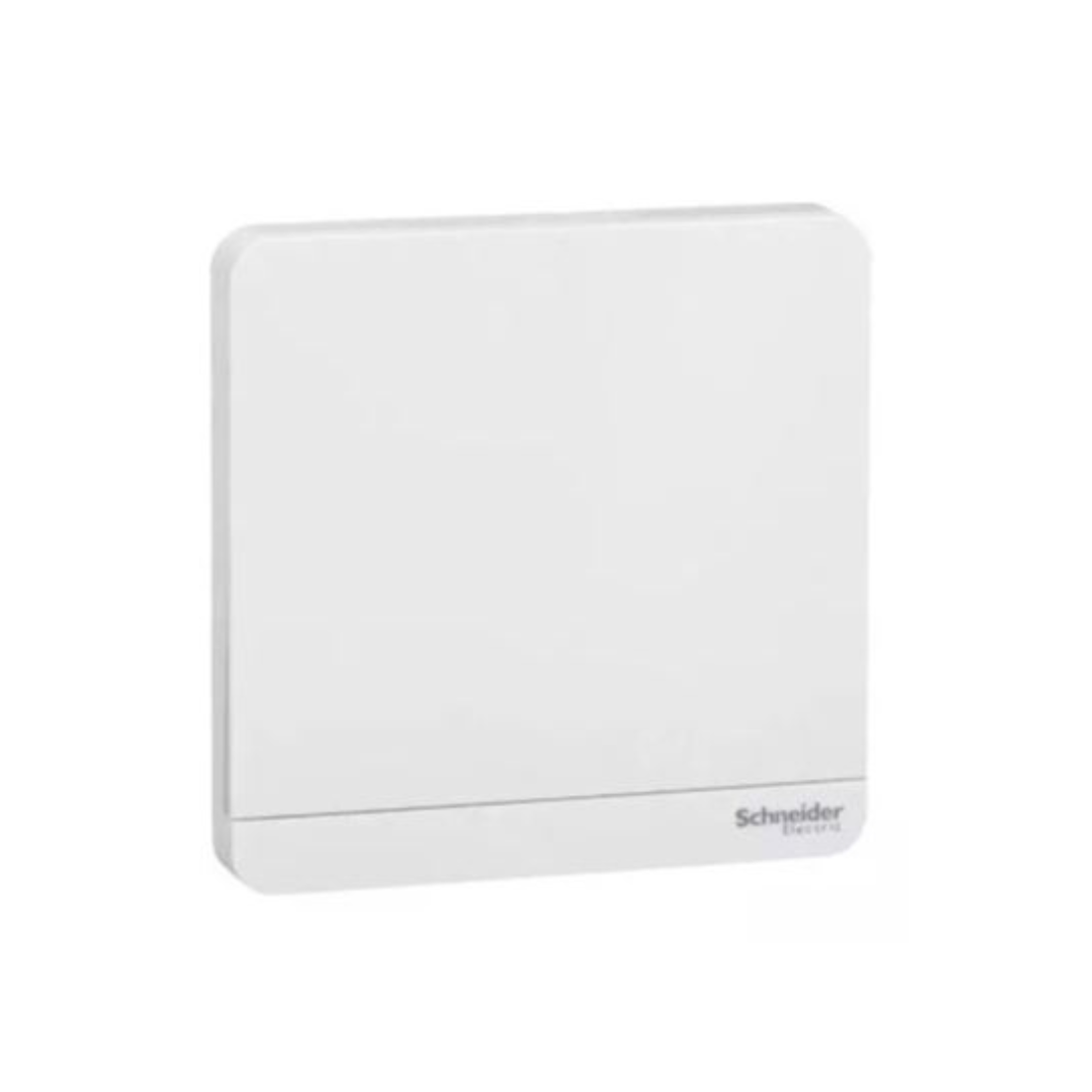

Schneider Electric AvatarOn Intermediate Switch 16AX 250V E8331M_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Intermediate switch
Description
Schneider Electric E8331M_WE Intermediate Switch is a type of switch commonly used in lighting circuits, especially in larger rooms or hallways where multiple switches control the same light or set of lights. It is used in a multi-way switching system. 16AX is the switch's current rating. This rating indicates the maximum current the switch is designed to handle. 250V is the maximum voltage the switch is rated for. White is the color of the switch, which is typically a standard color for electrical switches.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8331M_WE |
| Color | White |
| Load Type | Inductive, Fluorescent Lamp, Incandescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.0 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s) |
| Depth | 29.95 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 20.25mm |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | Intermediate |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | SS 227-1, IEC 60669-1, MS IEC 60669-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 109.0 g |
