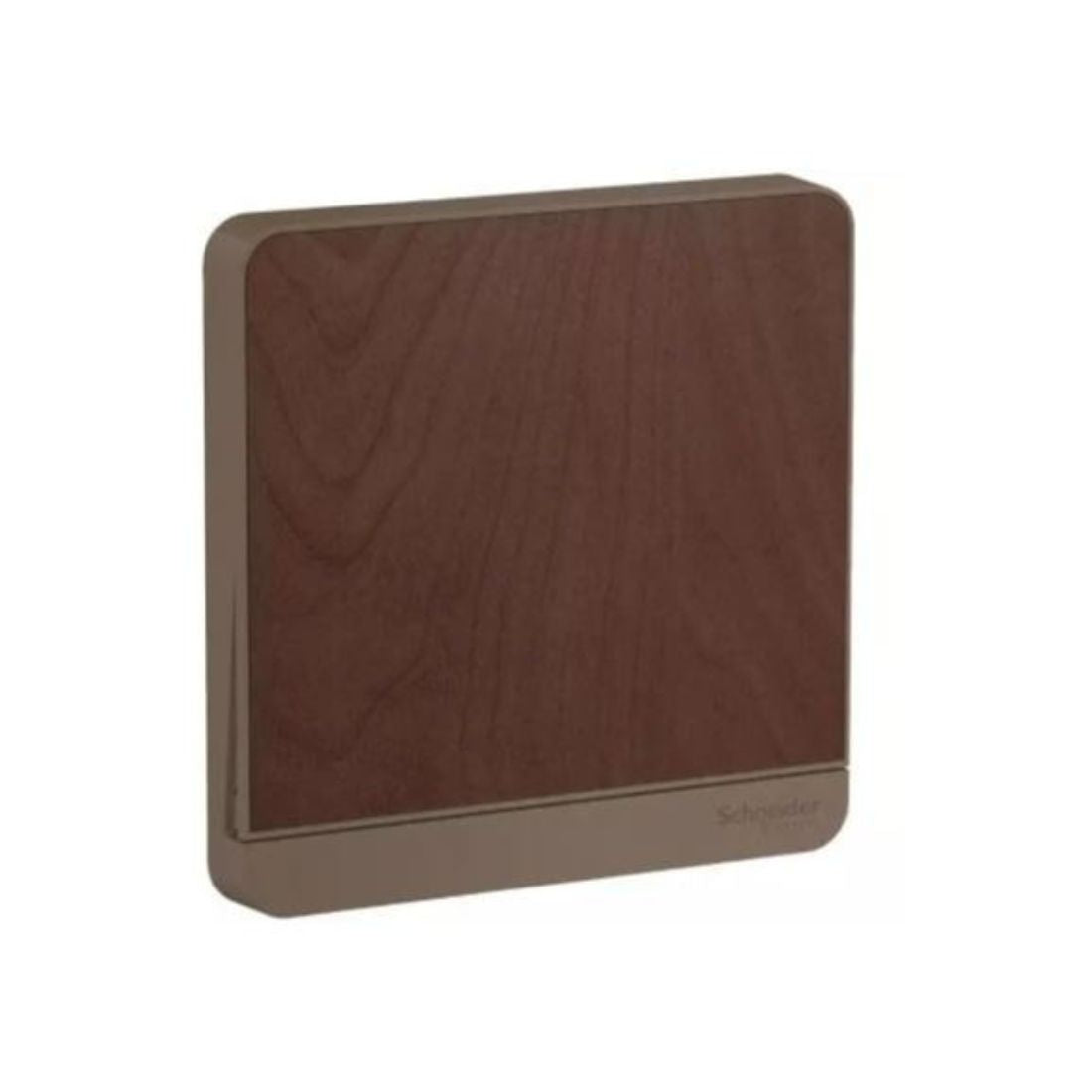

Schneider Electric AvatarOn Intermediate Switch 16AX 250V E8331M_WD - Wood
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by:
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331M_WD Intermediate Switch is a type of electrical switch commonly used in lighting systems, especially in larger rooms or hallways where multiple switches control a single light or set of lights. It controls the same light from multiple locations. 16AX is the maximum current rating the switch can handle. 250V is the maximum voltage the switch can safely handle. It is rated for up to 250 Volts (V), which is standard for most household electrical systems. Wood is the color of the switch.
Features
- Screwless Design
 - Removable Faceplate without exposure to the electrical mechanism
 - Premium Quality Materials

| Brand | Schneider Electric |
| Item Name | Intermediate Switch |
| Model | E8331M_WD |
| Color | Wood |
| Load Type | Inductive, Fluorescent Lamp, Incandescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.0 cm |
| Clamping Connection Capacity | 2 x 2.5 mm² for solid cable(s), 2 x 2.5 mm² for stranded cable(s), 3 x 1.5 mm² for solid cable(s), 3 x 1.5 mm² for stranded cable(s) |
| Depth | 29.95 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Embedding Depth | 20.25mm |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 35 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | Intermediate |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | GB 16915.1 |
| Environmental Characteristic | UV Resistant |
