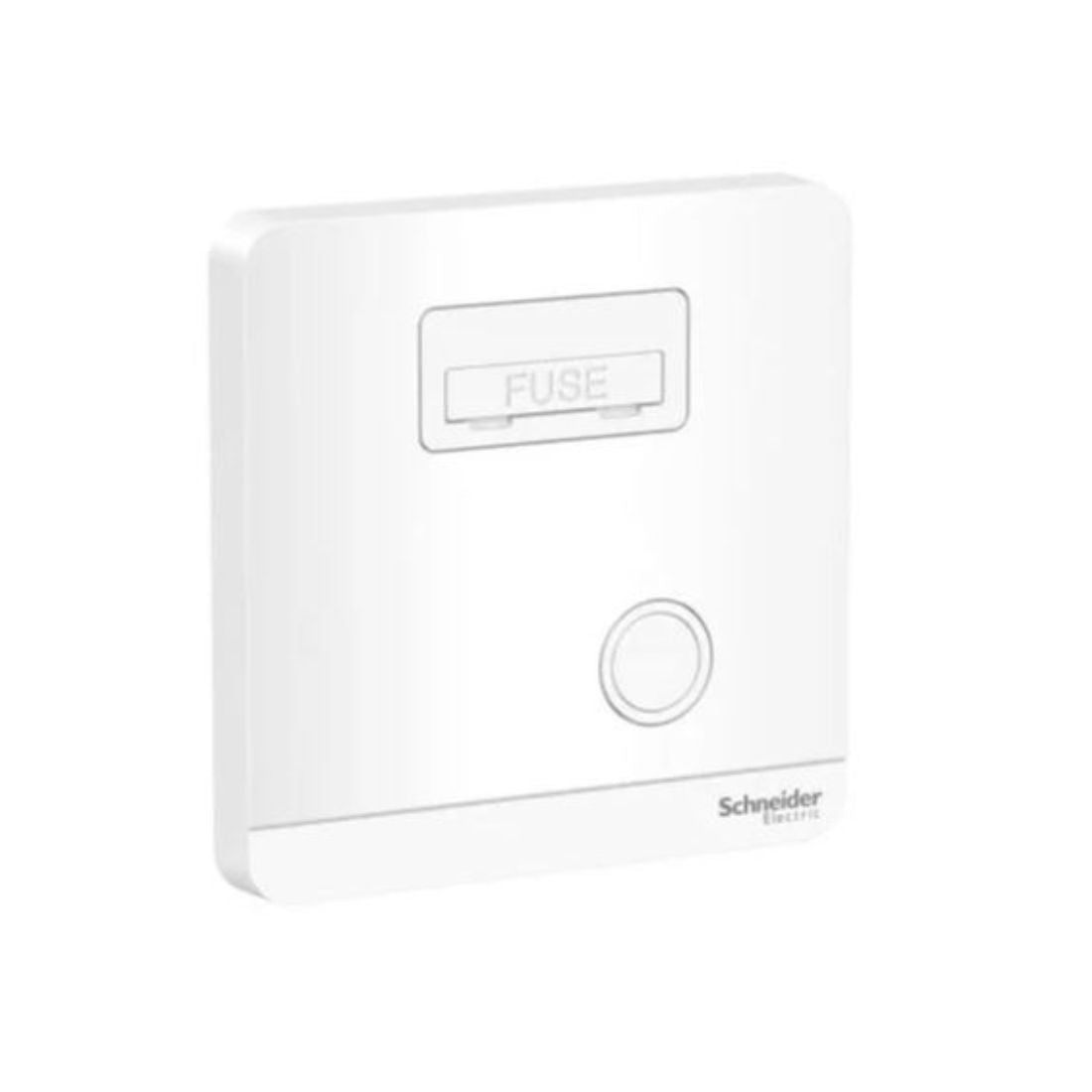

Schneider Electric AvatarOn Fuse Connection 13A 250V E8330FSG_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric E8330FSG_WE Fuse Connection is a specific type of electrical fuse used in domestic or light industrial applications. 13A is the current rating of the fuse. This means that it will safely allow a maximum current of 13 amperes to flow through it before it blows (break the circuit) to protect the connected devices from excessive current. 250V is the voltage rating. It means that the fuse is designed to handle up to 250 volts of electrical potential difference across it. White is the color of the fuse connection.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Fuse Connection |
| Model | E8330FSG_WE |
| Color | White |
| Rated Current | 13 A at 250 V AC 50...60 Hz |
| Depth | 38.2mm |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 2.7 cm |
| Device Presentation | Complete Housing |
| Height | 86mm |
| Connections - Terminals | Screw Terminals |
| IP Degree Of Protection | IP20 |
| Fuse Type | Blade Type |
| Range | AvatarOn |
| Material | PC (polycarbonate), Copper, Steel |
| Number of Gangs | 1 Gang |
| Mounting Support | Wall Mounted |
| Standards | BS 1363 |
| Width | 86mm |
| Weight | 99.0g |
