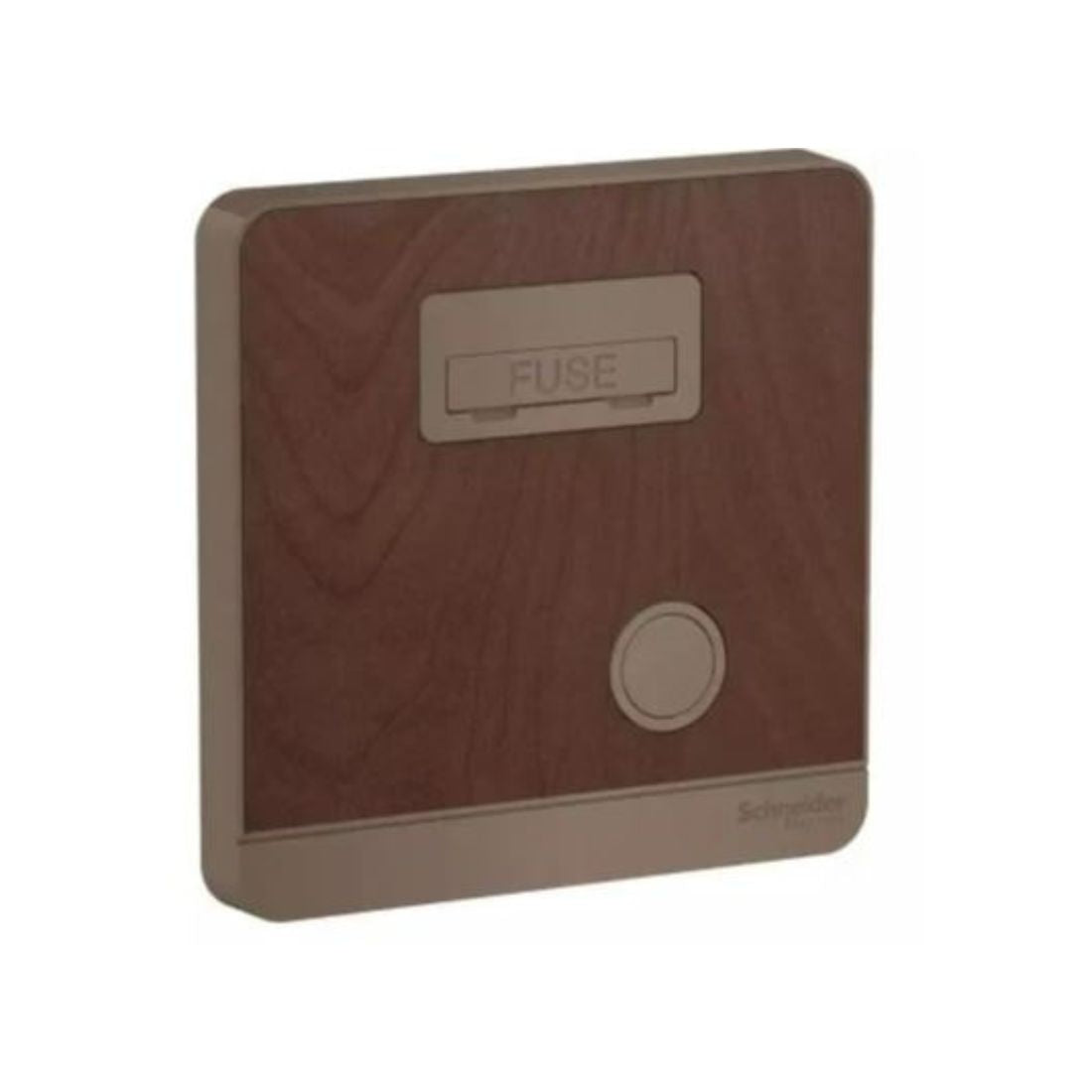

Schneider Electric AvatarOn Fuse Connection 13A 250V E8330FSG_WD - Wood
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Fused Connection
Description
Schneider Electric E8330FSG_WD Fuse Connection is a fuse holder that is rated for a 13 ampere (A) current and can handle a voltage of up to 250 volts (V). It has a wood color. In electrical applications, fuse connections are used to protect circuits from overcurrent situations that could lead to damage or hazards. 13A rating of the fuse connection is designed to handle currents up to 13 amperes before the fuse blows, interrupting the circuit to protect it.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Fuse Connection |
| Model | E8330FSG_WD |
| Color | Dark Wood |
| Rated Current | 13 A at 250 V AC 50...60 Hz |
| Depth | 38.2mm |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 2.7 cm |
| Device Presentation | Complete Housing |
| Height | 86mm |
| Connections - Terminals | Screw Terminals |
| IP Degree Of Protection | IP20 |
| Fuse Type | Blade Type |
| Range | AvatarOn |
| Material | PC (polycarbonate), Copper, Steel |
| Number of Gangs | 1 Gang |
| Mounting Support | Wall Mounted |
| Standards | BS 1363 |
| Width | 86mm |
| Weight | 99.0g |
