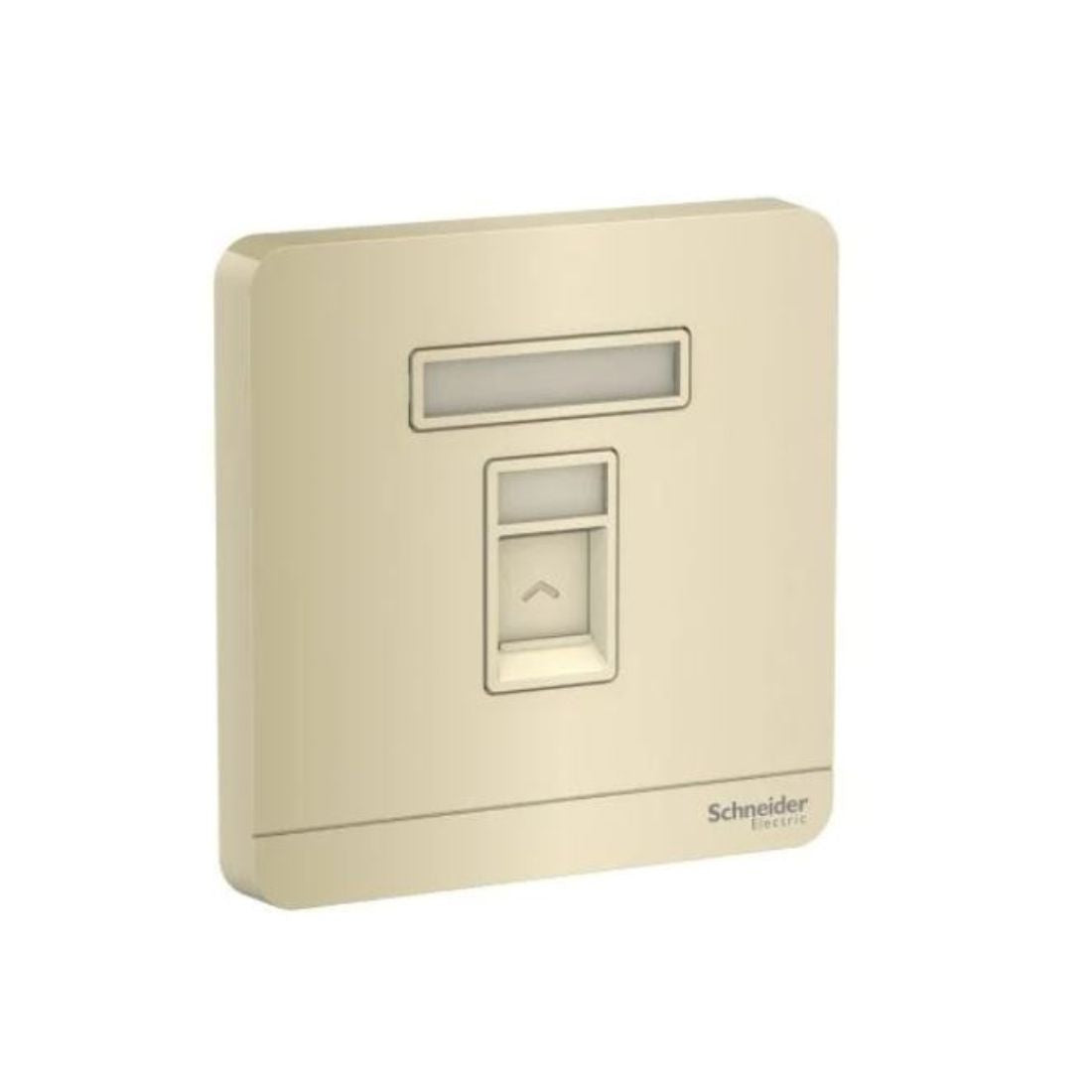

Schneider Electric AvatarOn Data Socket RJ45 Cat6e Shuttered E8331RJS6_WG - Wine Gold

Schneider Electric AvatarOn Data Socket RJ45 Cat6e Shuttered E8331RJS6_WG - Wine Gold

Regular price AED 21.00
(Price Inclusive of VAT)
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Type:Telephone & Data Socket

    Schneider Electric E8331RJS6_WG Data Socket is a physical point where network cables can be connected to devices like computers, printers, or other network-enabled devices. It allows for data communication between these devices. RJ45 is a type of connector commonly used for Ethernet networking. It looks similar to a telephone jack (RJ11), but it's larger with eight pins instead of four.

    Cat6e is a type of twisted pair cable used in Ethernet networking. It provides higher bandwidth and performance compared to Cat5e cables. Cat6e cables are designed to support data transfer rates up to 10 Gigabits per second at a maximum distance of 55 meters. It has a protective cover or door that can be closed over the RJ45 port when it's not in use. This helps to keep out dust and debris, and can also provide some physical security.

    Schneider Electric E8331RJS6_WG Data Socket is a network socket that supports Cat6e cables, has an RJ45 connector, has a protective shutter or cover for the port, and has a wine gold color or finish for aesthetic purposes. This type of socket could be used in networking applications where higher bandwidth and a certain visual aesthetic are desired.

    • Used for networking and data transmission
    • wall-mounted outlets
    • It has protective shutters

    Brand : Schneider Electric

    Item Name : Data Socket

    Model : E8331RJS6_WG

    Color : Wine Gold

    Rated Current : 1.5 A

    Communication Network Category : Data : 6e

    Data Socket Type : RJ45

    Contacts Material Housing: PC, Contact: Phosphor Bronze With Gold Plating

    Contact Resistance : 1 µOhm

    Device Application : Communication

    Device Mounting : Flush, Surface

    Depth : 31mm

    Device Presentation : Complete Product

    IP Degree Of Protection : IP20

    Dielectric Strength : 1000 V for 60 s at 60 Hz

    Number Of Gangs : 1 Gang

    Height : 86mm

    Material : PC (Polycarbonate): Plastic Part

    Maximum Ambient Air Temperature For Operation : 35 °C

    Minimum Return Loss : 23 dB

    Relative Humidity : 0-95 %

    Range : AvatarOn

    Socket Additional Information : Shuttered

    Standards : ASTMD4566-98, TIA/EIA-568-B.2-1

    Environmental Characteristic : No UV Resistant

    Insulation Resistance : >= 200 mOhm

    Width : 86mm
