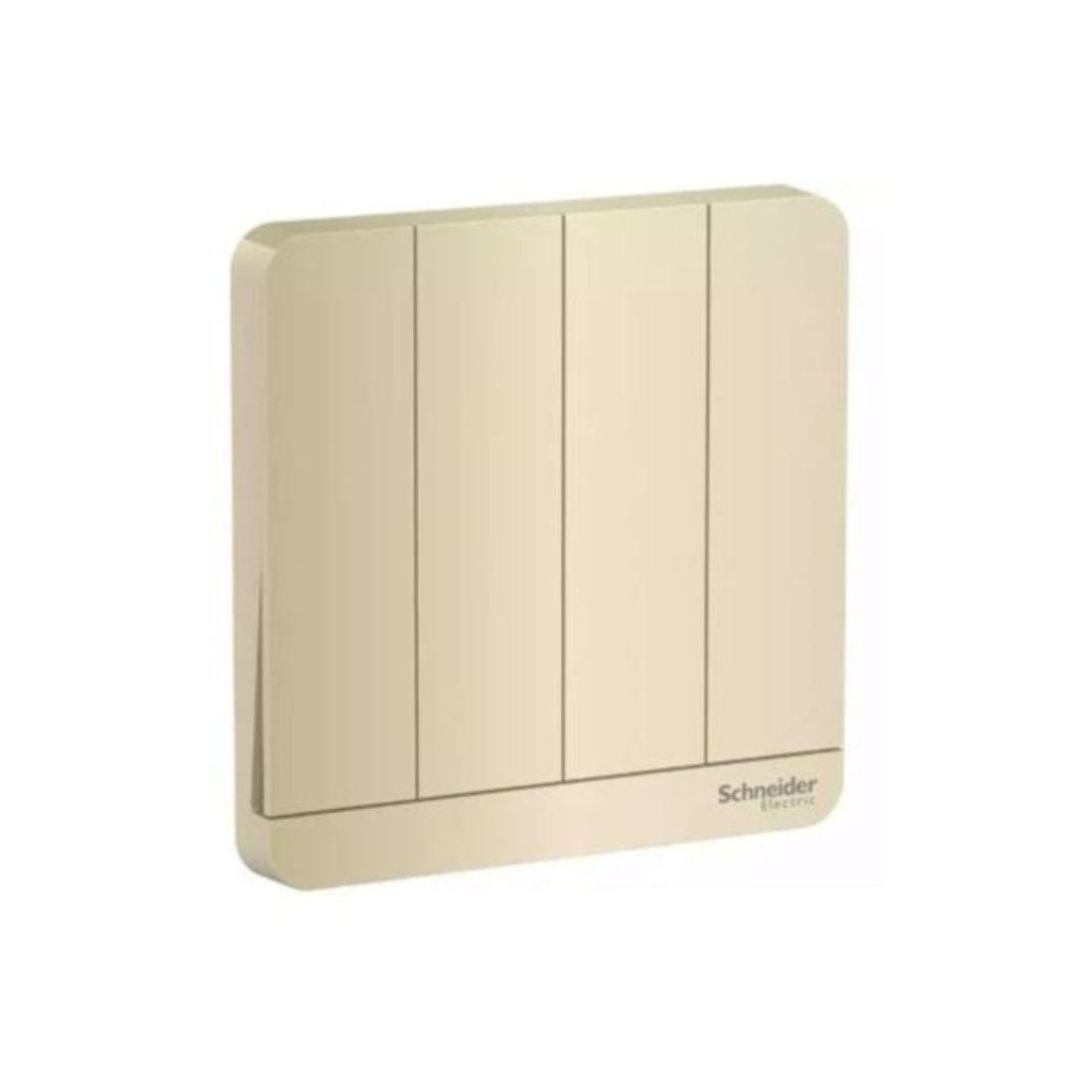

Schneider Electric AvatarOn 4 Switches 16AX 250V 2 Way E8334L2_WG - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8334L2_WG 2-Way 4 Switches is a multi-gang light switch with a 16-ampere rating and a 250-volt capacity, and it comes in a wine gold color or finish. 2-Way is a type of switch that controls a single light or set of lights from two different locations.
There are four individual switches on the plate. Each switch can control a different light or set of lights. 16AX is the current rating of the switch. 250V is the maximum voltage that the switch is designed to handle. Wine Gold is the color of the switch. Schneider Electric E8334L2_WG 2-Way 4 Switches are commonly used in households for controlling lighting circuits.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8334L2_WG |
| Color | Wine Gold |
| Load Type | Incandescent lamp, fluorescent lamp, inductive, resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Height | 86mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 4 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 4 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, MS IEC 60669-1, SS 227-1, BS EN 60669-1 |
| Weight | 140.0 g |
