Schneider Electric AvatarOn 4 Switches 16AX 250V 1 Way E8334L1_GH Metal Gold Hairline in Dubai, UAE
Schneider Electric AvatarOn 4 Switches 16AX 250V 1 Way E8334L1_GH Metal Gold Hairline in Dubai, UAE

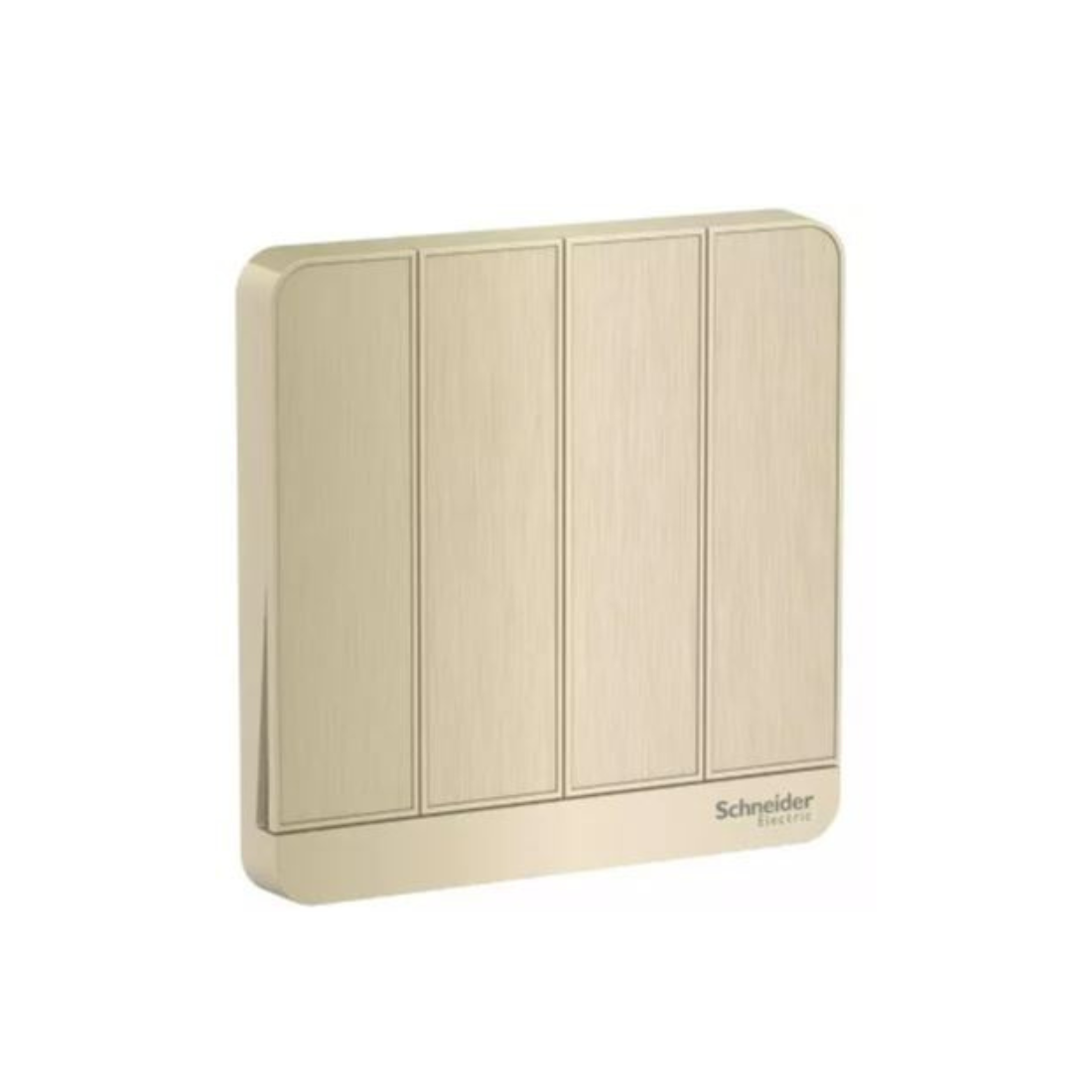

Schneider Electric AvatarOn 4 Switches 16AX 250V 1 Way E8334L1_GH - Metal Gold Hairline

Regular price AED 84.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switches
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8334L1_GH 1-Way 4 Switches are commonly used in electrical installations. A 1-way switch is the simplest type of switch, allowing a circuit to be controlled from a single location. There are four individual switches in this setup. Each switch can control a different part of the electrical circuit.

    16AX is the current rating for the switch. 250V is the voltage rating. The switch is designed to work with a maximum voltage of 250 Volts. Metal Gold Hairline is the color of the switch.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Switch

    Model : E8334L1_GH

    Color : Metal Gold Hairline

    Load Type : Incandescent lamp, fluorescent lamp, inductive, resistive

    Rated Current : 16 AX at 250 V AC 50/60 Hz

    Package1 Length*Width*Height : 8.6 cm x 8.6 cm x 3.4 cm

    Clamping Connection Capacity : 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s)

    Depth : 34.2mm

    Device Application : Control

    Device Mounting : Flush, Surface

    Height : 86mm

    Environmental Characteristic : UV Resistant

    IP Degree Of Protection : IP20

    Height : 86mm

    Material : Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator

    Maximum Ambient Air Temperature for Operation : 45 °C

    Number Of Gangs : 4 Gangs

    Operating Altitude : 2000 m

    Number Of Rocker : 4

    Range : AvatarOn

    Relative Humidity : 0-95 %

    Switch Function : 1-Pole 1-Way

    Width : 86 mm

    Connections - Terminals : Brass Terminal

    Standards : IEC 60669-1, BS EN 60669-1, MS IEC 60669-1, SS 227-1

    Environmental Characteristic : UV Resistant

    Weight : 140.0 g
