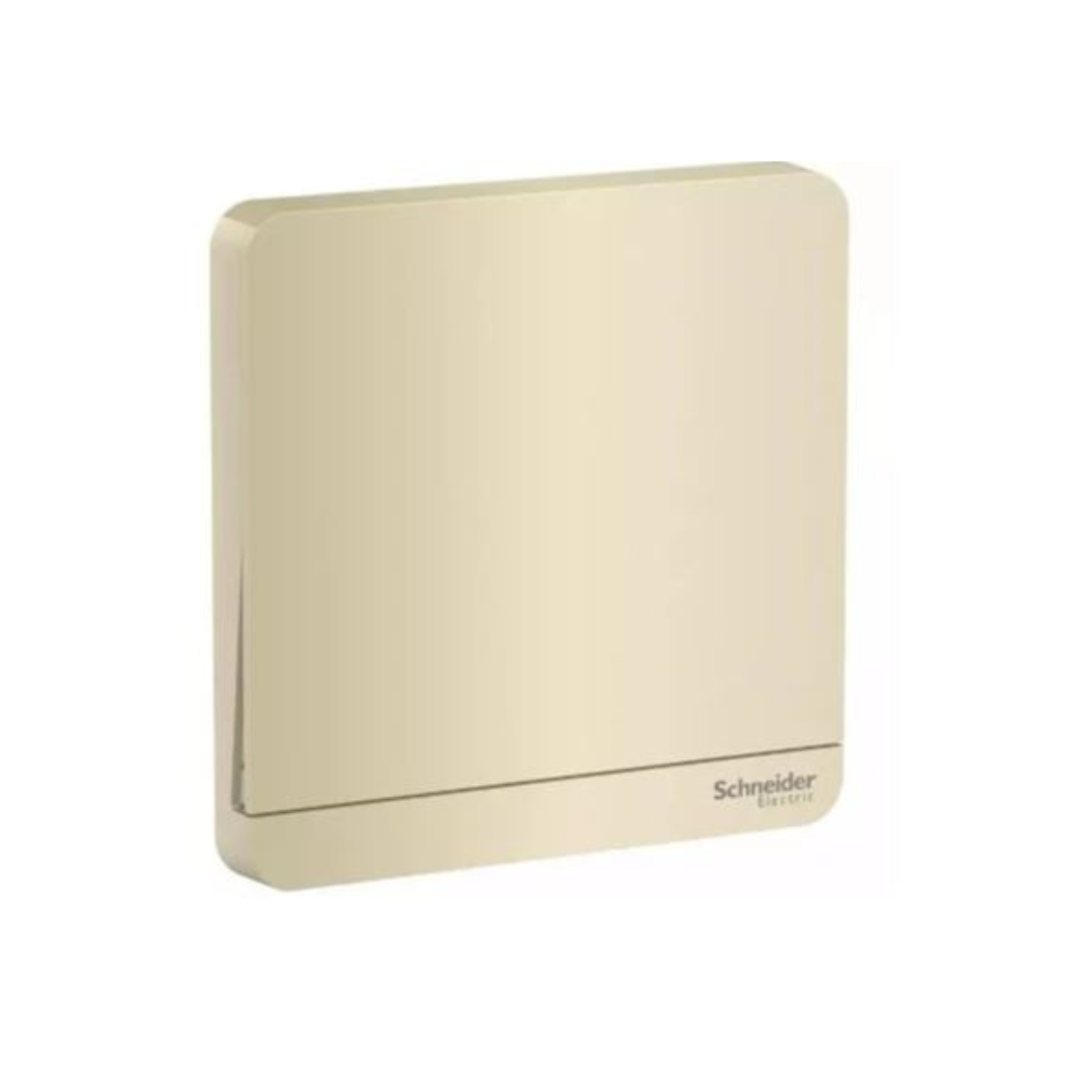

Schneider Electric AvatarOn 2 Way Switch 16AX 250V E8331L2_WG - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8331L2_WG 2 Way Switch typically refers to a switch that can be used to control a single light or appliance from two different locations. 16AX is the current rating of the switch, which is 16 amperes. 250V is the maximum voltage the switch can handle, which is 250 volts. Wine Gold is the color or finish of the switch.
2 Way Switch is commonly used in residential and commercial electrical installations to control lighting or other electrical devices from multiple locations, such as at the top and bottom of a staircase.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331L2_WG |
| Color | Wine Gold |
| Load Type | Incandescent lamp, fluorescent lamp, inductive, resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Height | 86mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, MS IEC 60669-1, BS EN 60669-1, SS 227-1 |
| Weight | 82.0 g |
