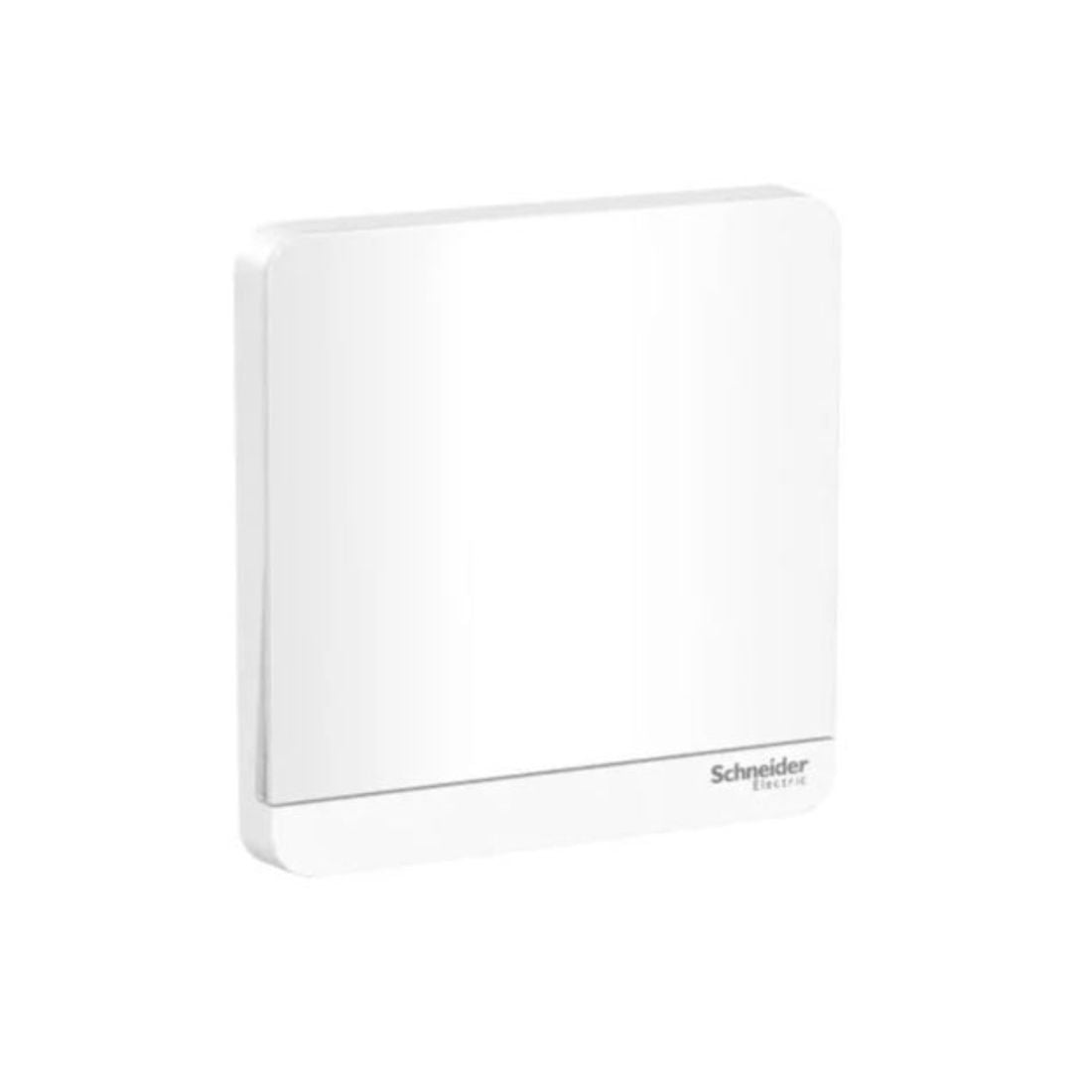

Schneider Electric AvatarOn 2 Way Switch 16AX 250V E8331L2_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8331L2_WE 2-Way Switch is an electrical switch commonly used in households and commercial buildings. A 2-way switch is a type of electrical switch that can be used to control a single light or electrical device from two different locations. 16AX is the current rating of the switch. It indicates the maximum current that the switch is designed to handle safely.
250V is the voltage rating of the switch. It means that the switch is designed to work with electrical systems that have a maximum voltage of 250 volts (V). White is the color of the switch, which is a common color for electrical devices.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Way Switch |
| Model | E8331L2_WE |
| Color | White |
| Load Type | Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Number Of Gangs | 1 Gang |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Local Signalling | Off : Light Indicator, LED (Amber) |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, BS EN 60669-1, SS 227-1, IEC 60669-1 |
| Switch Function | 1-Pole 2-Way |
| Environmental Characteristic | UV Resistant |
| Weight | 82.0 g |
