Schneider Electric 2 Way Switch 16AX 250V E8331L2_DG Dark Grey in Dubai, UAE

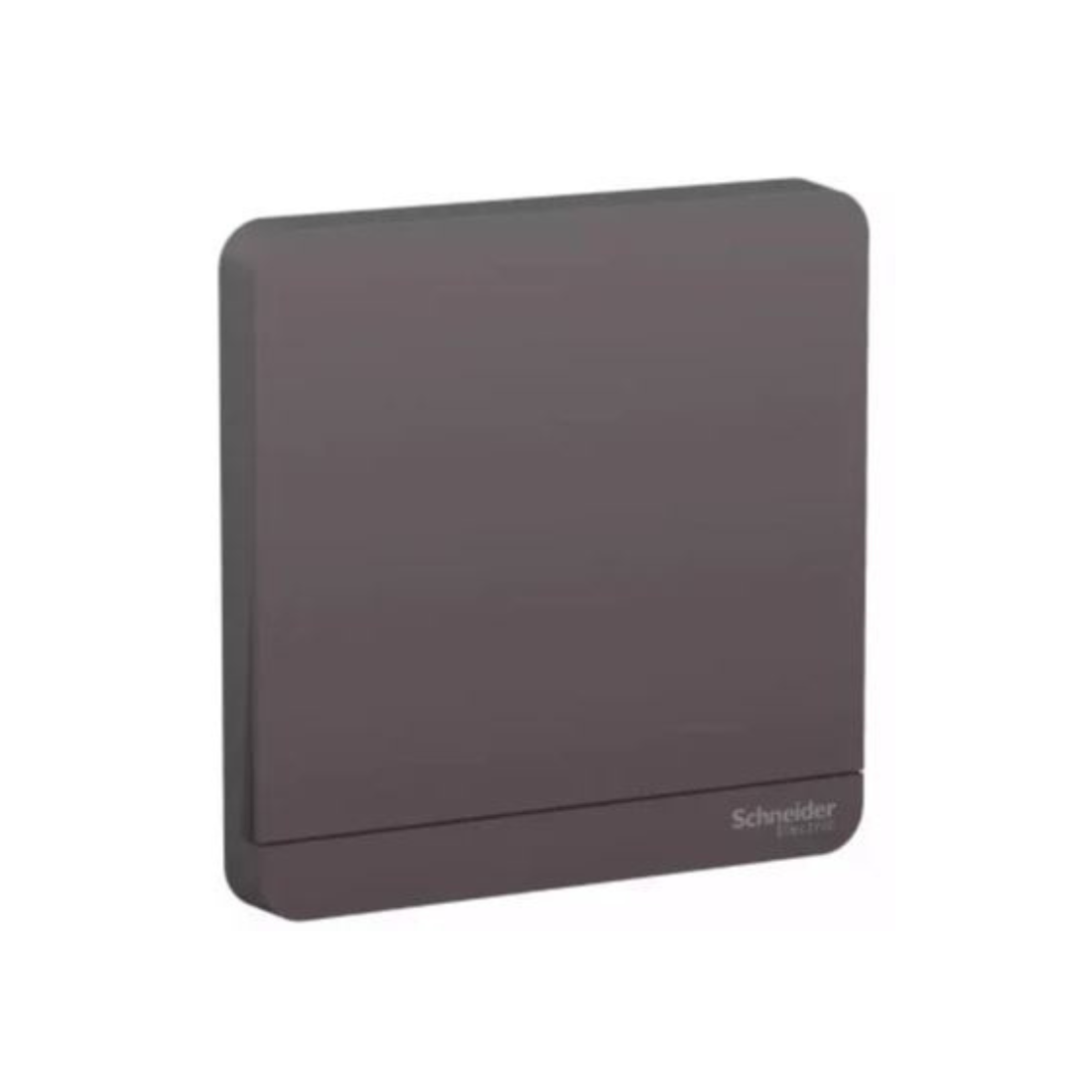

Schneider Electric AvatarOn 2 Way Switch 16AX 250V E8331L2_DG - Dark Grey

Name: Schneider Electric AvatarOn 2 Way Switch 16AX 250V E8331L2_DG - Dark Grey
Brand: Schneider Electric
Price: 30.0 AED
Availability: InStock

AED 30.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Switches

Description

Schneider Electric E8331L2_DG 2 Way Switch is commonly used in homes to control a single light or set of lights from two different locations. 16AX is the current rating of the switch. It can handle up to 16 amperes of current. 250V is the voltage rating of the switch. It's designed to handle up to 250 volts. This is a common voltage level in many residential electrical systems. Dark Grey is the color of the switch, which is dark grey.

Features

Screwless Design
Removable Faceplate without exposure to the electrical mechanism
Premium Quality Materials

Specifications

Brand : Schneider Electric

Item Name : Switch

Model : E8331L2_DG

Color : Dark Grey

Load Type : Incandescent lamp, fluorescent lamp, inductive, resistive

Rated Current : 16 AX at 250 V AC 50/60 Hz

Package1 Length*Width*Height : 8.5 cm x 8.5 cm x 4.5 cm

Clamping Connection Capacity : 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s)

Depth : 34.2mm

Device Application : Control

Device Mounting : Flush, Surface

Height : 86mm

Environmental Characteristic : UV Resistant

IP Degree Of Protection : IP20

Height : 86mm

Material : Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator

Maximum Ambient Air Temperature for Operation : 45 °C

Number Of Gangs : 1 Gang

Operating Altitude : 2000 m

Number Of Rocker : 1

Range : AvatarOn

Relative Humidity : 0-95 %

Switch Function : 1-Pole 2-Way

Width : 86 mm

Connections - Terminals : Brass Terminal

Standards : MS IEC 60669-1, BS EN 60669-1, SS 227-1, IEC 60669-1

Weight : 82.0 g
