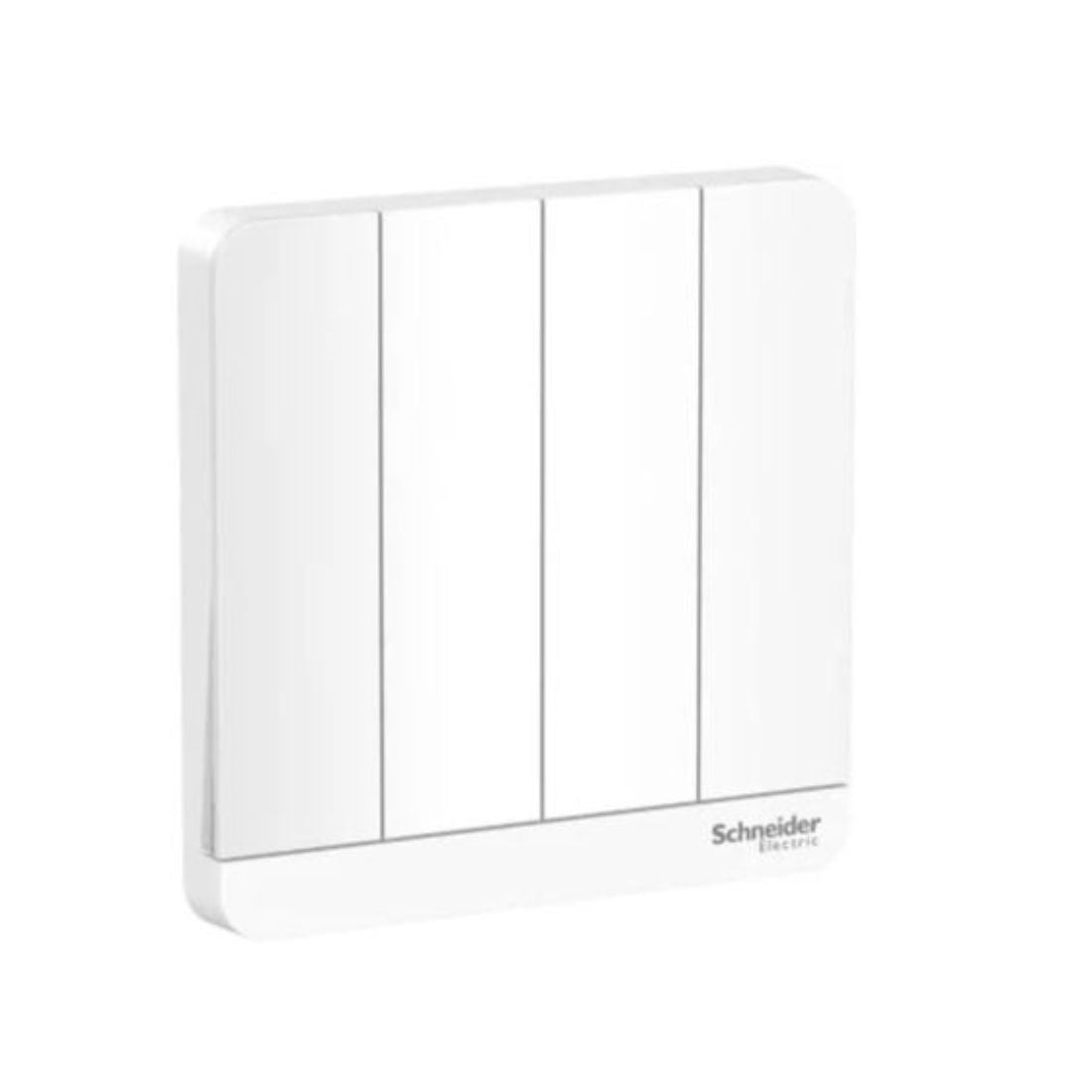

Schneider Electric AvatarOn 2 Way 4 Switches 16AX 250V E8334L2_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8334L2_WE 2-Way 4 Switches can control a single light or electrical device from two different locations. A 4-way switch is used in conjunction with two 3-way switches to control a single light or electrical device from three or more locations. 16AX is the maximum current the switch is rated for. It can handle devices or loads that draw up to 16 amps of current. 250V is the maximum voltage the switch is designed to handle. White is the color of the switch, which is typically used for neutral or common wiring in many electrical systems.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8334L2_WE |
| Color | White |
| Load Type | Incandescent lamp, fluorescent lamp, inductive, resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Height | 86mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 4 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 4 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, BS EN 60669-1, SS 227-1, IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 140.0 g |
