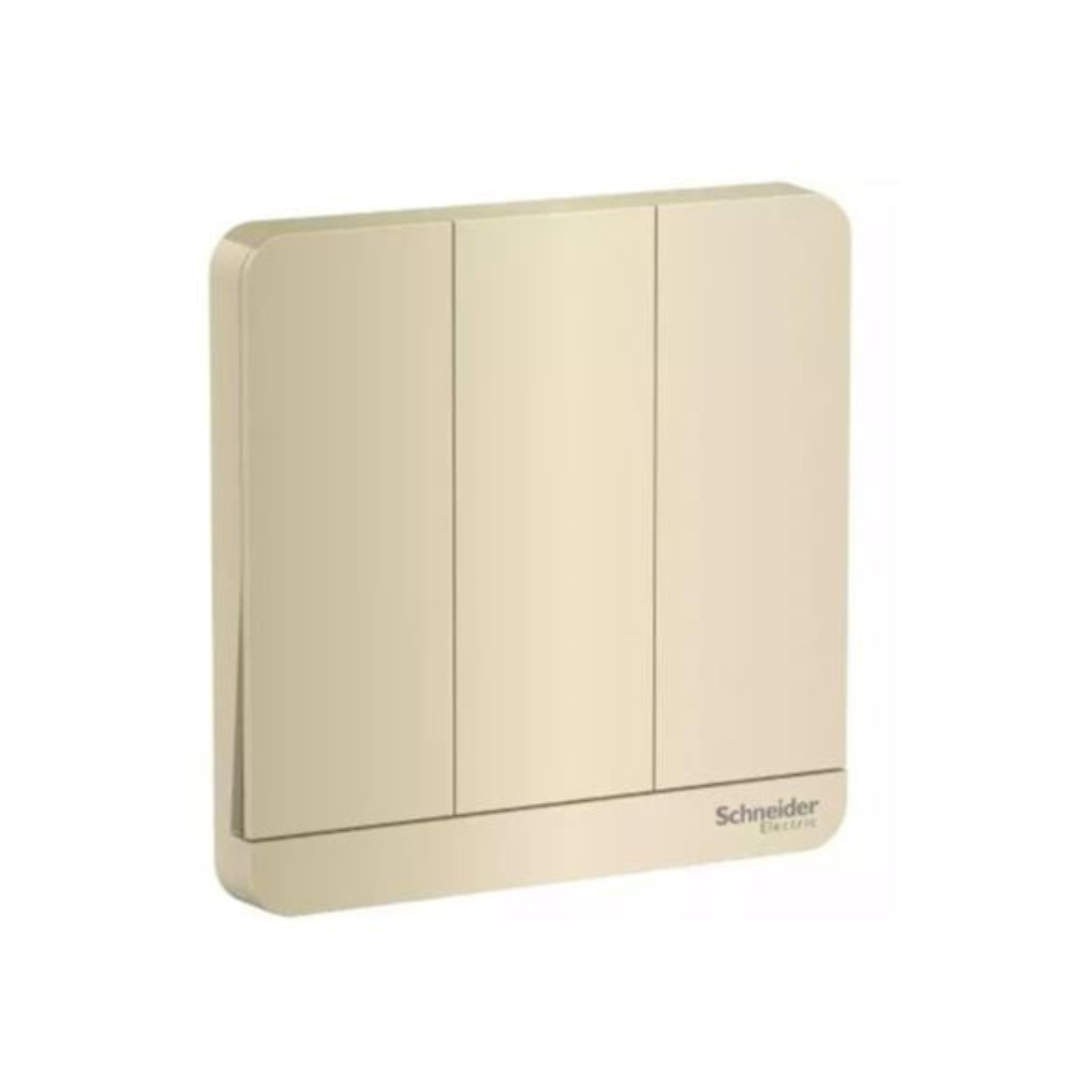

Schneider Electric AvatarOn 2 Way 3 Switches 16AX 250V E8333L2_WG - Wine Gold
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8333L2_WG 2 Way 3 Switches commonly used in lighting circuits. It controls a single light fixture from multiple locations. The switch is rated for 16 Amperes of current and is designed for heavy-duty use. 250V is the maximum voltage the switch can handle safely. Wine Gold is the color or finish of the switch.
So, Schneider Electric E8333L2_WG 2 Way 3 Switches are designed for heavy-duty use, can handle up to 250 volts and has a wine gold finish. This switch configuration is often used in residential and commercial electrical installations for controlling lights from multiple locations.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Way 3 Switches |
| Model | E8333L2_WG |
| Color | Wine Gold |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 3 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 3 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | BS EN 60669-1, MS IEC 60669-1, IEC 60669-1, SS 227-1 |
| Environmental Characteristic | UV Resistant |
