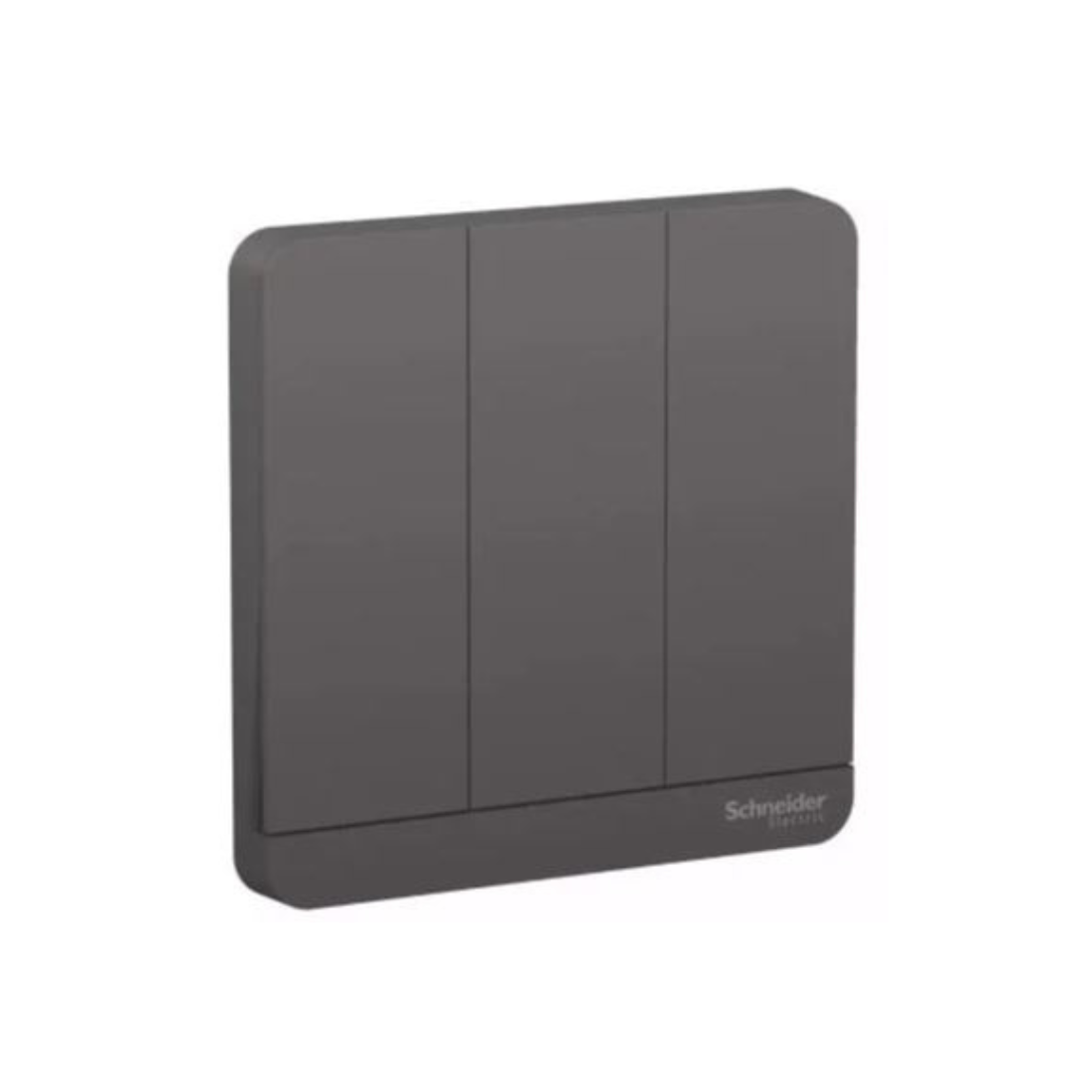

Schneider Electric AvatarOn 2 Way 3 Switches 16AX 250V E8333L2_DG Dark Grey in Dubai, UAE
Schneider Electric AvatarOn 2 Way 3 Switches 16AX 250V E8333L2_DG Dark Grey in Dubai, UAE

Schneider Electric AvatarOn 2 Way 3 Switches 16AX 250V E8333L2_DG - Dark Grey

Regular price AED 68.25
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switches
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8333L2_DG 2 Way 3 Switches control a single light from two different locations. This is commonly used in staircases or hallways where want to be able to turn the light on or off from multiple locations.

    16AX is the current rating. This means the switch is rated for a maximum current of 16 amperes. This is a common rating for switches used in residential and light commercial applications. 250V is the maximum voltage the switch is designed to handle. Dark Grey is the color or finish of the switch.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : 3 Switches

    Model : E8333L2_DG

    Color : Dark Grey

    Load Type : Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive

    Rated Current : 16 AX at 250 V AC 50/60 Hz

    Clamping Connection Capacity : 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s)

    Package1 Length*Width*Height : 8.5 cm x 8.5 cm x 4.5 cm

    Depth : 34.2mm

    Device Application : Control

    Device Mounting : Flush, Surface

    Embedding Depth : 24.5 mm

    Height : 86mm

    Environmental Characteristic : UV Resistant

    IP Degree Of Protection : IP20

    Material : Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator

    Maximum Ambient Air Temperature for Operation : 35 °C

    Number Of Gangs : 3 Gangs

    Operating Altitude : 2000 m

    Number Of Rocker : 3

    Range : AvatarOn

    Relative Humidity : 0-95 %

    Switch Function : 1-Pole 2-Way

    Width : 86 mm

    Connections - Terminals : Brass Terminal

    Standards : GB 16915.1

    Environmental Characteristic : UV Resistant

    Weight : 115.0 g
