Schneider Electric AvatarOn 2 USB Charger + Switched Socket 3P 13A E8315USB_WD_G12 Wood in Dubai, UAE
Schneider Electric AvatarOn 2 USB Charger + Switched Socket 3P 13A E8315USB_WD_G12 Wood in Dubai, UAE

Schneider Electric AvatarOn 2 USB Charger + Switched Socket 3P 13A E8315USB_WD_G12 - Wood

Regular price AED 192.25
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:USB With Switched Socket
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

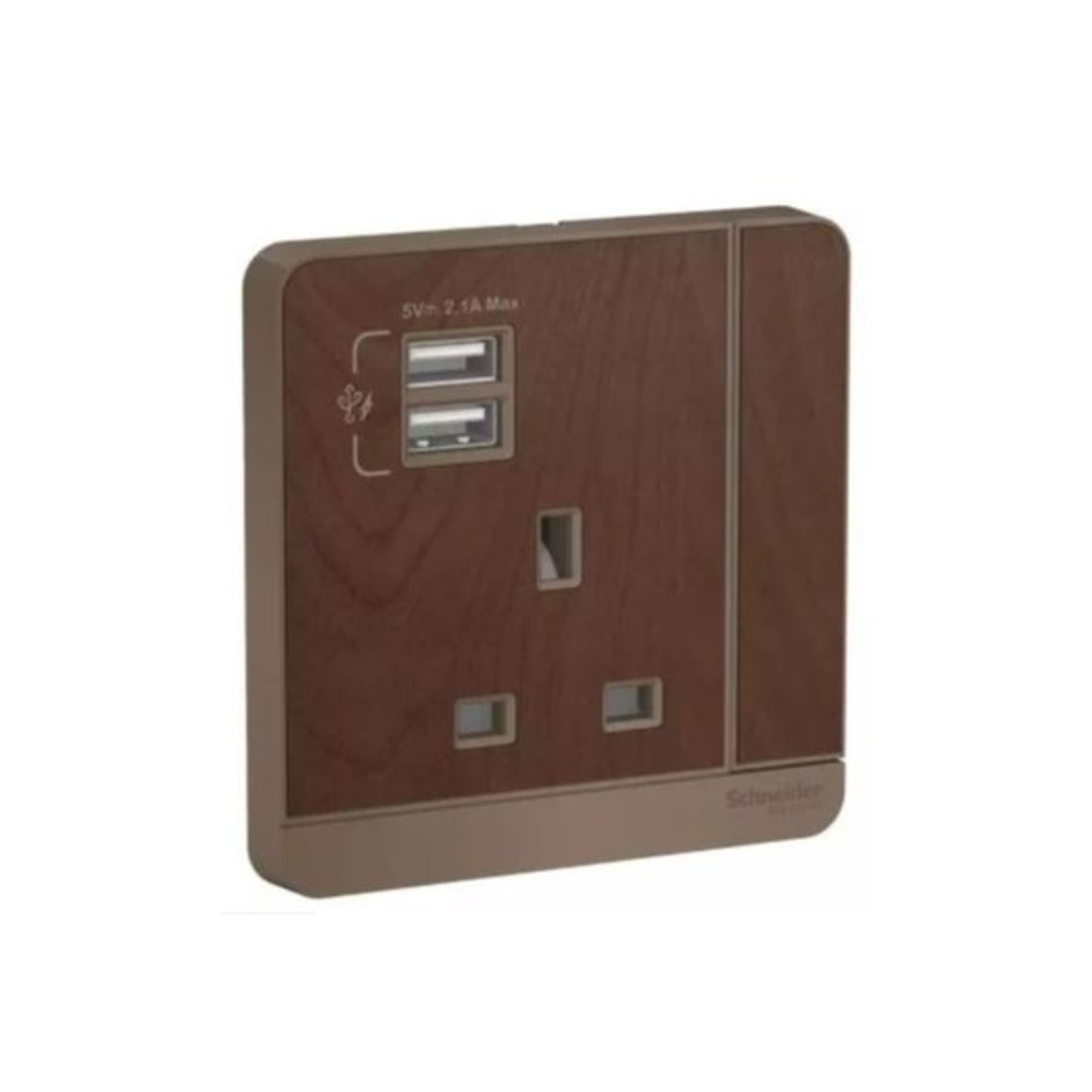

    Schneider Electric E8315USB_WD_G12 2 USB Charger And Switched Socket has built-in USB ports that can be used to charge devices like smartphones, tablets, or other USB-powered gadgets without needing a separate adapter. The socket has an on/off switch. It controls the power supply to the connected devices.

    A 3-pole socket would be able to handle three separate conductors or circuits. This might be used in scenarios where you have three separate electrical phases. The socket is designed to handle devices that draw up to 13 amperes of current. The socket is finished with a wooden color.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Switched Socket With USB

    Model : E8315USB_WD_G12

    Package1 Length*Width*Height : 8.6 cm x 8.6 cm x 3.8 cm

    Ambient Air Temperature For Operation : 0-40 °C

    Ambient Air Temperature For Storage : -5-60 °C

    Clamping Connection Capacity : 1.5...4 mm² for rigid cable(s), 1.5...4 mm² for stranded cable(s), 1.5...4 mm² for flexible cable(s)

    Rated Current : 45 A at 230 V AC 50 Hz

    Color : Wood

    Depth : 38.2 mm

    Device Mounting : Surface

    Dielectric Strength : 2000 V

    Embedding Depth : 29.3 mm

    Fixing Mode : By Screws

    Height : 86mm

    IP Degree Of Protection : IP20

    Material : PC (polycarbonate): grid plate, PC (polycarbonate): surround

    Number of Cables : 2

    Number of Terminals : 3

    Mounting Support : Mounting Box

    Range : AvatarOn

    Outlet Poles Configuration : 3P With Shutter

    Outlet Standard : British

    Outlet Standard Description : With Earthing Contact

    Protection Type : Current Protection, Thermal Protection

    Screwdriver Shape : Phillips Combined

    Service Life in Cycles : 5000 Cycles

    Surface Treatment : Painted

    Wire Stripping Length : 12mm

    Outlet Standard Deviation : British

    Surface Finish : Matt

    Width : 86 mm

    Standards : UL 94, UL 1310, UL 498

    Weight : 109.0 g

    Connections - Terminals : Screw Terminal
