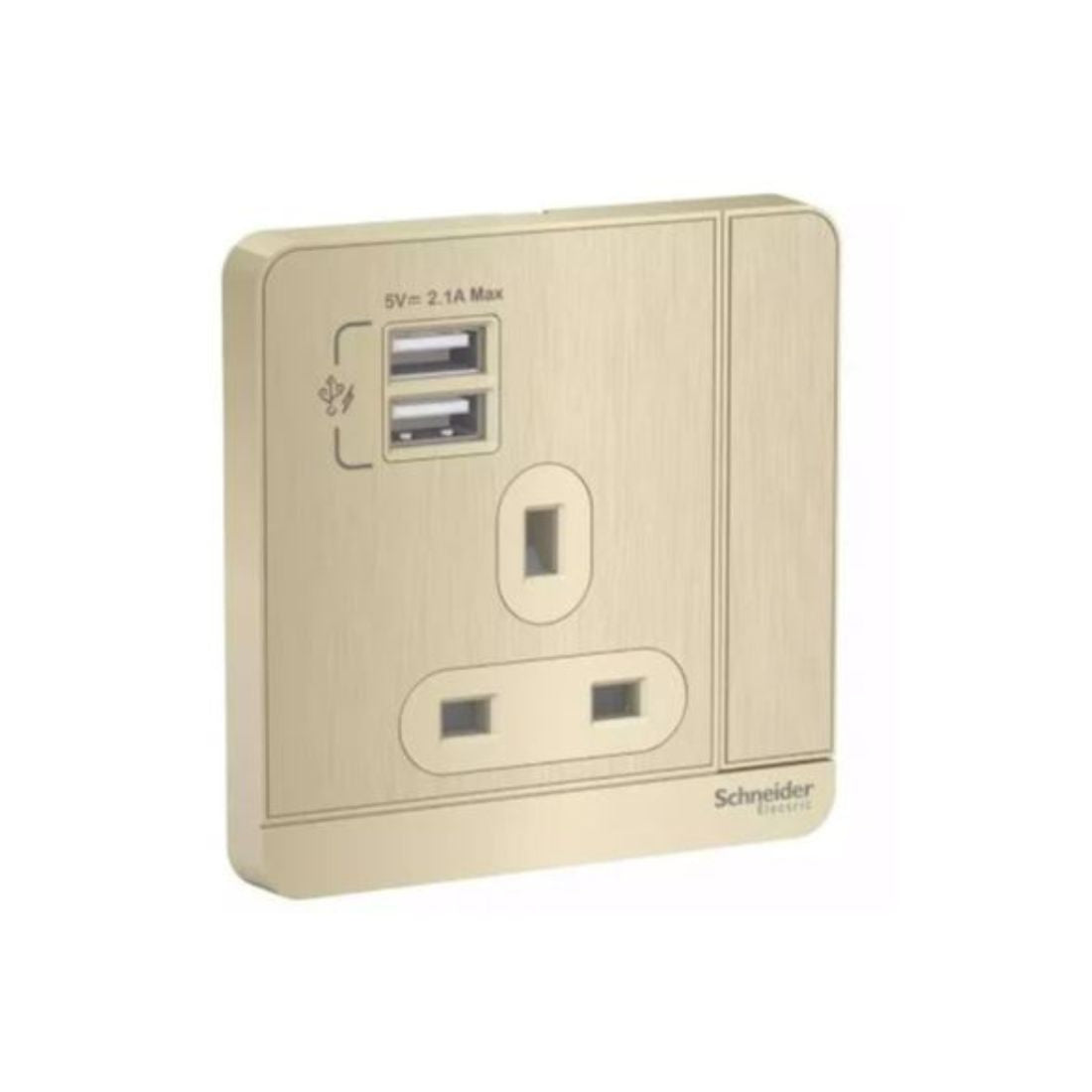

Schneider Electric AvatarOn 2 USB Charger + Switched Socket 3P 13A E8315USB_GH_G12 - Metal Gold Hairline
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : USB With Switched Socket
Description
Schneider Electric E8315USB_GH_G12 2 USB Charger And Switched Socket is typically used in homes or commercial spaces to provide a combination of standard power outlets, USB charging ports, and a switch for controlling power to the socket. It provides two USB charging ports and a switched socket.
The socket is a three-pole device. This could imply that it's designed to handle three-wire connections. 13A is the maximum current capacity of the device, which is 13 amperes. This is a standard rating for many household outlets. Metal Gold Hairline is the color of the device. It suggests that the device has a gold-colored metallic finish with a hairline texture.
Schneider Electric E8315USB_GH_G12 2 USB Charger And Switched Socket is useful for charging devices like smartphones, tablets, and other USB-powered devices without the need for a separate adapter. The inclusion of a switch controls power to the socket, which can be helpful for conserving energy or for safety reasons.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switched Socket With USB |
| Model | E8315USB_GH_G12 |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.8 cm |
| Ambient Air Temperature For Operation | 0-40 °C |
| Ambient Air Temperature For Storage | -5-60 °C |
| Clamping Connection Capacity | 1.5...4 mm² for rigid cable(s), 1.5...4 mm² for stranded cable(s), 1.5...4 mm² for flexible cable(s) |
| Rated Current | 13 A, AC |
| Color | Metal Gold Hairline |
| Depth | 38.2 mm |
| Device Mounting | Surface |
| Dielectric Strength | 2000 V |
| Embedding Depth | 29.3 mm |
| Fixing Mode | By Screws |
| Height | 86mm |
| IP Degree Of Protection | IP20 |
| Material | PC (polycarbonate): grid plate, PC (polycarbonate): surround |
| Number Of Gangs | 1 Gang |
| Number of Cables | 2 |
| Number of Terminals | 3 |
| Range | AvatarOn |
| Outlet Poles Configuration | 3P With Shutter |
| Outlet Standard | British |
| Outlet Standard Description | With Earthing Contact |
| Protection Type current protection | |
| Screwdriver Shape | Phillips Combined |
| Service Life in Cycles | 5000 Cycles |
| Surface Treatment | Painted |
| Wire Stripping Length | 12mm |
| Outlet Standard Deviation | British |
| Surface Finish | Matt |
| Width | 86 mm |
| Standards | UL 94, UL 1310, UL 498 |
| Weight | 109.0g |
| Connections - Terminals | Screw Terminal |
