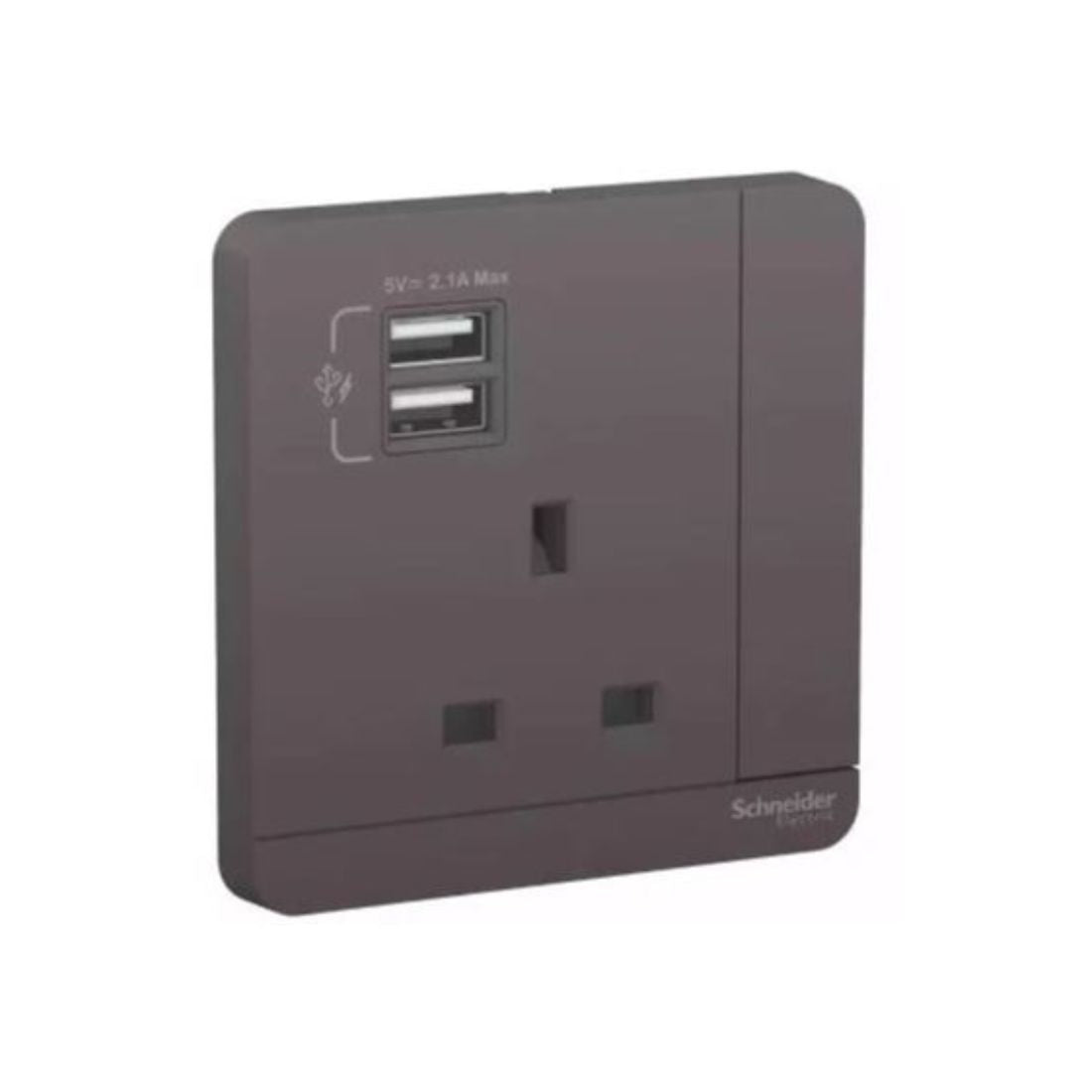

Schneider Electric AvatarOn 2 USB Charger and Switched Socket 3P 13A E8315USB_DG_G12 Dark Grey in Dubai, UAE
Schneider Electric AvatarOn 2 USB Charger and Switched Socket 3P 13A E8315USB_DG_G12 Dark Grey in Dubai, UAE

Schneider Electric AvatarOn 2 USB Charger + Switched Socket 3P 13A E8315USB_DG_G12 - Dark Grey

Regular price AED 181.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:USB With Switched Socket
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8315USB_DG_G12 2 USB Charger And Switched Socket is an electrical outlet that includes two USB ports for charging devices, along with two standard plug sockets (3-pin) that can be controlled by a switch. The outlet is rated for a maximum current of 13 amperes. Dark Grey is the color or finish of the outlet.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Switched Socket With USB

    Model : E8315USB_DG_G12

    Package1 Length*Width*Height : 8.5 cm x 8.5 cm x 3.8 cm

    Ambient Air Temperature For Operation : 0-40 °C

    Ambient Air Temperature For Storage : -5-60 °C

    Clamping Connection Capacity : 1.5...4 mm² for rigid cable(s), 1.5...4 mm² for stranded cable(s), 1.5...4 mm² for flexible cable(s)

    Color : Dark Grey

    Depth : 38.2 mm

    Device Mounting : Surface

    Dielectric Strength : 2000 V

    Embedding Depth : 29.3 mm

    Fixing Mode : By Screws

    Height : 86mm

    Integrated Connection Type : 2 USB type A 5 V DC 2.1 A, 1 socket-outlet 250 V AC 13 A 50/60 Hz

    IP Degree Of Protection : IP20

    Material : PC (polycarbonate): grid plate, PC (polycarbonate): surround

    Number of Cables : 2

    Number of Terminals : 3

    Mounting Support : Mounting Box

    Range : AvatarOn

    Outlet Poles Configuration : 3P With Shutter

    Outlet Standard : British

    Outlet Standard Description : With Earthing Contact

    Protection Type : Current Protection, Thermal Protection

    Screwdriver Shape : Phillips Combined

    Service Life in Cycles : 5000 Cycles

    Surface Treatment : Untreated

    Wire Stripping Length : 12mm

    Outlet Standard Deviation : British

    Surface Finish : Matt

    Width : 86 mm

    Standards : UL 94, UL 1310, UL 498

    Weight : 109.0 g

    Connections - Terminals : Screw Terminal
