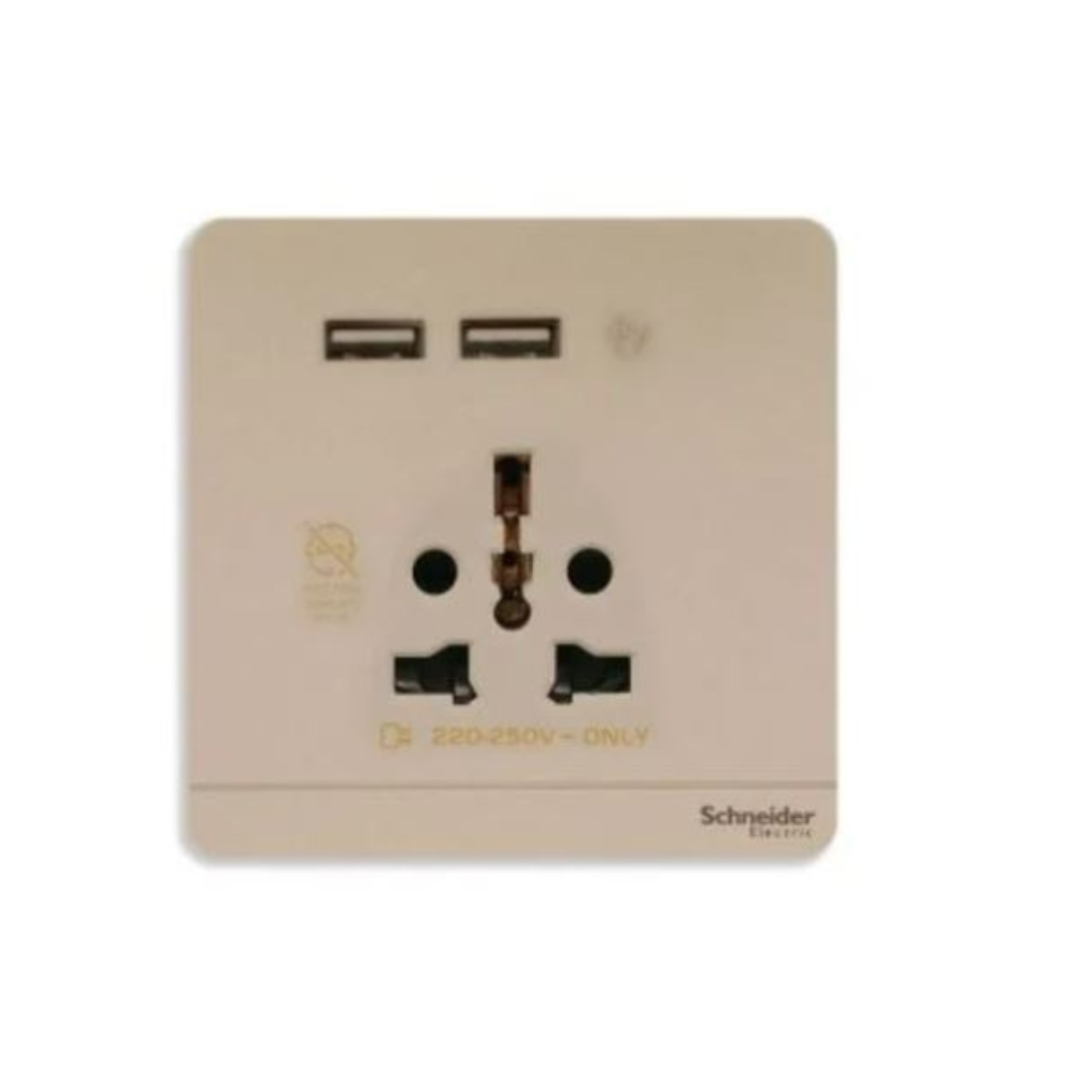

Schneider Electric AvatarOn 2 USB Charger + Socket-Outlet 16A 2P E8342616USB_WG - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : USB Charger With Socket
Description
Schneider Electric E8342616USB_WG USB Charger And 2 Socket-Outlet is a common combination of electrical accessories that can be used in homes and offices to provide USB charging capabilities and traditional sockets. It is a device for charging USB-powered devices such as smartphones, tablets, and other devices. It has two USB ports to connect the devices via USB cables. USB chargers are available in a variety of configurations, including mounted on the wall or as part of an outlet.
An electrical outlet is a device that provides power to household appliances and devices to plug them in. The outlet has two outlet openings (2P) that can handle a maximum current of 16A (amps). This is a standard setup for many home and commercial establishments.
Features
- Provide both USB charging capabilities and traditional power outlets.
- Its connection terminals are screw terminals.
- Ideally suited for new construction and refurbishment projects
- The configuration of this socket outlet is 2P.
- Unique Full Flat Design
| Brand | Schneider Electric |
| Item Name | USB Charger + 2 Socket-Outlet |
| Model | E8342616USB_WG |
| Clamping Connection Capacity | 1.5...4 mm² For Rigid Cable(s), 1.5...4 mm² For Stranded Cable(s), 1.5...4 mm² For Flexible Cable(s) |
| Color | White |
| Depth | 38.2mm |
| Device Mounting | Flush, Surface |
| Device Presentation | Complete Product |
| Fixing Mode | By Screws |
| Dielectric Strength | 2000V |
| Height | 86mm |
| IP Degree Of Protection | IP20 |
| Integrated Connection Type | 2 Socket-Outlet 250 V AC 16 A 50/60 Hz, 1 USB Type A 5 V DC 2.1 A |
| Material | PC (Polycarbonate): Grid Plate, PC (Polycarbonate): Surround |
| Number Of Cables | 2 |
| Number Of Terminals | 3 |
| Outlet Poles Configuration | 2P With Shutter |
| Outlet Standard Description | With Earthing Contact |
| Range | AvatarOn |
| Protection Type | Current Protection |
| Socket Number | 1 |
| Surface Finish | Glossy |
| Screwdriver Shape | Phillips Combined |
| Service Life In Cycles | 5000 Cycles |
| Surface Finish | Glossy |
| Surface Treatment | Untreated |
| Wire Stripping Length | 12mm |
| Outlet Standard Deviation | China |
| Ambient Air Temperature For Operation | -5-35 °C |
| Ambient Air Temperature For Storage | -20-60 °C |
| Standards | UL 498, UL 94, UL 1310 |
| Connections - Terminals | Screw Terminal |
| Width | 86 mm |
