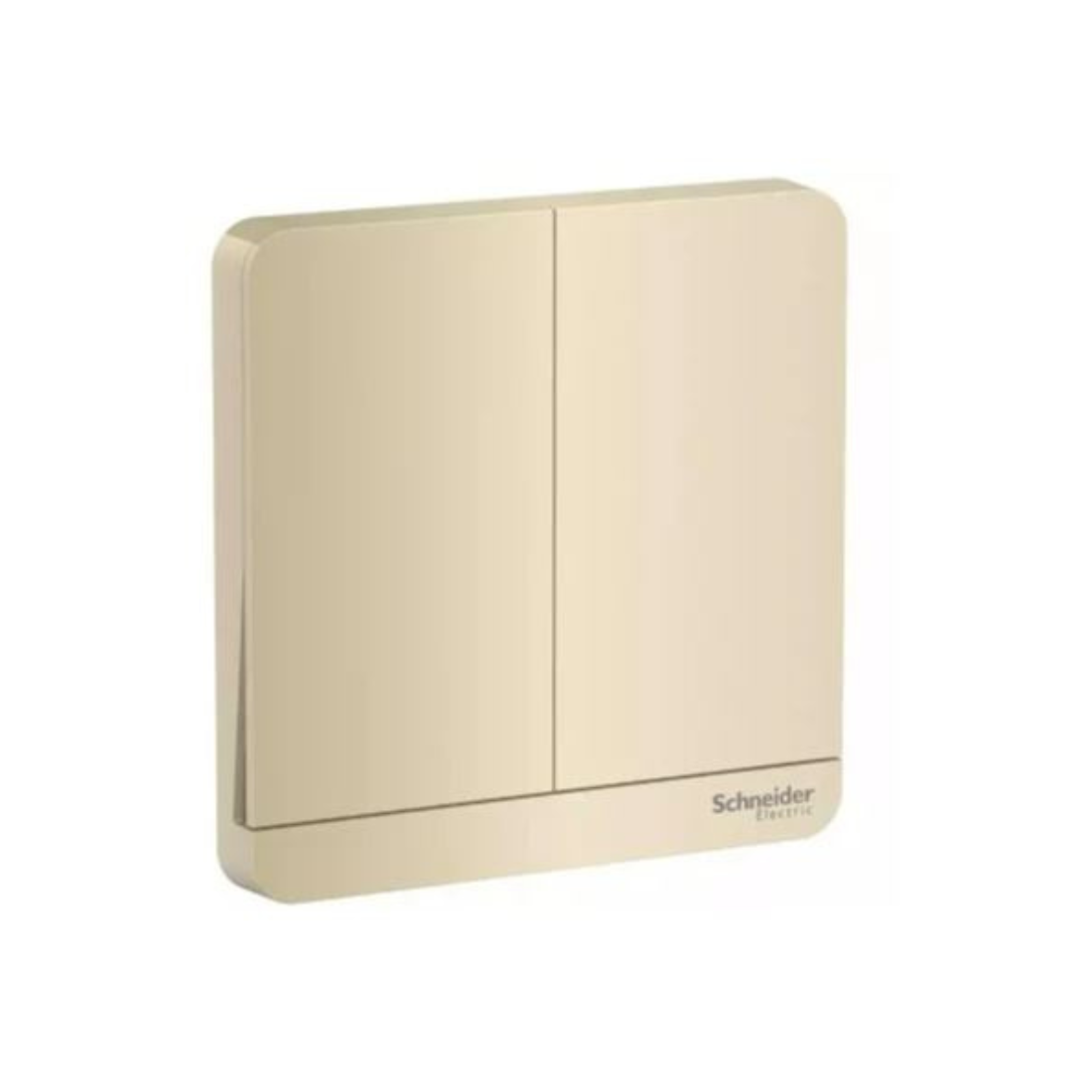

Schneider Electric AvatarOn 2 Switches 16AX 250V 2 Way E8332L2_WG - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8332L2_WG 2 Switches is a type of electrical switch commonly used in homes to control lighting from two different locations. 16AX rating implies that the switch can handle up to 16 Amperes of current. This is a standard rating for switches used in residential applications. 250V rating indicates that the switch is designed to handle a maximum voltage of 250 Volts. This is suitable for standard household electrical systems.
Schneider Electric E8332L2_WG 2 Switches are commonly used in electrical installations for controlling lights or other electrical devices. The 2-way designation suggests that it is capable of being used in a configuration where two switches can control the same light or load from different locations. Wine Gold is the color of the switch.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Switches |
| Model | E8332L2_WG |
| Color | Wine Gold |
| Load Type | Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator |
| Number Of Gangs | 2 Gangs |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 2 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 2 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | SS 227-1, MS IEC 60669-1, BS EN 60669-1, IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 97.0 g |
