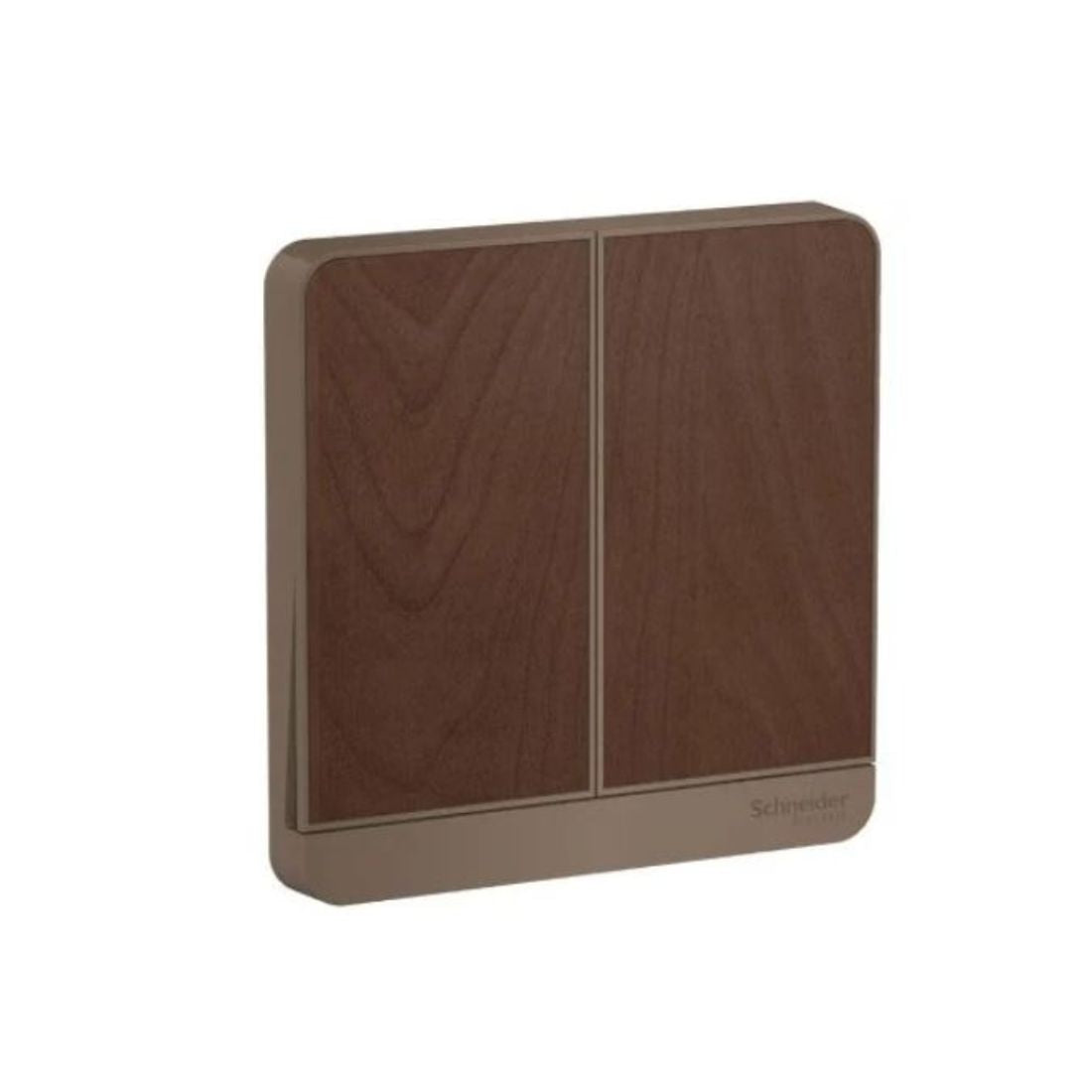

Schneider Electric AvatarOn 2 Switches 16AX 250V 2 Way E8332L2_WD - Wood
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8332L2_WD 2 Way 2 Switches typically indicate a setup where two switches control a single light or electrical fixture from different locations. The switch can be used in conjunction with another switch to control the same light or electrical device from two different locations. 16AX is the maximum current that the switch can handle under normal operating conditions. 250V is the maximum voltage the switch is rated for. It can handle up to 250 volts.
Schneider Electric E8332L2_WD 2 Way 2 Switches configuration is common in homes or offices to control a light or electrical device from different parts of a room or building.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Way 2 Switches |
| Model | E8332L2_WD |
| Color | Wood |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 2 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 2 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, IEC 60669-1, SS 227-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
