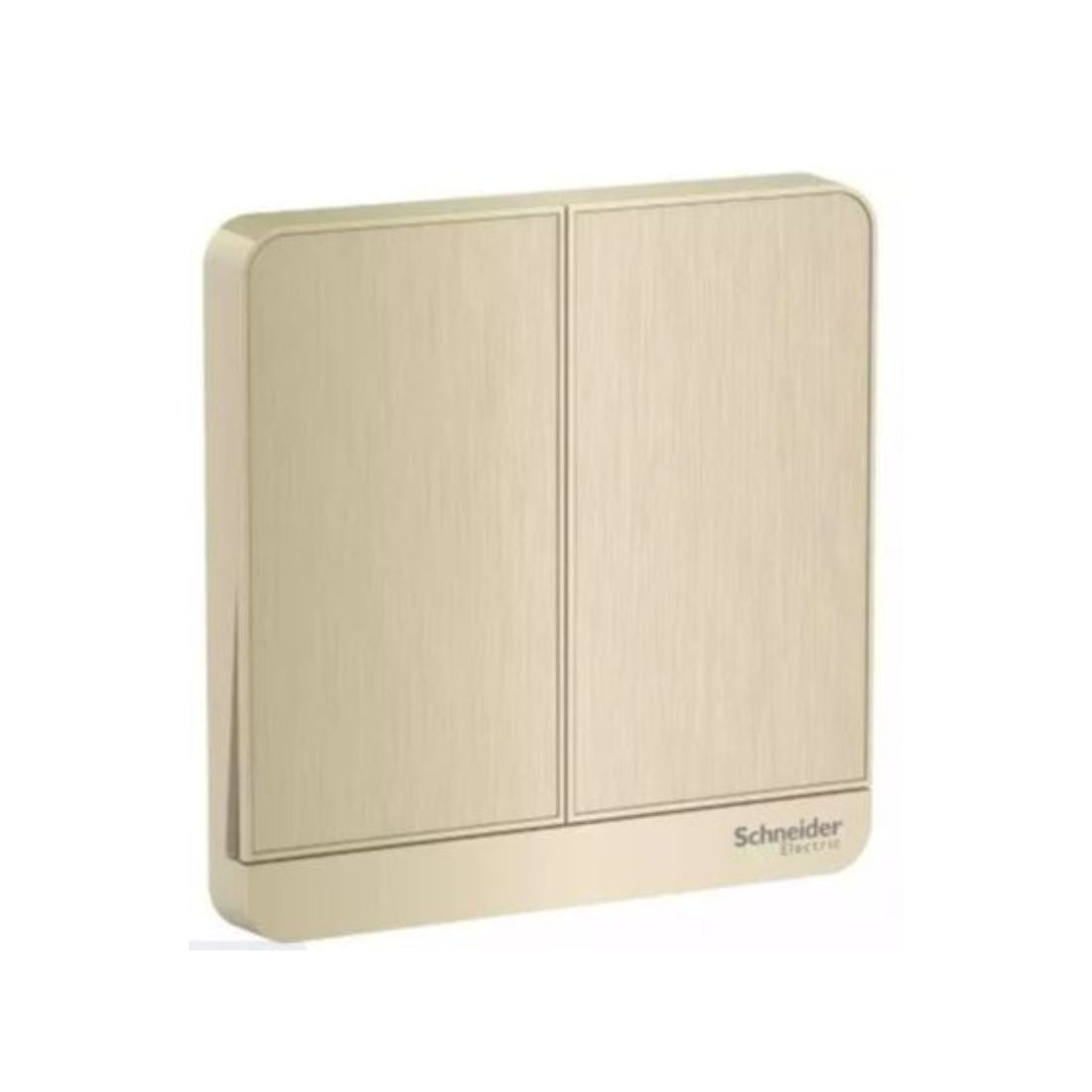

Schneider Electric AvatarOn 2 Switches 16AX 250V 2-Way E8332L2_GH - Metal Gold Hairline
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8332L2_GH 2 Switches is a type of electrical switch that is commonly used to control a single light fixture from two different locations. 16AX is the current rating of the switch. It can handle a maximum current of 16 amperes. 250V is the maximum voltage the switch is designed to handle. It can handle up to 250 volts. A 2-way switch is a type of electrical switch that allows control of a light or lights from two different locations.
Overall, Schneider Electric E8332L2_GH 2 Switches with a 16-ampere maximum current rating, designed for use with up to 250 volts, and they are 2-way switches with a metal gold hairline finish. These switches are commonly used in electrical installations in homes and commercial buildings.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Way 2 Switches |
| Model | E8332L2_GH |
| Color | Metal Gold Hairline |
| Load Type | Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator |
| Number Of Gangs | 2 Gangs |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 2 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 2 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 2-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, IEC 60669-1, BS EN 60669-1, SS 227-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 97.0g |
