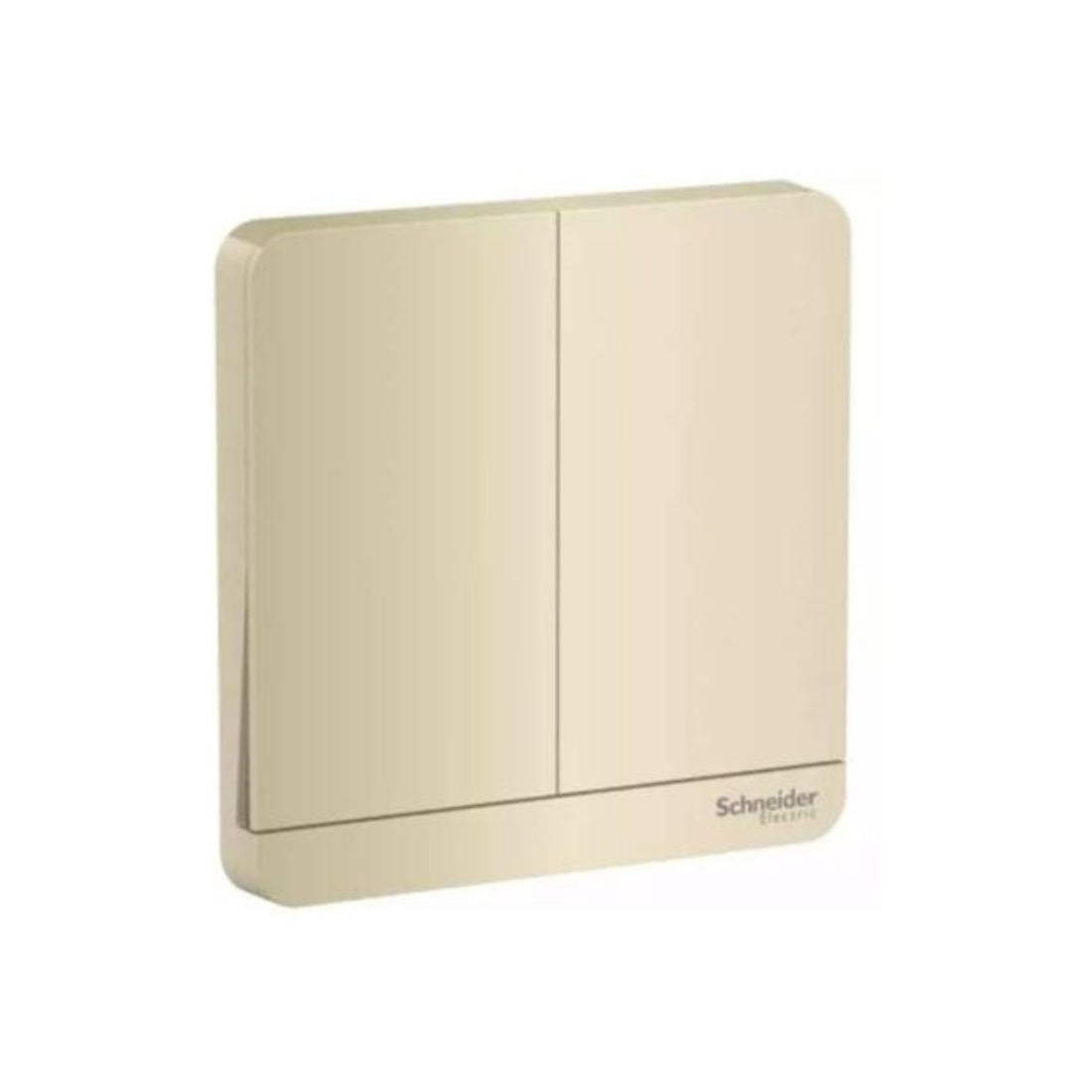

Schneider Electric AvatarOn 2 Switches 16AX 250V 1 Way E8332L1_WG Wine Gold in Dubai, UAE
Schneider Electric AvatarOn 2 Switches 16AX 250V 1 Way E8332L1_WG Wine Gold in Dubai, UAE

Schneider Electric AvatarOn 2 Switches 16AX 250V 1 Way E8332L1_WG - Wine Gold

Regular price AED 30.45
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switches
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8332L1_WG 2 Switches are commonly used in electrical installations to control the flow of electricity to a particular device or circuit. It is a single-pole switch, which is the most basic type of switch that controls one light or electrical device from one location. It contains two individual switches.

    16AX is the current rating of the switch. In this case, it can handle up to 16 Amperes of current. 250V is the maximum voltage the switch is designed to handle. Wine Gold is the color or finish of the switch.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : 2 Switches

    Model : E8332L1_WG

    Color : Wine Gold

    Load Type : Inductive, Incandescent Lamp, Fluorescent Lamp, Resistive

    Rated Current : 16 AX at 250 V AC 50/60 Hz

    Package1 Length*Width*Height : 8.6 cm x 8.6 cm x 3.4 cm

    Clamping Connection Capacity : 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s)

    Depth : 34.2mm

    Device Application : Control

    Device Mounting : Flush, Surface

    Height : 86mm

    Environmental Characteristic : UV Resistant

    IP Degree Of Protection : IP20

    Material : Polycarbonate: grid plate, polycarbonate: base, polycarbonate: dolly, polycarbonate: frame, polycarbonate + GF 20 %: actuator
    Number Of Gangs : 2 Gangs

    Maximum Ambient Air Temperature for Operation : 45 °C

    Number Of Gangs : 2 Gangs

    Operating Altitude : 2000 m

    Number Of Rocker : 2

    Range : AvatarOn

    Relative Humidity : 0-95 %

    Switch Function : 1-Pole 1-Way

    Width : 86 mm

    Connections - Terminals : Brass Terminal

    Standards : MS IEC 60669-1, IEC 60669-1, BS EN 60669-1, SS 227-1

    Environmental Characteristic : UV Resistant

    Weight : 93.0 g
