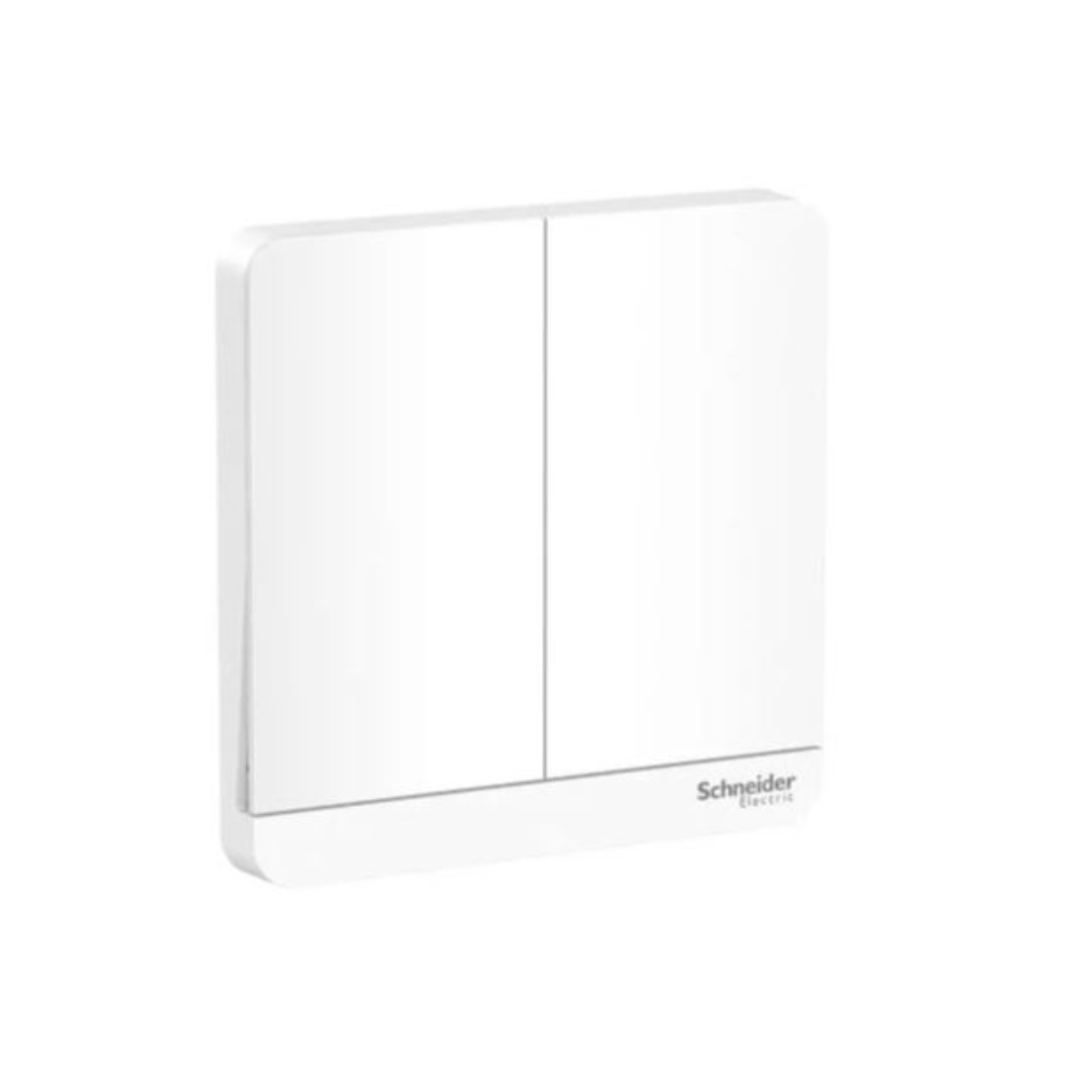

Schneider Electric AvatarOn 2 Switches 16AX 250V 1 Way E8332L1_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8332L1_WE 1 Way 2 Switches control a single light or electrical device from two different locations. It is a one-way switch, which means it can control a single light or device from one location. There are two switches included in one unit. This is commonly known as a "double-pole" switch.
16AX is the current rating or amperage the switch can handle. It is rated for 16 amperes. This is typically suitable for lighting circuits. 250V is the maximum voltage the switch is designed to handle. It can handle up to 250 volts. White is the color of the switch, which is a common choice for electrical fixtures.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Switches |
| Model | E8332L1_WE |
| Color | White |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 2 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 2 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, BS EN 60669-1, SS 227-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 93.0 g |
