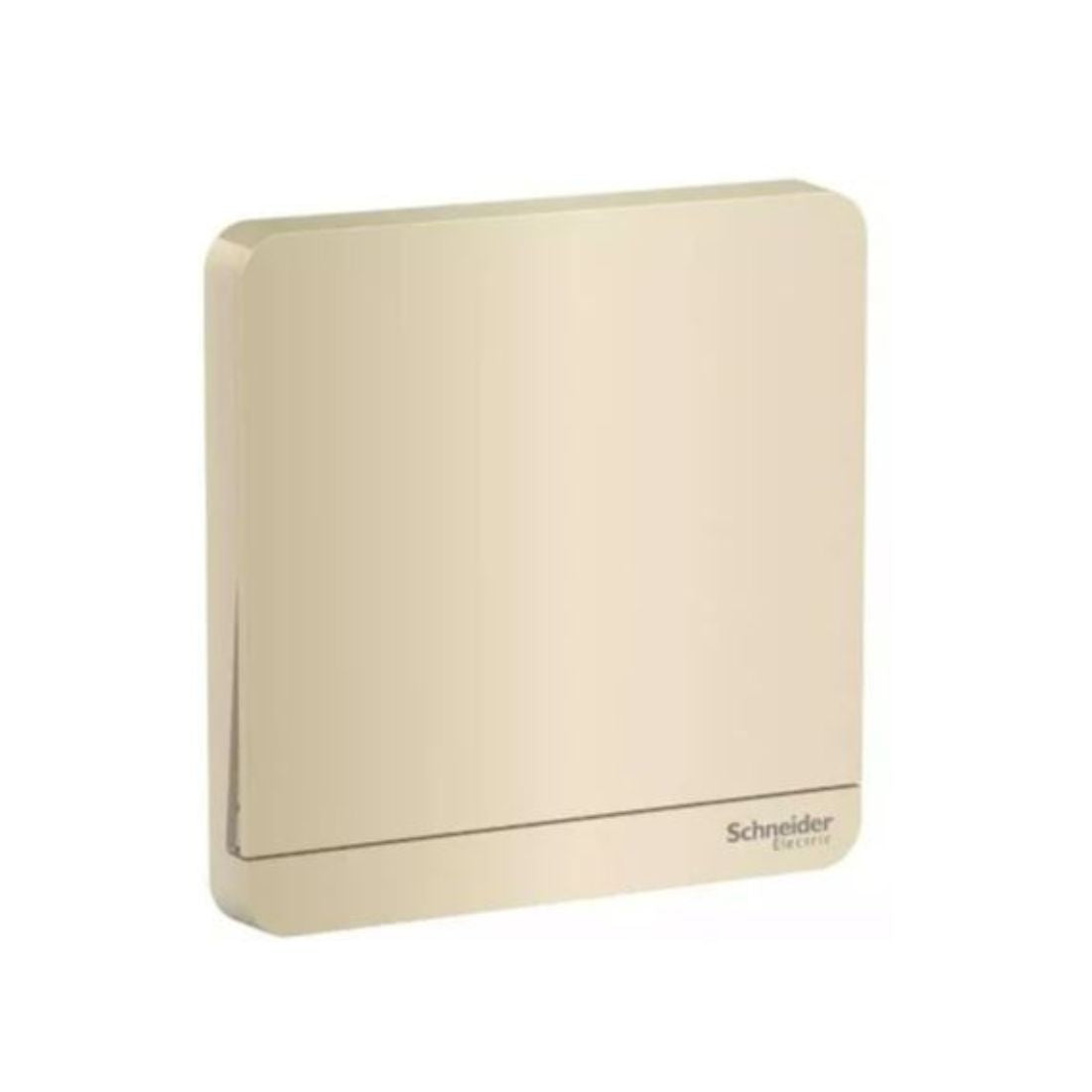

Schneider Electric AvatarOn 1 Way Switch 16AX 250V E8331L1_WG - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switch
Description
Schneider Electric E8331L1_WG 1 Way Switch is designed to control a single fixture or outlet from a single location. It can turn a light or appliance on and off from one switch. 16AX is the switch's amperage rating. It is rated for 16 amperes. This means it can handle devices or appliances that draw up to 16A of current. 250V is the voltage rating of the switch. It's designed to work with electrical systems that have a voltage of up to 250 volts. Wine Gold is the color of the switch.
In summary, Schneider Electric E8331L1_WG 1 Way Switch is a single-pole switch rated for up to 16 amperes and 250 volts, with a wine gold color or finish. This type of switch is commonly used in household electrical systems for controlling lights or other appliances.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8331L1_WG |
| Color | Wine Gold |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Depth | 34.2 mm |
| Device Application | Control |
| Device Mounting | Surface, Flush |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 1 Gang |
| Operating Altitude | 2000 m |
| Number Of Rocker | 1 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-pole 1-way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, SS 227-1, IEC 60669-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 81.0 g |
