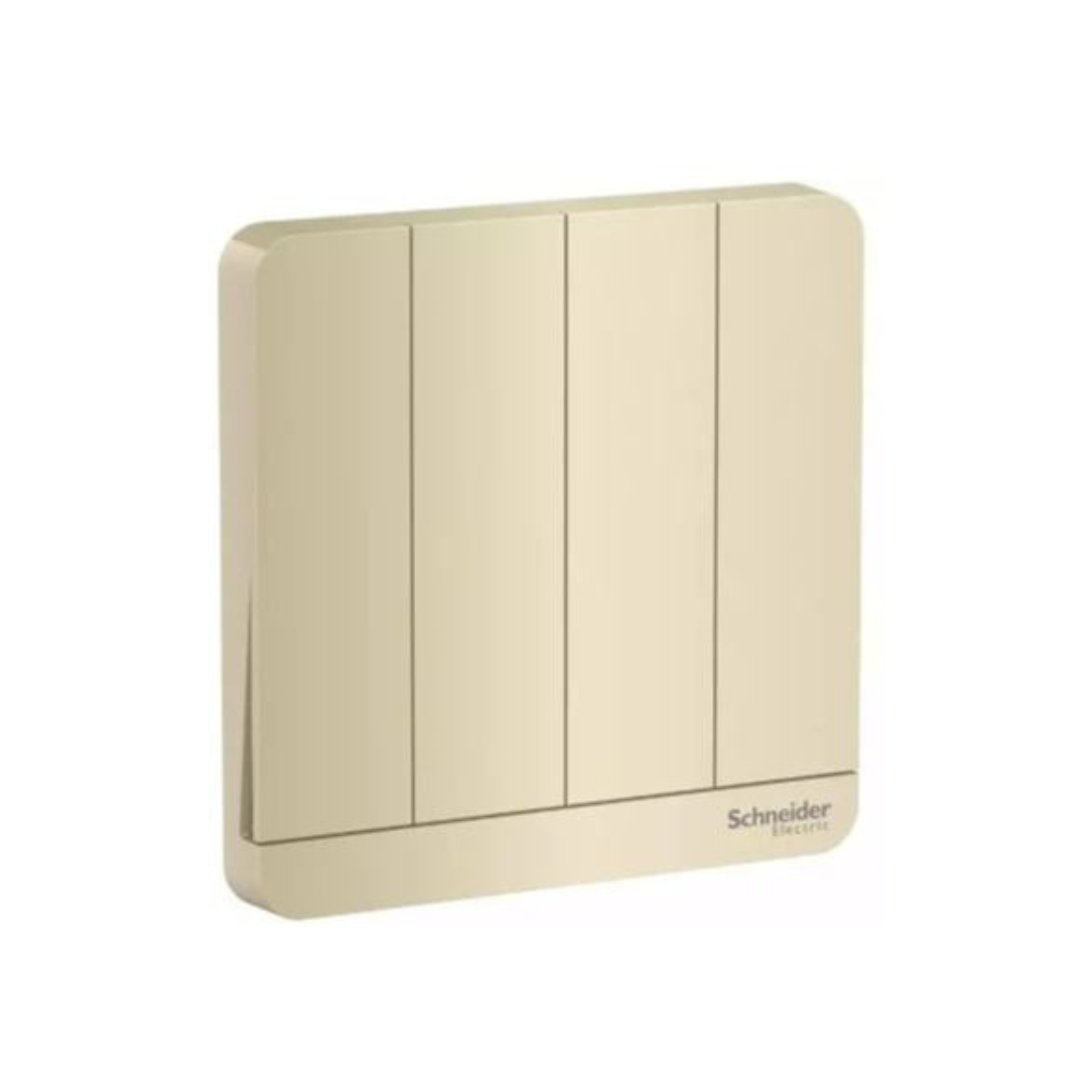

Schneider Electric AvatarOn 1 Way 4 Switches 16AX 250V E8334L1_WG - Wine Gold
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8334L1_WG 1-Way 4 Switches are designed as four separate switches, each controlling a single electrical fixture or set of fixtures. 16AX is the switch's current carrying capacity. It can handle up to 16 amperes of current. 250V is the maximum voltage the switch is rated for. It can safely handle up to 250 volts. Wine Gold is the color of the switch. It suggests a reddish-brown or deep-red hue.
Schneider Electric E8334L1_WG 1-Way 4 Switches are commonly used in residential or commercial settings to control lighting or other electrical devices.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8334L1_WG |
| Color | Wine Gold |
| Load Type | Incandescent lamp, fluorescent lamp, inductive, resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Height | 86mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 4 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 4 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | BS EN 60669-1, MS IEC 60669-1, SS 227-1, IEC 60669-1 |
| Weight | 132.0 g |
