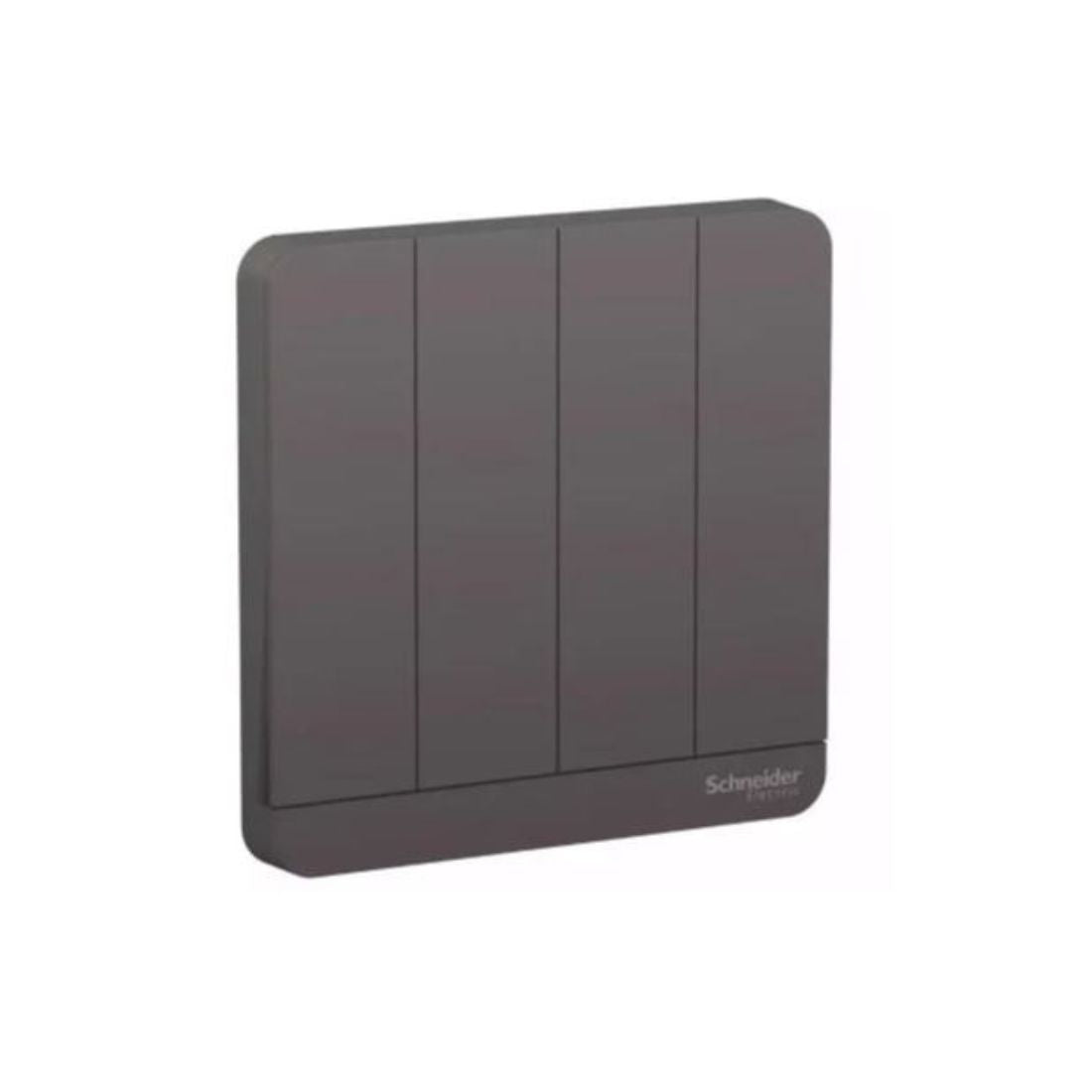

Schneider Electric AvatarOn 1 Way 4 Switches 16AX 250V E8334L1_DG - Dark Grey
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8334L1_DG 1-Way 4 Switches is a switch that controls a single light or electrical fixture from four different locations. 16AX is the current rating of the switch. It means that the switch is rated to handle a maximum current of 16 amperes. This is a common rating for switches used in household applications. 250V is the maximum voltage the switch can handle. In most households, the voltage is 220-240V, so this switch is compatible with standard residential electrical systems.
Overall, Schneider Electric E8334L1_DG 1-Way 4 Switches is a type of switch that can control a single light or fixture from four different locations. It's rated for a maximum current of 16 amperes and can handle voltages up to 250V. Additionally, it comes in a dark grey color.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | Switch |
| Model | E8334L1_DG |
| Color | Dark Grey |
| Load Type | Incandescent lamp, fluorescent lamp, inductive, resistive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Package1 Length*Width*Height | 8.5 cm x 8.5 cm x 4.5 cm |
| Clamping Connection Capacity | 3 x 2.5 mm² for solid cable(s), 3 x 2.5 mm² for stranded cable(s), 4 x 1.5 mm² for solid cable(s), 4 x 1.5 mm² for stranded cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Height | 86mm |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 4 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 4 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Local Signalling | With Light Indicator, LED |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, SS 227-1, MS IEC 60669-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 128.0 g |
