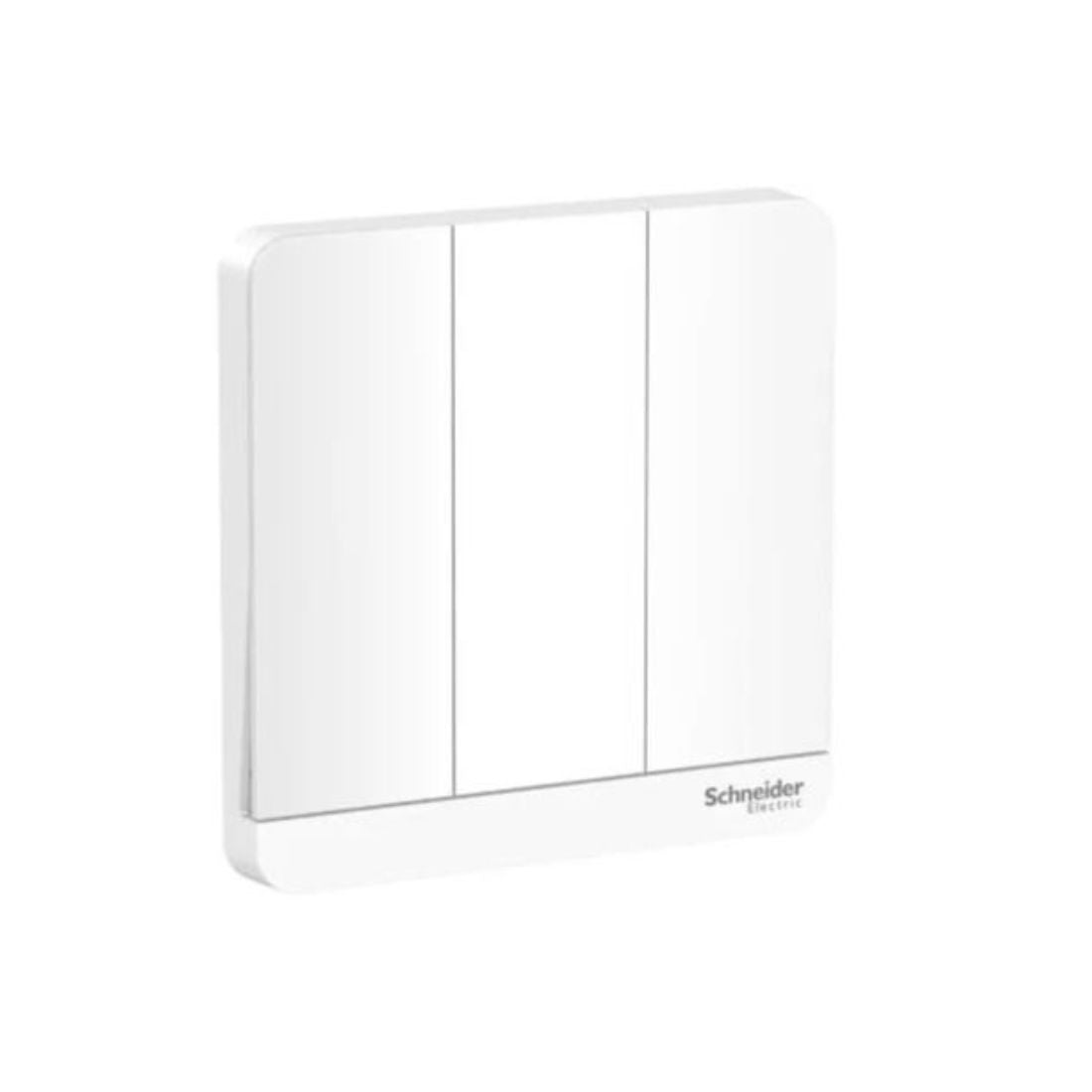

Schneider Electric AvatarOn 1 Way 3 Switches 16AX 250V E8333L1_WE - White
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8333L1_WE 1 Way 3 Switches control a single light or fixture from two different locations. The 1 Way 3 Switches have one light controlled by three switches. The 16AX, 250V is the electrical rating of the switches. 16AX is the current rating. It means the switch can handle up to 16 amperes of current. This is a common rating for switches in residential settings.
250V is the voltage rating. It means the switch is designed to operate with a maximum voltage of 250 volts. The White is the color of the switch, which is a common choice for switches in many regions
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 3 Switches |
| Model | E8333L1_WE |
| Color | White |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 3 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 3 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, SS 227-1, IEC 60669-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 114.0 g |
