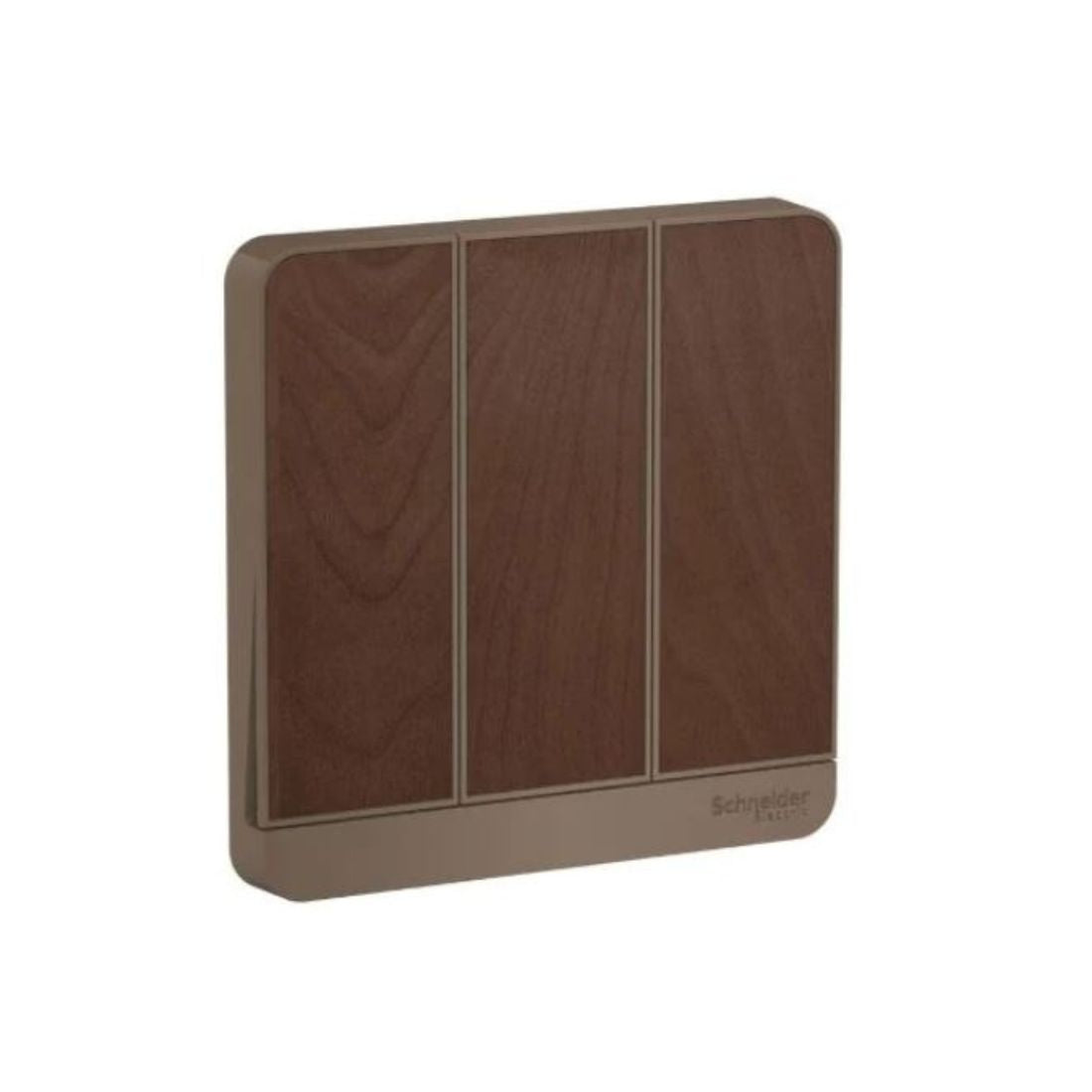

Schneider Electric AvatarOn 1 Way 3 Switches 16AX 250V E8333L1_WD Dark Wood in Dubai, UAE
Schneider Electric AvatarOn 1 Way 3 Switches 16AX 250V E8333L1_WD Dark Wood in Dubai, UAE

Schneider Electric AvatarOn 1 Way 3 Switches 16AX 250V E8333L1_WD - Dark Wood

Regular price AED 63.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Switches
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric E8333L1_WD 1 Way 3 Switches is a specific type of electrical switch used in households or commercial spaces. The switch can control a single light or electrical fixture from one location. There are three switches that can control the same light or electrical fixture from different locations.

    16AX is the current rating or capacity of the switch. It indicates that the switch is designed to handle a maximum current of 16 amperes. 250V is the voltage rating of the switch. It indicates that the switch is designed to handle a maximum voltage of 250 volts. Dark Wood is the finish of the switch plate or cover.

    Features
    • Screwless Design
    • Removable Faceplate without exposure to the electrical mechanism
    • Premium Quality Materials
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : 1 Way 3 Switches

    Model : E8333L1_WD

    Color : Dark Wood

    Load Type : Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive

    Rated Current : 16 AX at 250 V AC 50/60 Hz

    Clamping Connection Capacity : 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s)

    Depth : 34.2mm

    Device Application : Control

    Device Mounting : Flush, Surface

    Height : 86mm

    Environmental Characteristic : UV Resistant

    IP Degree Of Protection : IP20

    Material : Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator

    Maximum Ambient Air Temperature for Operation : 45 °C

    Number Of Gangs : 3 Gangs

    Operating Altitude : 2000 m

    Number Of Rocker : 3

    Range : AvatarOn

    Relative Humidity : 0-95 %

    Switch Function : 1-Pole 1-Way

    Width : 86 mm

    Connections - Terminals : Brass Terminal

    Standards : MS IEC 60669-1, IEC 60669-1, SS 227-1, BS EN 60669-1

    Environmental Characteristic : UV Resistant
