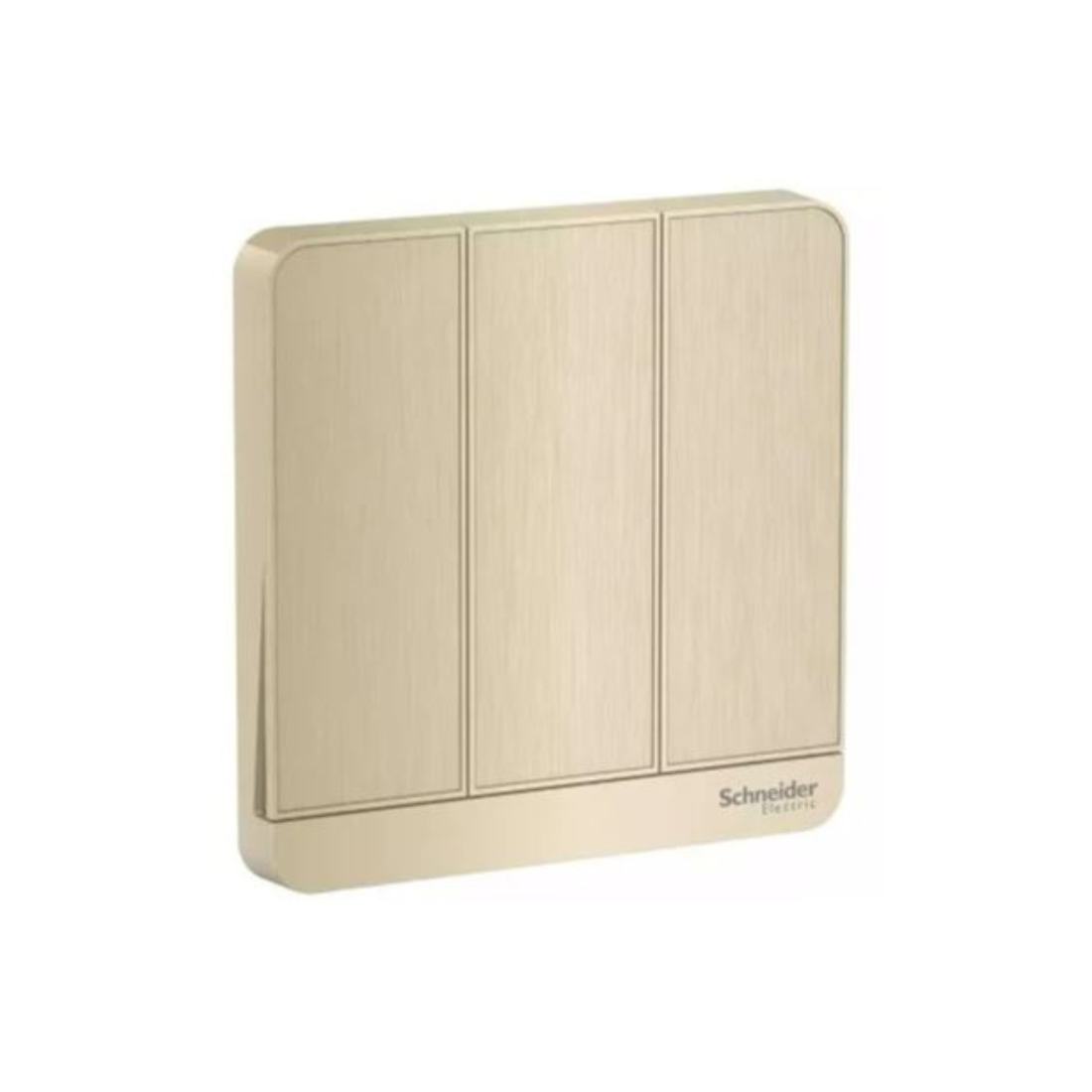

Schneider Electric AvatarOn 1 Way 3 Switches 16AX 250V E8333L1_GH - Metal Gold Hairline
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8333L1_GH 1 Way 3 Switches designed to control a single light or electrical load. 16AX is the current rating, which means the switches are rated for a maximum current of 16 amperes. This is a common rating for light switches. 250V is the voltage rating, which means the switches are designed to handle up to 250 volts. Metal Gold Hairline is the finish or color of the switches.
Schneider Electric E8333L1_GH 1 Way 3 Switches are commonly used in households or commercial spaces to control a single light or load from multiple locations, such as at the top and bottom of a staircase.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 3 Switches |
| Model | E8333L1_GH |
| Color | Metal Gold Hairline |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Package1 Length*Width*Height | 8.6 cm x 8.6 cm x 3.4 cm |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 3 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 3 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, BS EN 60669-1, SS 227-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 114.0 g |
