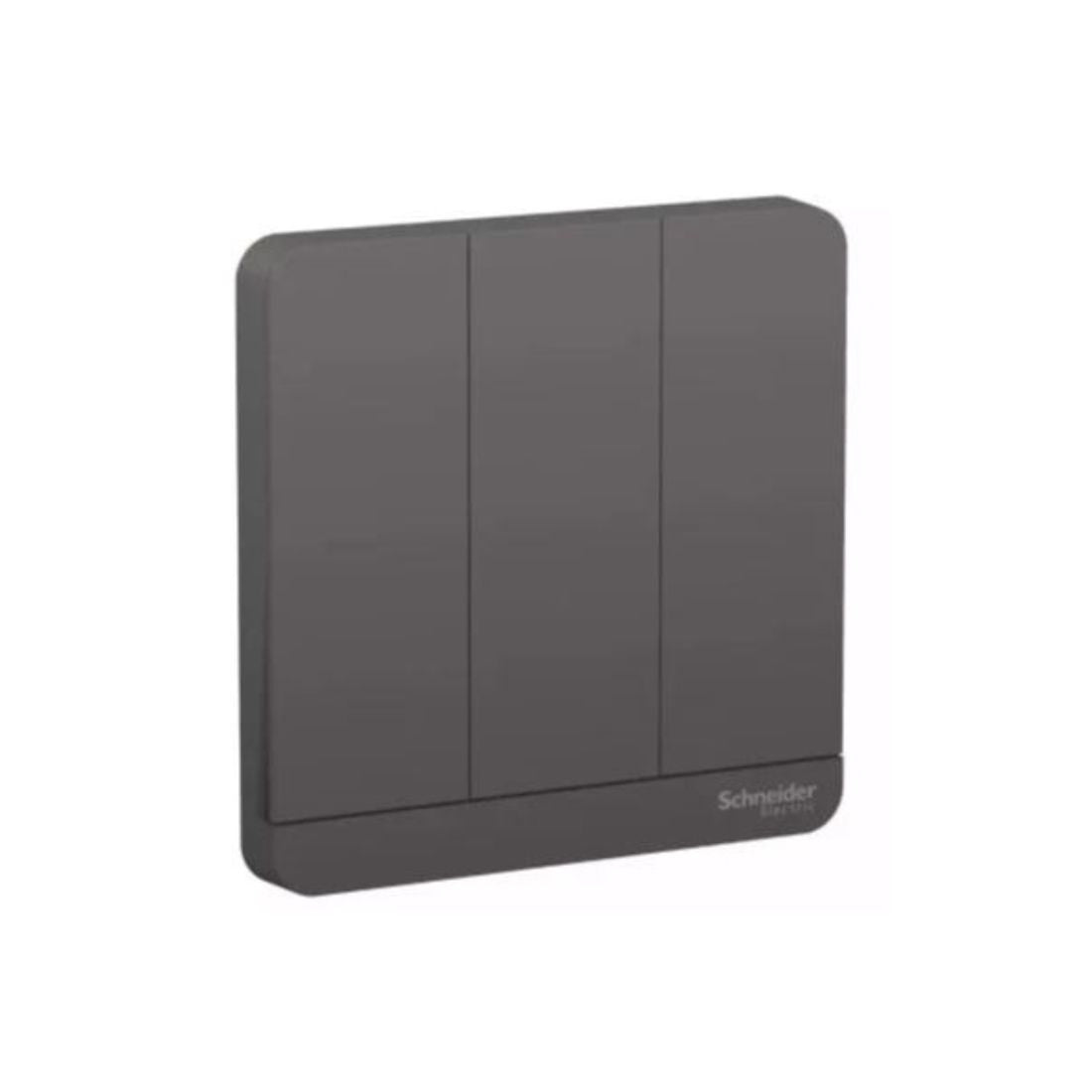

Schneider Electric AvatarOn 1 Way 3 Switches 16AX 250V E8333L1_DG - Dark Grey
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8333L1_DG 1 Way 3 Switches is a type of light switch used in electrical installations. The switch is a single-pole switch, which means it controls one light or set of lights from a single location. There are three switches that are part of the same unit or set. This might be a set of three individual switches that look like a single unit.
16AX is the current rating of the switch. It means the switch is rated for up to 16 amperes. 250V is the voltage rating of the switch. It is designed to handle up to 250 volts. Dark Grey is the color of the switch, indicating that it is likely finished or coated in a dark grey material.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 3 Switches |
| Model | E8333L1_DG |
| Color | Dark Grey |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Package1 Length*Width*Height | 8.5 cm x 8.5 cm x 4.5 cm |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 3 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 3 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | MS IEC 60669-1, SS 227-1, IEC 60669-1, BS EN 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 110.0 g |
