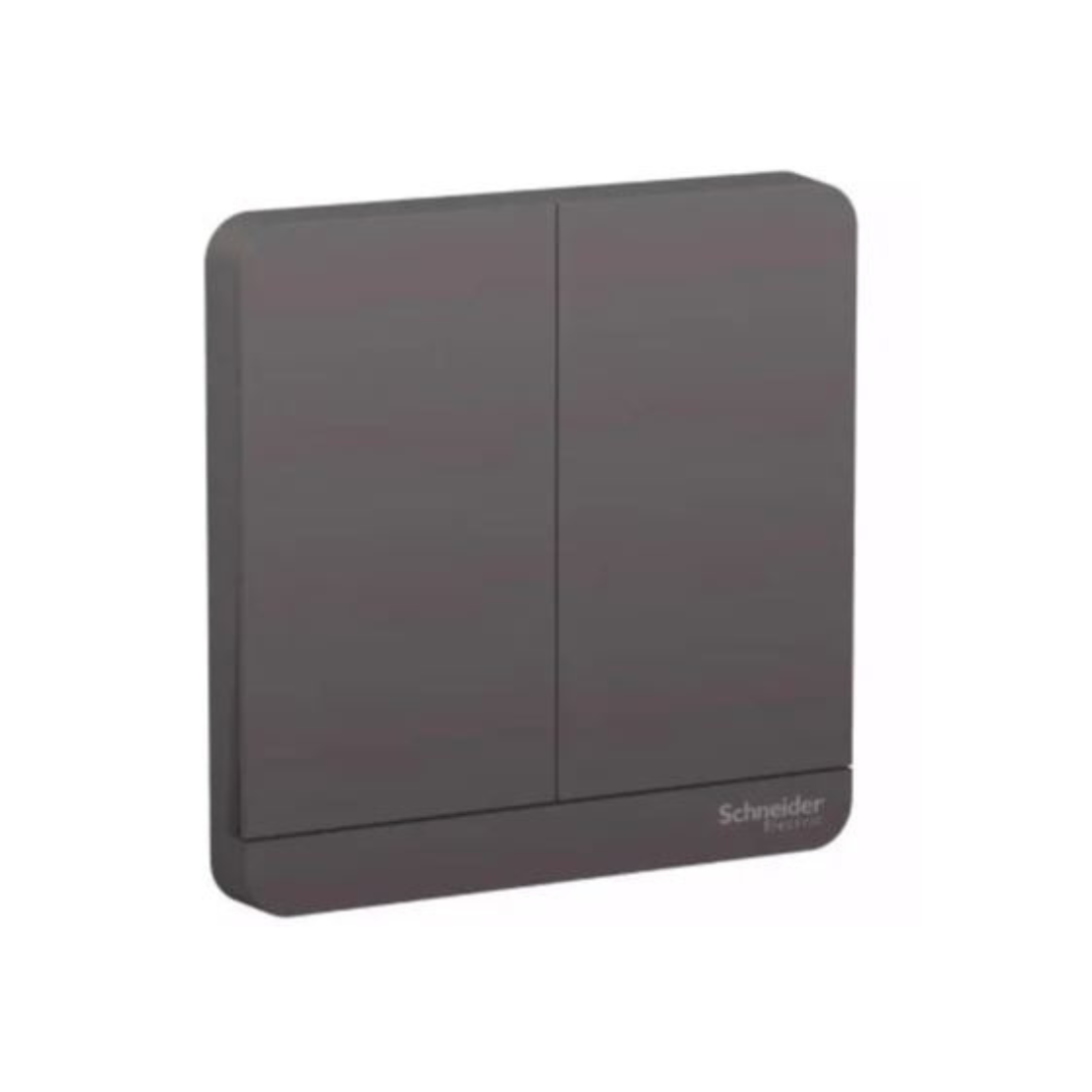

Schneider Electric AvatarOn 1 Way 2 Switches 16AX 250V E8332L1_DG - Dark Grey
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Switches
Description
Schneider Electric E8332L1_DG 1 Way 2 Switches in electrical wiring that allow light or appliance to be controlled from two different locations. This is commonly used in situations where a single light fixture or appliance needs to be operated from two different switch points.
16AX is the current carrying capacity of the switch. It can handle up to 16 amperes of current. This is a common rating for switches used in household applications. 250V rating specifies the maximum voltage the switch is designed to handle, which is typical for standard household electrical systems. Dark Grey is the color of the switch, suggesting that it has a dark grey finish.
Features
- Screwless Design
- Removable Faceplate without exposure to the electrical mechanism
- Premium Quality Materials
| Brand | Schneider Electric |
| Item Name | 2 Switches |
| Model | E8332L1_DG |
| Color | Dark Grey |
| Load Type | Fluorescent Lamp, Incandescent Lamp, Resistive, Inductive |
| Rated Current | 16 AX at 250 V AC 50/60 Hz |
| Clamping Connection Capacity | 3 x 2.5 mm² For Solid Cable(s), 3 x 2.5 mm² For Stranded Cable(s), 4 x 1.5 mm² For Solid Cables), 4 x 1.5 mm² For Stranded Cable(s) |
| Depth | 34.2mm |
| Device Application | Control |
| Device Mounting | Flush, Surface |
| Height | 86mm |
| Environmental Characteristic | UV Resistant |
| IP Degree Of Protection | IP20 |
| Material | Polycarbonate: Grid Plate, Polycarbonate: Base, Polycarbonate: Dolly, Polycarbonate: Frame, Polycarbonate + GF 20 %: Actuator |
| Maximum Ambient Air Temperature for Operation | 45 °C |
| Number Of Gangs | 2 Gangs |
| Operating Altitude | 2000 m |
| Number Of Rocker | 2 |
| Range | AvatarOn |
| Relative Humidity | 0-95 % |
| Switch Function | 1-Pole 1-Way |
| Width | 86 mm |
| Connections - Terminals | Brass Terminal |
| Standards | IEC 60669-1, BS EN 60669-1, SS 227-1, MS IEC 60669-1 |
| Environmental Characteristic | UV Resistant |
| Weight | 93.0 g |
