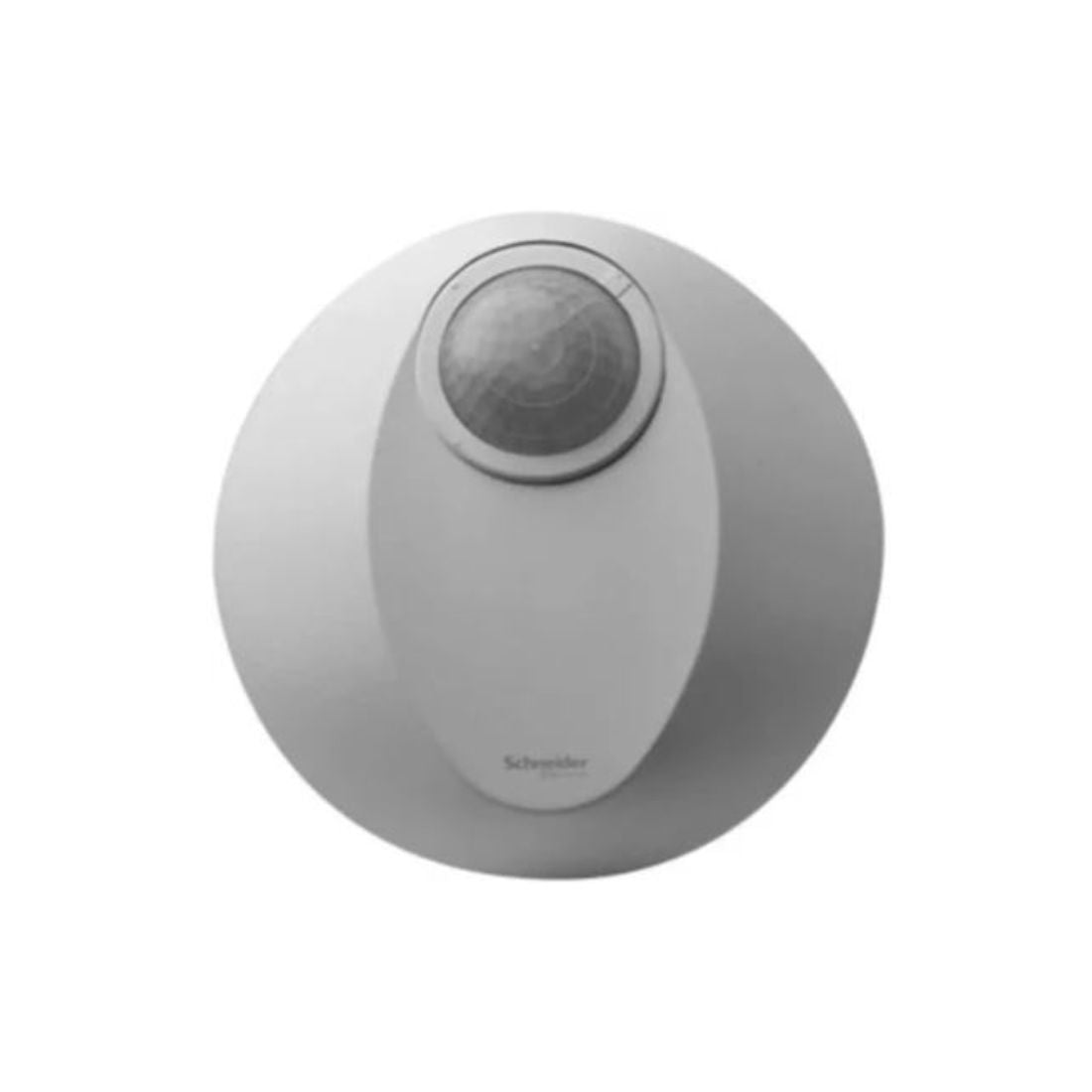

Schneider Electric ARGUS Surface Mount Single-Load PIR Occupancy Sensor 360 Degree SAE-UE-MS-CSBWE
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Sold by: Marketplace
Brand : Schneider Electric
Type : Occupancy Sensor
Description
Schneider Electric SAE-UE-MS-CSBWE Surface Mount Single-Load PIR Occupancy Sensor is a type of motion sensor commonly used in buildings for energy conservation and security purposes. The sensor is designed to be mounted on the surface of a wall or ceiling, as opposed to being recessed into it.
The sensor is designed to control a single electrical load. PIR is the technology used in these sensors. PIR sensors detect the infrared radiation emitted or reflected by objects in their field of view. A 360-degree sensor can detect motion in all directions around it, providing complete coverage in the space where it's installed.
Overall, Schneider Electric SAE-UE-MS-CSBWE Surface Mount Single-Load PIR Occupancy Sensor is often used in spaces like offices, restrooms, hallways, and other areas where there may be intermittent occupancy.
Features
- PIR technology is used
- Control a single electrical load
- It is very convenient, comprehensive, and intelligent
- Easy to install
- Detection Angle-360
| Brand | Schneider Electric |
| Item Name | Occupancy Sensor |
| Model | SAE-UE-MS-CSBWE |
| Load Type | Halogen lamp <= 1000 VA, energy saving lamp <= 80 VA, incandescent lamp <= 2000 W, low voltage halogen lamp <= 1000 VA, fluorescent lamp 100 µF <= 900 VA |
| Package1 Length*Width*Height | 1.000 cm x 1.000 cm x 1.000 cm |
| Ambient Air Temperature For Operation | 0-45 °C |
| Device Mounting | Surface |
| Detection Angle | 360° |
| Device Application | Lighting |
| Depth | 42.5 mm |
| Electrical Shock Protection Class | Class II |
| IP Degree of Protection | IP40 |
| Mounting Height | 2-3 m |
| Mounting Support | Ceiling |
| Diameter | 121.5 mm |
| Presence Detection Area PIR | 360°, 7 m |
| Range | ARGUS |
| Relative Voltage | 230-230 V +/- 10 % AC 50/60 Hz |
| Standards | EN 60669-1, EN 60669-2-1 |
| Ambient Air Temperature For Operation | 0-45 °C |
| Weight | 0.280 kg |
